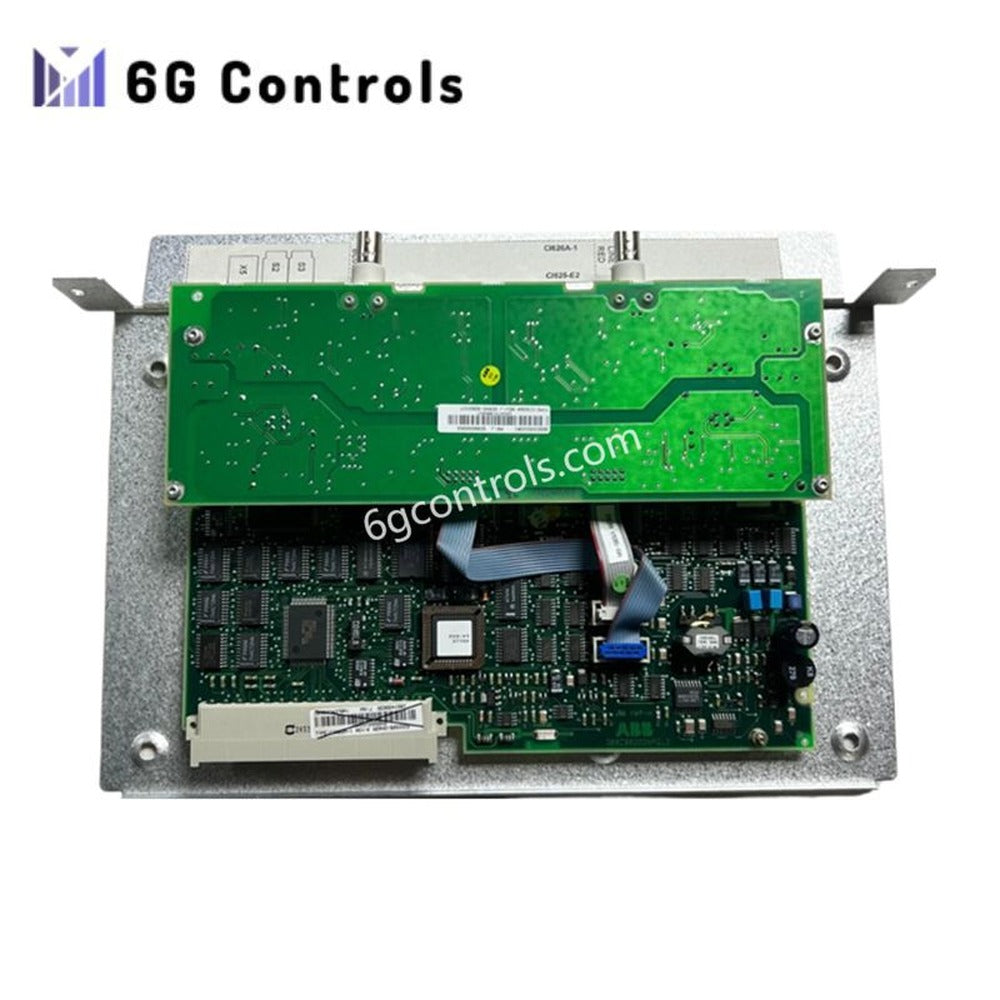

ABB CI626A 3BSE005023R1 Bus Administrator Board

Overview

The ABB CI626A 3BSE005023R1 is a Bus Administrator Board for ABB’s S800 I/O and Advant OCS control systems. It manages high-speed communication between distributed I/O modules and DCS controllers. Additionally, it improves system scalability, ensures reliable data exchange, and provides real-time diagnostics in demanding environments.

Technical Specifications

• Model: CI626A
• Part Number: 3BSE005023R1
• Function: Bus Administrator Board for S800 I/O and Advant OCS systems
• Communication Protocols: RS-485, Modbus RTU (system dependent)
• System Compatibility: Advant Controller 410, 450, and S800 I/O
• Hot-Swap Support: Yes, replace modules without system shutdown
• Diagnostic Features: Real-time fault detection and status monitoring
• Mounting Type: DIN rail or panel-mounted, depending on system configuration
• Operating Temperature: –20°C to +60°C
• Storage Temperature: –40°C to +85°C
• Humidity Tolerance: Up to 95% RH, non-condensing
• Shock & Vibration Resistance: Complies with IEC 60255-21 standards
• Power Supply: 24V DC
• Enclosure: Industrial-grade casing with EMI shielding
