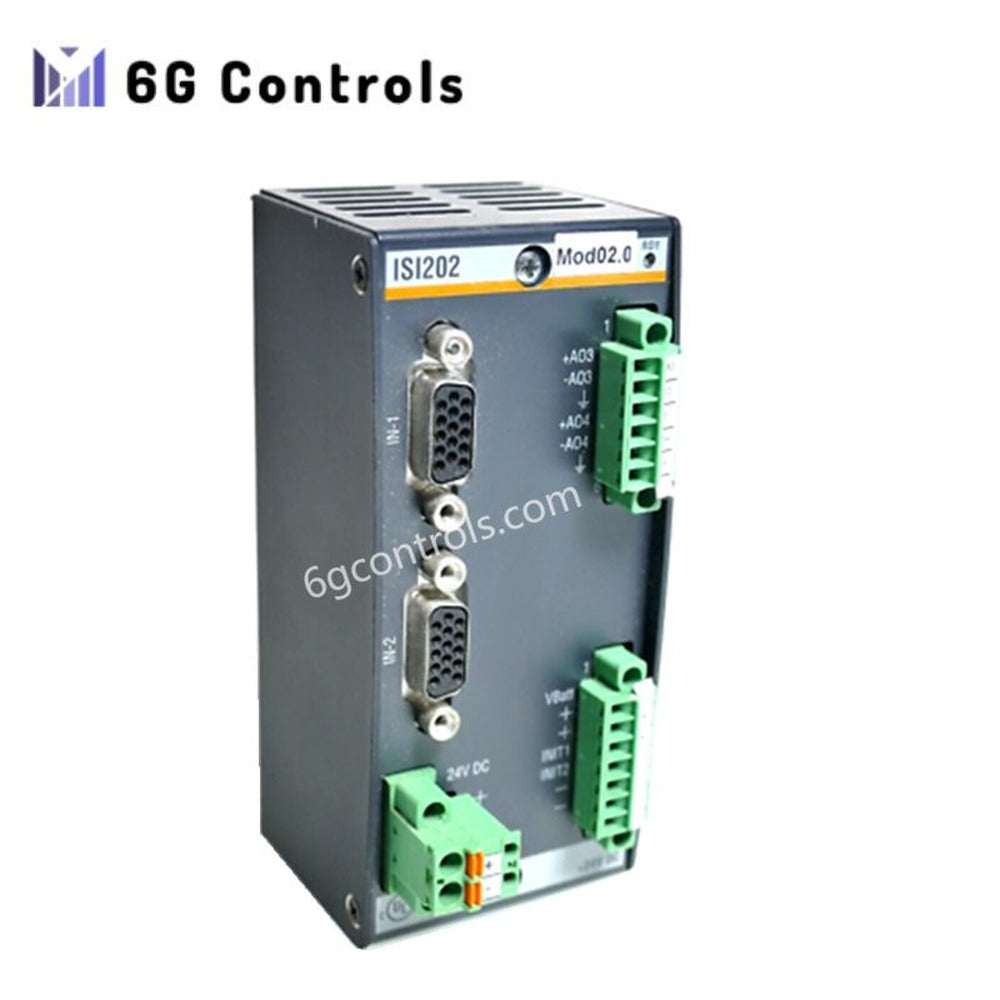

Bachmann ISI202 Encoder Interface Module High Quality

Overview

The Bachmann ISI202 is an advanced encoder interface module designed for precise position acquisition and control in various industrial automation applications. It supports both incremental and SSI encoders and features a high-resolution 32-bit counter. With its flexible analog and digital inputs and outputs, it is well-suited for motion control, robotics, material handling, and general automation tasks.

Technical Specifications

• Manufacturer: Bachmann
• Product No.: ISI202
• Type: Encoder Interface Module, Positioning Module
• Encoder Inputs: 2 channels (incremental and SSI)
• Counter Resolution: 32-bit
• Output Voltage Range: +5 V to +15 V (selectable with jumper)
• Output Voltage: ±10 V
• Output Current: Max. ±2 mA
• Connection Type: RS422 Level
• Input Types: INC/A, INC/B/N, Position, Gate Time, Period, Velocity
• Encoder Supply Voltage: 5V, 15V, 24V
• Analog Outputs: 2x Out ±10V, 14-bit, 0.025%, 40µs, Synchronized
• Weight: 0.99 lbs
