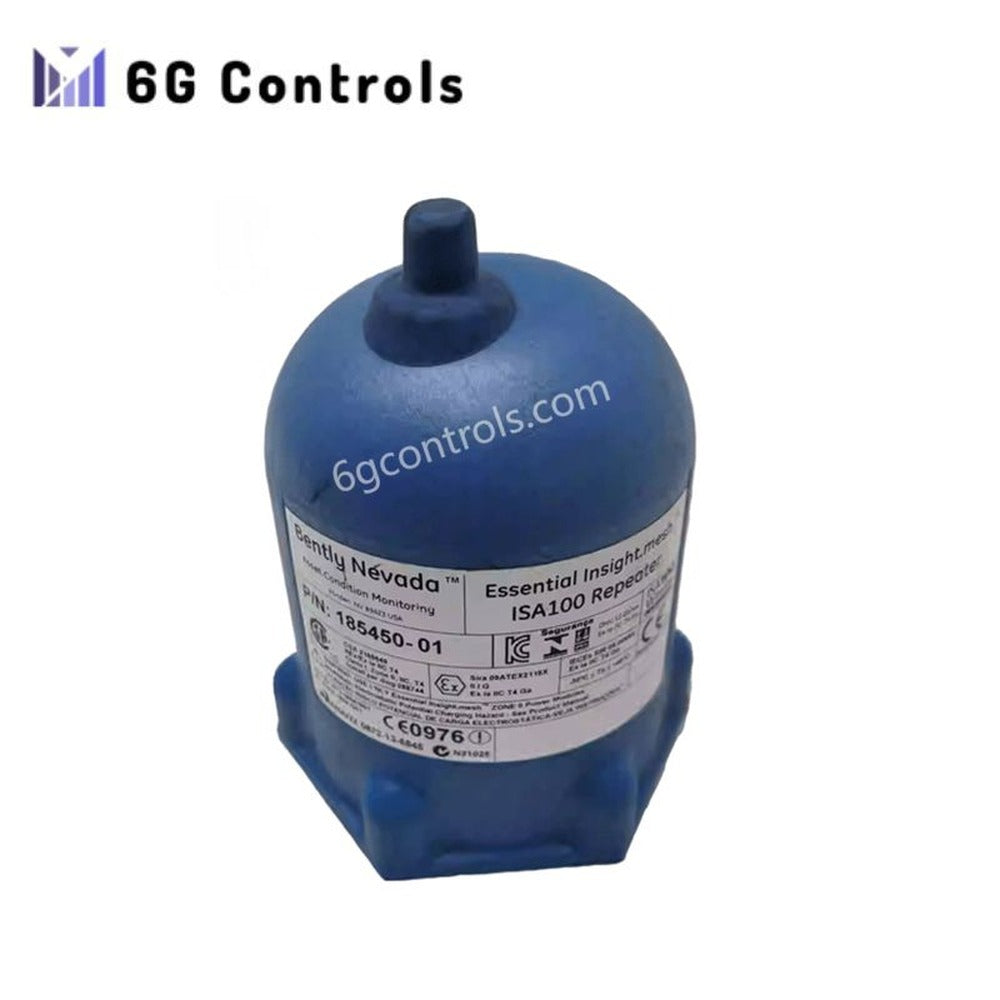

Bently Nevada 185450-01 Wireless Repeater Module

Overview

The Bently Nevada 185450-01 is a wireless repeater module in the Essential Insight.mesh™ system. It extends and strengthens the wireless network. The device uses the ISA100.11a industrial protocol, ensuring reliable communication across industrial environments.

Technical Specifications

• Model Number: 185450-01
• Product Type: Wireless Repeater
• Wireless Protocol: ISA100.11a (IEC 62734 compliant)
• Frequency Band: 2.4 GHz ISM
• Transmit Power: Up to +20 dBm
• Receiver Sensitivity: –100 dBm typical
• Power Supply: 24 VDC
• Power Consumption: ≤ 2.5 W
• Enclosure Rating: IP30 standard; optional IP65 kit available
• Operating Temperature: –20°C to +60°C (–4°F to +140°F)
• Storage Temperature: –40°C to +85°C (–40°F to +185°F)
• Humidity Range: Up to 95% RH, non-condensing
• Dimensions: 33 × 25 × 4 cm
• Weight: 0.5 kg
