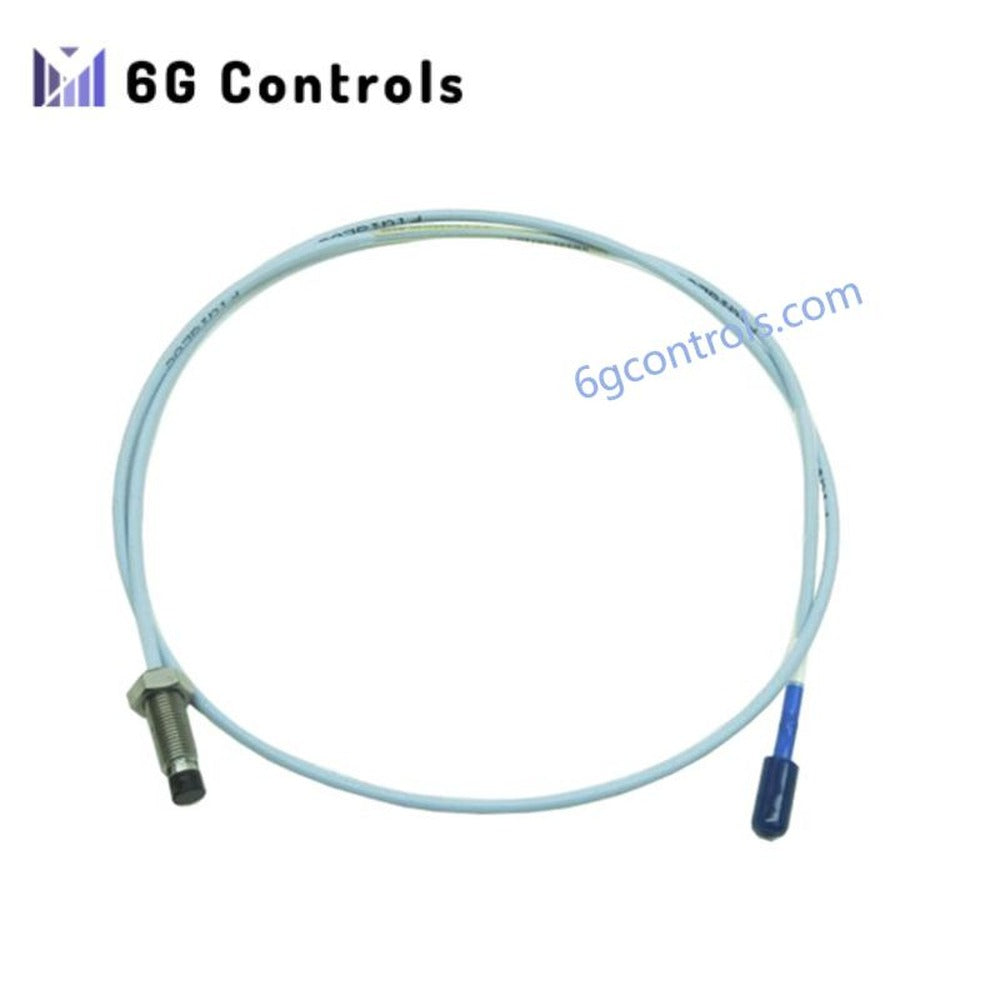

Bently Nevada 330901-00-41-05-02-CN Proximity Probe

Overview

The Bently Nevada 330901-00-41-05-02-CN is a high-precision 8 mm proximity probe, designed for non-contact measurement of shaft displacement and vibration in industrial rotating machinery. Its rugged construction ensures reliable performance in harsh operating environments, while the miniature coaxial ClickLoc connector provides secure and easy installation. This probe is an essential component of the 3300 XL Proximity Transducer System, enabling continuous machinery monitoring and predictive maintenance.

Functional Highlights

• Provides accurate, non-contact measurement of shaft position and vibration relative to the probe tip.
• Integrates seamlessly with Proximitor® sensors and extension cables to form a complete monitoring system.
• Rugged design withstands high temperatures and industrial stresses for long-term reliability.
• Miniature ClickLoc connector prevents accidental disconnection and simplifies installation.
• Ensures continuous machine protection, helping prevent unplanned downtime and costly repairs.

Technical Specifications

• Probe Tip Diameter: 8 mm
• Probe Length: 41 mm
• Thread Size: M10 × 1
• Cable Length: 0.5 m
• Connector Type: Miniature coaxial ClickLoc
• Nominal Range: 2.0 mm (80 mils)
• Linear Range: 1.6 mm (63 mils), 0.25–2.10 mm
• Scale Factor: 7.87 V/mm (200 mV/mil)
• Frequency Response: 0–10 kHz (±3 dB)
• Operating Temperature: –51 °C to +177 °C
• Weight: 0.1 kg

Typical Applications

• Monitoring turbines, compressors, pumps, and motors in industrial plants.
• Continuous shaft vibration and displacement measurement for predictive maintenance.
• Integration into 3300 XL Proximity Transducer Systems for reliable machinery protection.
• Ideal for applications requiring precise monitoring under extreme temperature and environmental conditions.

FAQ

Q: Can this probe operate in extreme temperatures? A: Yes, it functions reliably from –51 °C to +177 °C, suitable for harsh industrial conditions.

Q: What systems is it compatible with? A: It works with Bently Nevada 3300 XL Proximitor® sensors and standard extension cables.

Q: How is the connector secured? A: The ClickLoc connector locks in place, preventing accidental disconnection during operation.

Q: What maintenance is required? A: Minimal maintenance is needed; periodic inspection ensures optimal performance.
