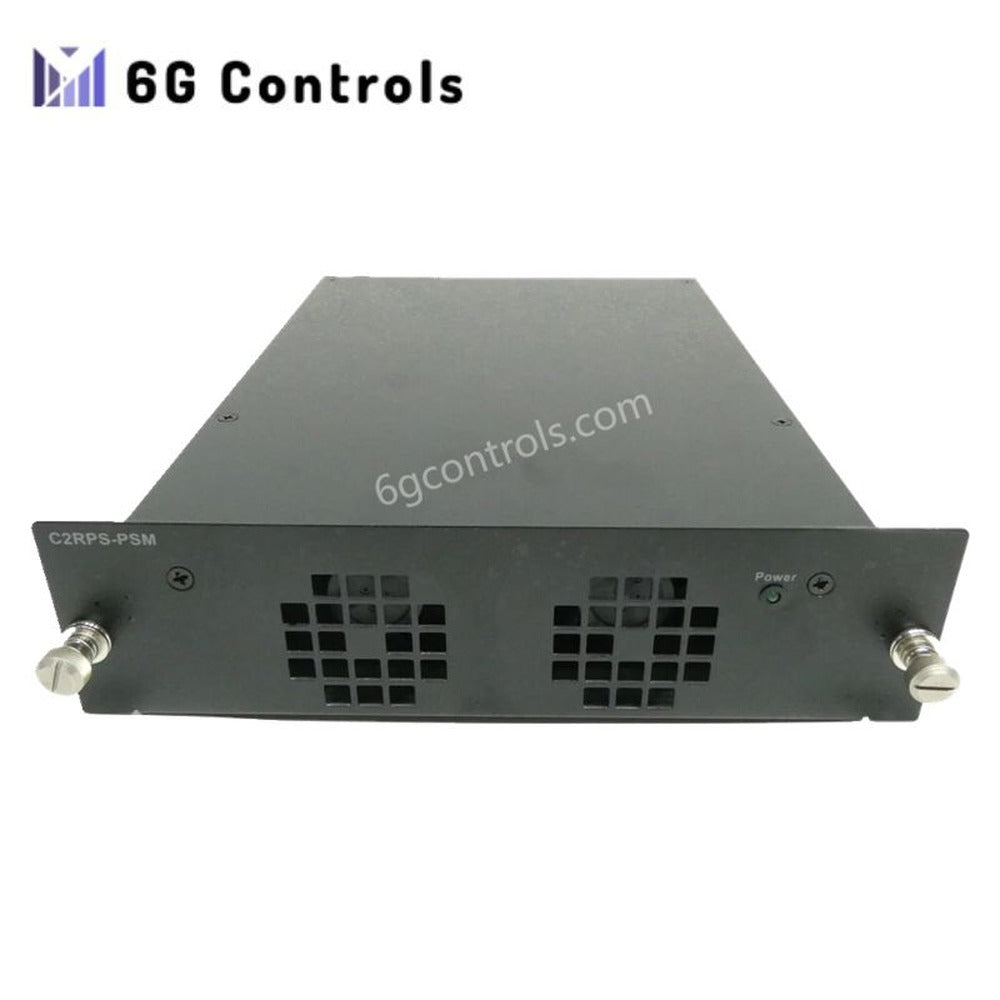

FOXBORO C2RPS-PSM Redundant Power Supply Module

Overview

The FOXBORO C2RPS-PSM is a redundant power supply module designed for SecureStack C2 Ethernet switches. Originally developed by Enterasys and now branded under Foxboro (Schneider Electric), it ensures high-availability power in industrial and enterprise networks. The module features hot-swappable capability, enabling seamless replacement without interrupting switch operation. Its high-efficiency AC-DC conversion and rugged design make it ideal for mission-critical control systems.

Technical Specifications

Model: C2RPS-PSM Manufacturer: FOXBORO

Electrical

• Input Voltage Range: 85–264 VAC
• Input Frequency: 47–63 Hz
• Output Voltage: 12 VDC
• Output Current: 1.0 A (min) to 8.5 A or 13.0 A (max)
• Max Output Power: 102 W or 156 W continuous

Physical

• Dimensions: 19.6 × 5.2 × 25.7 cm
• Net Weight: 1.75 kg
• Shipping Weight: Up to 4.26 kg (9.4 lbs)
• Mounting: 19-inch rack-mountable

Reliability

• MTBF: 300,000 hours
• Redundancy: Yes, with hot-swappable design

Additional Information

• Associated Part Number: P0973BP
• Country of Origin: United States
• Application: Converts AC to 12 VDC for control systems with redundancy
