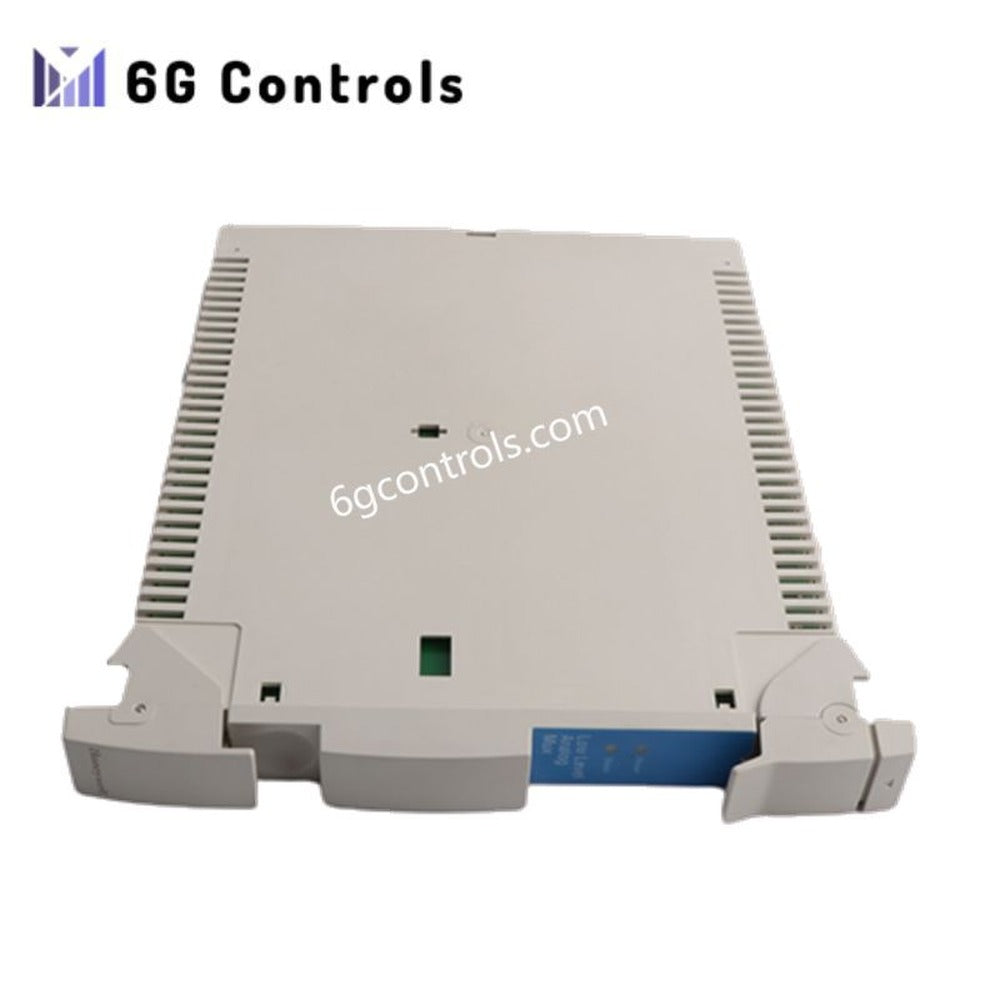

Honeywell MU-PLAM02 51304362-100 Low-Level Analog Input Module

Product Description

The MU-PLAM02 51304362-100 is a precision low-level analog input multiplexer processor developed by Honeywell for high-integrity Distributed Control System (DCS) architectures. It is engineered to aggregate multiple millivolt- and resistance-based sensor signals into a conditioned, digitally stable output suitable for real-time process monitoring.

Designed for environments where signal fidelity is critical, this module provides accurate acquisition of thermocouple, RTD, and other low-energy analog inputs while maintaining strong resistance to electromagnetic interference and industrial electrical noise.

The module is commonly deployed in legacy and modern Honeywell control platforms where dependable temperature and process variable measurement is required for continuous operation.

Core Functionality

The MU-PLAM02 51304362-100 performs front-end signal multiplexing and preprocessing for low-level analog inputs. By isolating, filtering, and conditioning incoming signals before they reach the main controller, it improves measurement accuracy, reduces wiring complexity, and enhances overall system stability.

This design makes it particularly suitable for large-scale installations with numerous precision sensors distributed across harsh industrial environments.

Technical Specifications

General Information

• Manufacturer: Honeywell
• Model: MU-PLAM02
• Part Number: 51304362-100
• Product Type: Low-Level Analog Input Multiplexer Processor Module
• Country of Origin: United States

Electrical and Performance Characteristics

• Supported Inputs: Thermocouples, RTDs, and other low-level analog sensors
• Signal Range: Millivolt and resistance-based measurement signals
• Signal Processing: Multiplexed analog acquisition with onboard conditioning
• Noise Protection: Shielded circuitry with enhanced EMI suppression
• Power Consumption: Less than 2 W

Environmental Ratings

• Operating Temperature Range: −40°C to +85°C
• Intended Environment: Control rooms, I/O cabinets, industrial enclosures

Mechanical Characteristics

• Dimensions: 2.8 cm × 37.8 cm × 27.8 cm
• Weight: 0.62 kg
• Connector Interface: Industrial backplane and system connectors

Typical Applications

The MU-PLAM02 51304362-100 is widely used in process automation systems that rely on accurate low-level signal measurement, including:

• Temperature monitoring using thermocouples and RTDs
• Chemical and petrochemical processing units
• Power generation and utilities
• Refining, pharmaceuticals, and continuous manufacturing plants

Its ability to maintain signal integrity over long operational lifecycles makes it a dependable choice for mission-critical installations.

Frequently Asked Questions

Q: What type of signals does this module handle? A: It is designed specifically for low-level analog inputs such as thermocouples, RTDs, and other precision sensors with millivolt or resistance outputs.

Q: Is this module compatible with Experion PKS systems? A: Yes. The MU-PLAM02 is compatible with Honeywell DCS platforms including Experion PKS, TDC 3000, and TPS architectures when installed in supported configurations.

Q: Can it be used in high-temperature environments? A: The module is rated for continuous operation from −40°C to +85°C, making it suitable for most industrial control environments.
