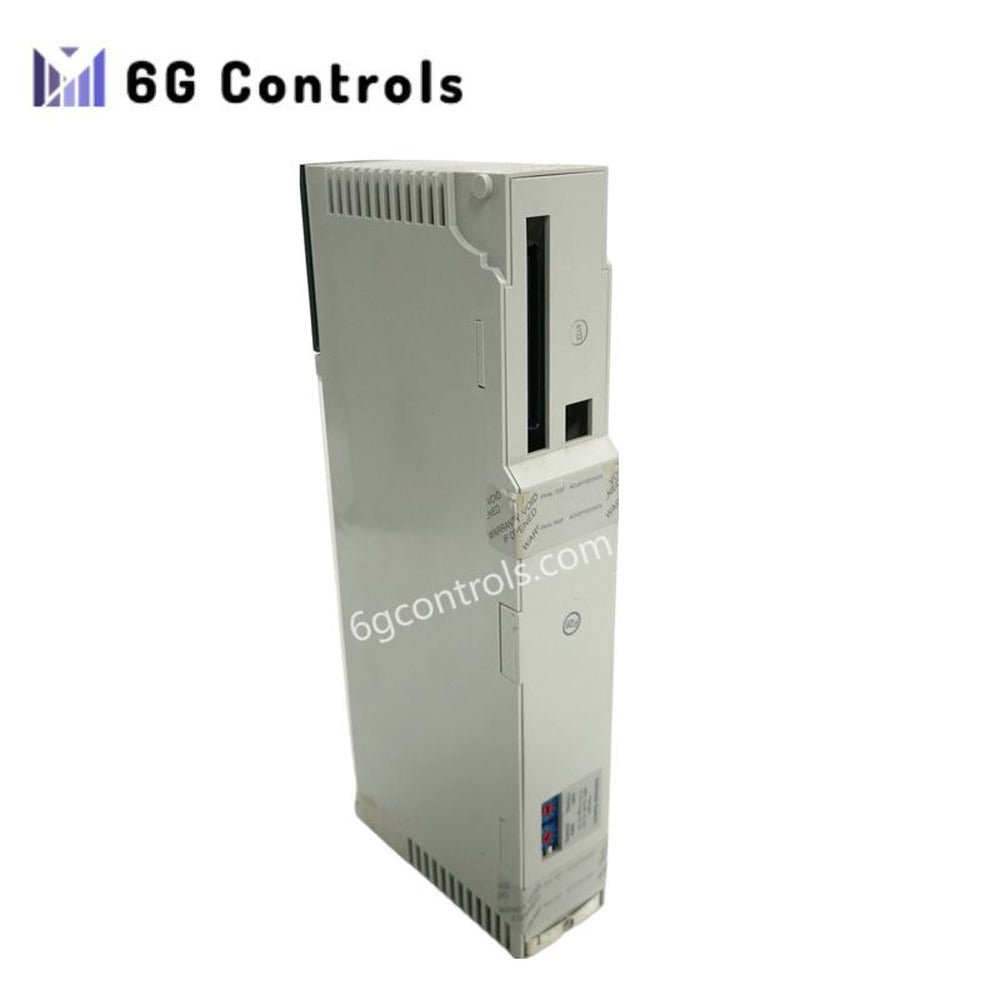

Schneider 140CPU11303 Concept Processor High Quality

Overview

The 140CPU11303 is a Concept Processor from the Modicon Quantum series, designed for industrial automation applications. It offers efficient and reliable processing capabilities.

Technical Specifications

• Model Number: 140CPU11303
• Manufacturer: Schneider Electric
• Type: Concept Processor
• Processor: 80186
• Clock Frequency: 20 MHz
• Memory: 368 kB internal RAM
• Communication Ports: 1 Modbus Plus, 2 Modbus RS232
• Watchdog Timer: 250 ms
• Clock Drift: ±8 s/day at 0-60°C

I/O and Network Specifications

• I/O Words:
  • 30 I/32 O distributed
  • 64 I/64 O max local
  • 64 I/64 O remote
• I/O Words/Network: 500 I/500 O distributed
• Number of Drops:
  • 31 remote
  • 63 distributed
• Number of Networks:
  • 2 remote
  • 3 distributed

Battery and Environmental Specifications

• Battery Type: Lithium
• Battery Capacity: 1.2 Ah
• Battery Life: 10 years
• Bus Current Requirement: 790 mA
• Operating Temperature Range: 0°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Relative Humidity: 95% without condensation
• Operating Altitude: ≤ 5000 m

Physical Dimensions and Weight

• Dimensions: 273.6 mm x 214.1 mm x 59.2 mm
• Weight: 0.3 kg
