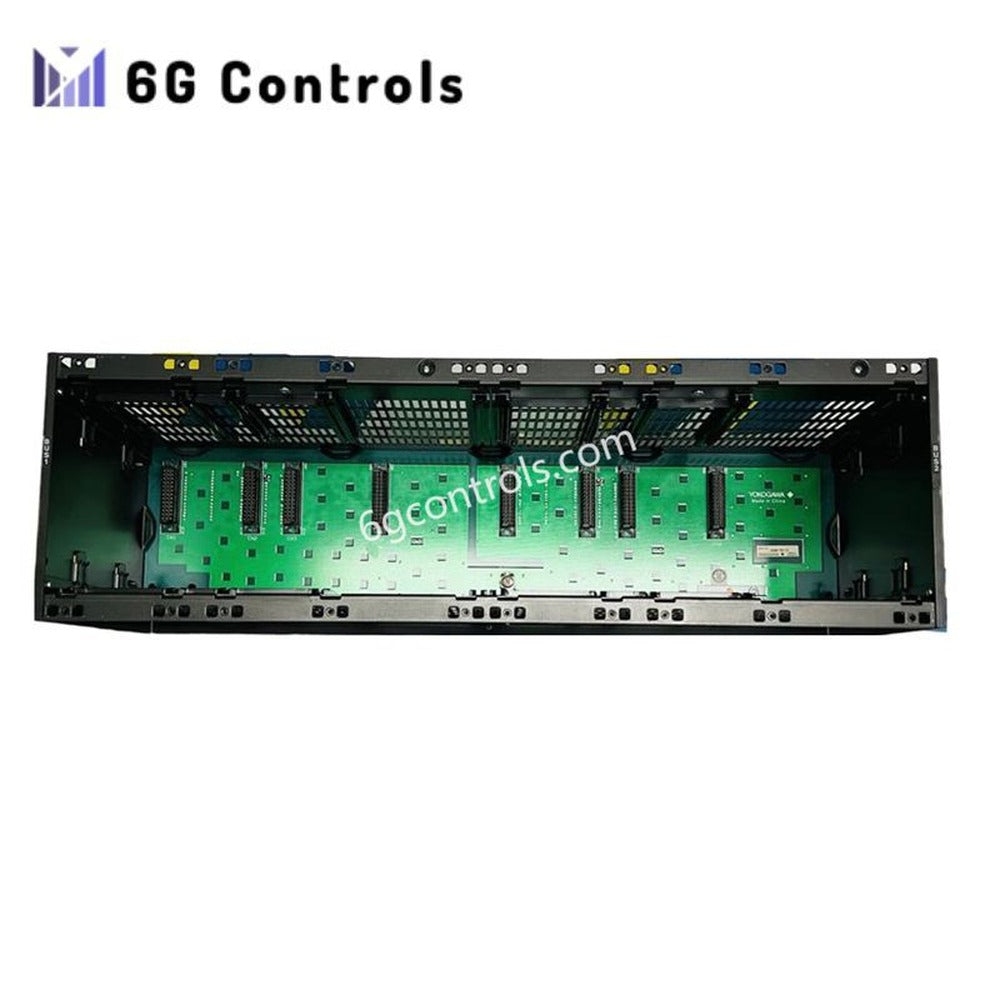

Yokogawa YNT512D Bus Repeater Module High Quality

Overview

The Yokogawa YNT512D-Q12 Bus Repeater Module ensures high-reliability communication in large-scale automation systems. It amplifies and regenerates signals over the V Net protocol, extending communication distances while preserving signal integrity. This module is ideal for Distributed Control Systems (DCS) and Safety Instrumented Systems (SIS), especially in extended or complex network topologies.

Technical Specifications

Model

• YNT512D-Q12

Type

• Bus Repeater Module

Function

• Amplifies and regenerates Yokogawa V Net signals
• Maintains signal integrity across extended distances
• Supports multiple units in series

Communication Protocol

• Yokogawa V Net

Signal Interface

• Reconstructs and retransmits degraded signals
• RS-232C port (on select models for configuration/diagnostics)

Power Supply

• 24 V DC ±5%, up to 1500 mA
• Optional: 100–240 VAC, 50/60 Hz (for some variants)

Mounting Options

• Rack-mounted or DIN rail mountable
• Chassis-based configuration

Ingress Protection: IP65

Operating Temperature: 0°C to +55°C

Storage Temperature: –20°C to +70°C

Dimensions: 144 mm × 144 mm × 72 mm

Weight: 5.0 kg
