Product Description

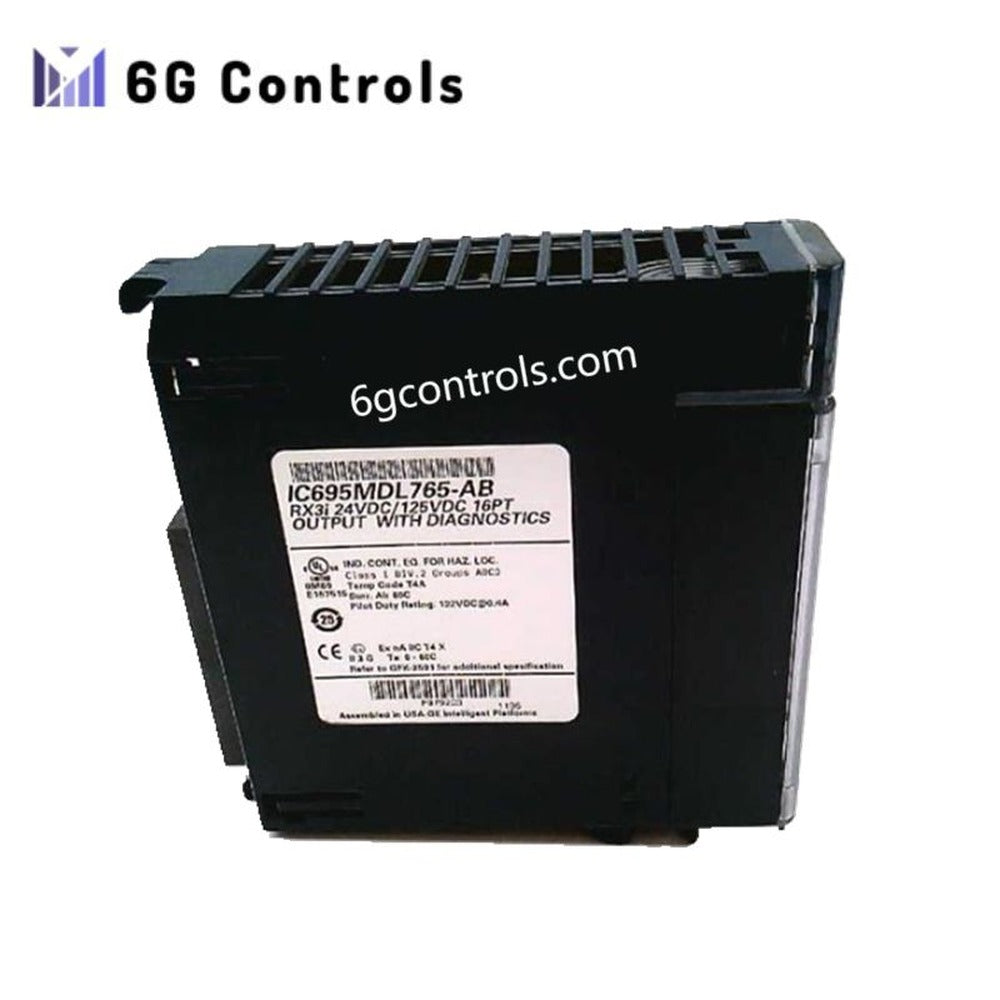

The GE IC695MDL765 is a 24/125 VDC smart digital output module designed for the PACSystem RX3i platform. It provides precise and reliable discrete output control for industrial automation systems. Moreover, its advanced diagnostics enable real-time monitoring of channel status, helping prevent downtime and ensuring safe operation.
This module features sixteen (16) digital outputs arranged in two isolated groups of eight channels each. Each channel supports voltages from 18–30 VDC or 105–132 VDC, with a maximum group current of 8 Amperes and 16 Amperes per module. In addition, it includes intelligent features such as output pulse testing, hold-to-last-state functionality, and protection against overload, overtemperature, failed switches, and no-load conditions.
Engineered for high-performance industrial applications, the IC695MDL765 ensures fast 1 ms response times and robust group isolation, making it suitable for process automation, manufacturing, and utility systems requiring reliable discrete control.
Key Features
- Sixteen (16) digital output channels in two isolated groups of eight
- Supports 24/125 VDC operation with 8 A per group and 16 A per module
- Smart diagnostics for overtemperature, overload, failed switch, and no-load detection
- Output pulse test and hold-to-last-state capabilities
- Peak inrush current: 10 A for 10 ms without triggering ESCP trip
- Maximum ON/OFF response time: 1 ms
- Group-to-group isolation: 250 V AC / 1500 V AC
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Product Type | Smart Digital Output Module |
| Product Line | PACSystem RX3i |
| Part Number | IC695MDL765 |
| Weight | 1.50 lbs |
| Number of Channels | 16 (2 isolated groups of 8) |
| Rated Voltage | 24/125 VDC |
| Output Current | 8 A per group, 16 A per module |
| Output Voltage Range | 18–30 VDC / 105–132 VDC |
| Peak Inrush Current | 10 A for 10 ms without ESCP trip |
| Power Consumption | 152 mA at 3.3 VDC, 540 mA at 5 VDC |
| Response Time (Max) | 1 ms ON/OFF |
| Output Protection | Overtemperature, Overload, Failed Switch, No-load Detection |
| Output Test Capability | Supported |
| Group Isolation | 250 V AC / 1500 V AC |
Typical Applications
- Discrete output control in factory and process automation
- Integration with PACSystem RX3i PLCs for complex control logic
- Industrial manufacturing systems requiring fast and reliable output
- Utility and power distribution systems for signaling and control
- Applications needing robust diagnostics to reduce downtime
FAQ
Q: Can the IC695MDL765 operate at both 24 VDC and 125 VDC? A: Yes, the module supports both voltage levels for versatile industrial use.
Q: What protections are included for outputs? A: The module features overtemperature, overload, failed switch, and no-load detection.
Q: Is there a way to test outputs safely? A: Yes, the module provides output pulse test capability to verify channel operation without impacting connected equipment.
Q: How quickly does the module respond to control signals? A: The maximum response time is 1 millisecond for both ON and OFF operations.
