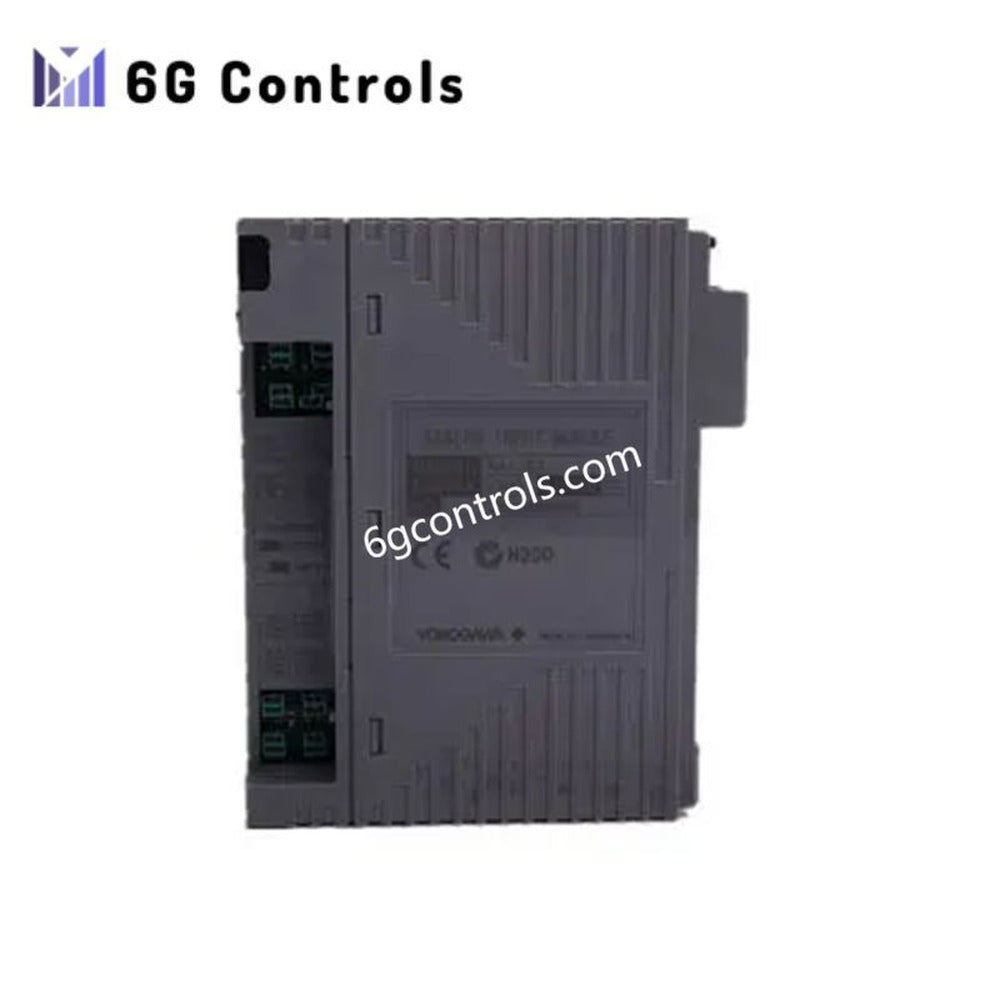

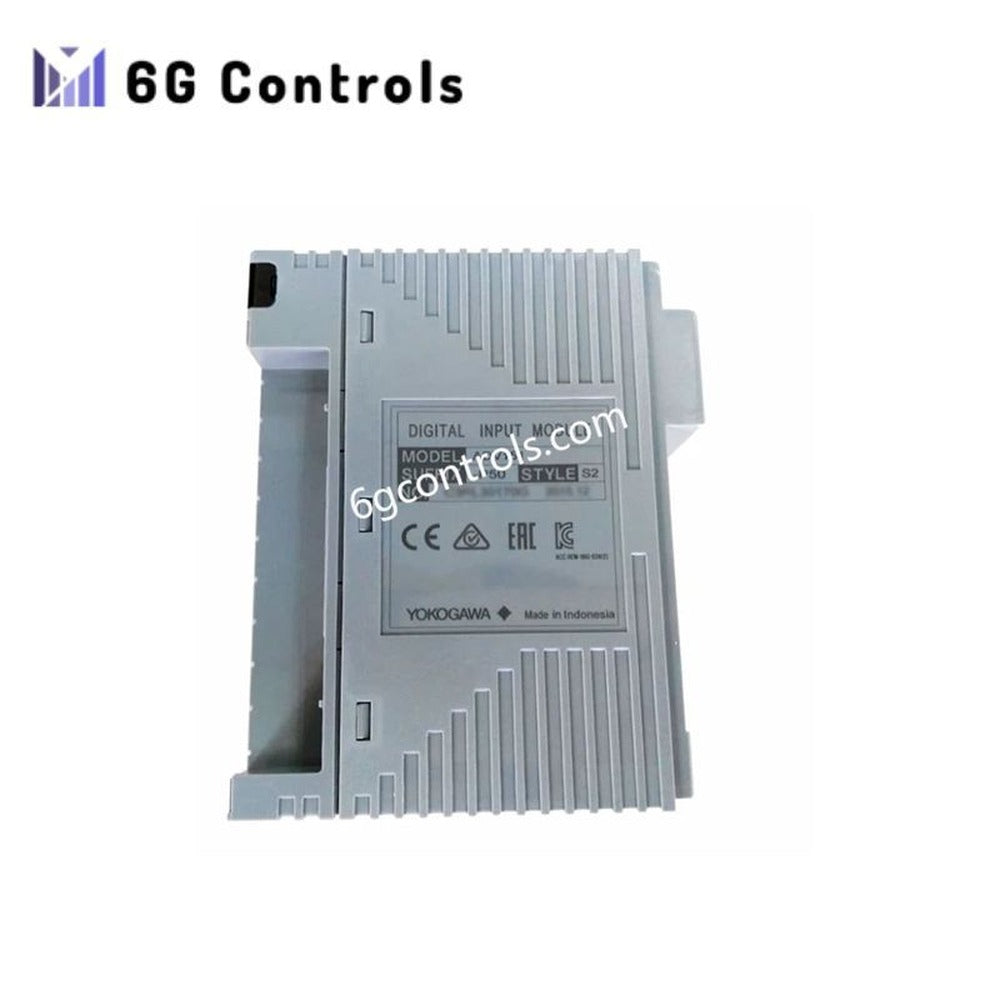

Yokogawa ADV169-P50 | CENTUM VP | Digital Input Module

16 tersedia di stok

Manufacturer: Yokogawa
Product No.: ADV169-P50
Product Type: Digital Input Module
Condition: Baru Sama Sekali
Payment: T/T, Western Union
Weight: 0.3 kg
Dimensions: 130 × 127.2 × 32.8 mm
Shipping port: Xiamen
Warranty: 12 bulan

Deskripsi
Reviews
Pengiriman & Pembayaran

Product Overview

The Yokogawa ADV169-P50 Digital Input Module is a Field I/O component developed for the CENTUM VP distributed control system. It is designed to interface discrete field signals with the control station, ensuring dependable acquisition of ON/OFF status from industrial devices.

This module supports a wide range of contact types and incorporates robust electrical isolation, making it suitable for continuous operation in electrically noisy and safety-critical process environments. Its compact, rack-mountable design allows seamless integration into existing Yokogawa control architectures.

Functional Description

The ADV169-P50 accepts 16 independent digital input signals and converts their states into internal system data for real-time monitoring and control logic execution. Each channel is optimized for stable detection of field-level signals such as limit switches, relay outputs, and sensor contacts.

Key functional characteristics include high signal integrity, fast state recognition, and protection against interference caused by grounding differences or transient voltage spikes.

Technical Specifications

Parameter	Specification
Model	ADV169-P50
Module Category	Digital Input (DI)
Number of Input Channels	16 isolated channels
Supported Input Types	Dry contact, wet contact, open collector
Rated Input Voltage	24 V DC
Allowable Voltage Range	12 to 30 V DC
Typical Input Current	4 mA per channel at 24 V DC
Response Time	≤ 10 ms
Isolation	Channel-to-channel and channel-to-system
System Interface	CENTUM VP proprietary backplane bus
Power Consumption	3.5 W
Operating Temperature	0 °C to +55 °C
Storage Temperature	–20 °C to +70 °C
Relative Humidity	5% to 95%, non-condensing
Mounting Method	Control rack installation
Approx. Dimensions	130 × 127.2 × 32.8 mm
Approx. Weight	0.3 kg

System Compatibility

The ADV169-P50 is part of Yokogawa’s Field I/O (FIO) lineup and is fully compatible with CENTUM VP control stations and standard Yokogawa I/O racks. It is typically used alongside other ADV/AAI/ADO series modules within the same node.

Typical Applications

This digital input module is commonly deployed in continuous and batch process facilities where accurate status monitoring is required, including chemical processing units, power generation plants, oil and gas installations, and large manufacturing systems. Typical signals include valve limit feedback, motor run status, breaker positions, and safety interlock contacts.

FAQ

What type of field signals can this module accept? The ADV169-P50 supports dry contacts, externally powered wet contacts, and open-collector outputs operating within the specified DC voltage range.

Is channel isolation provided? Yes. Each input channel is electrically isolated from other channels and from the system backplane, improving noise resistance and system reliability.

Can this module be hot-swapped? Hot replacement capability depends on the CENTUM VP system configuration and rack type. Always follow Yokogawa maintenance guidelines before module replacement.
