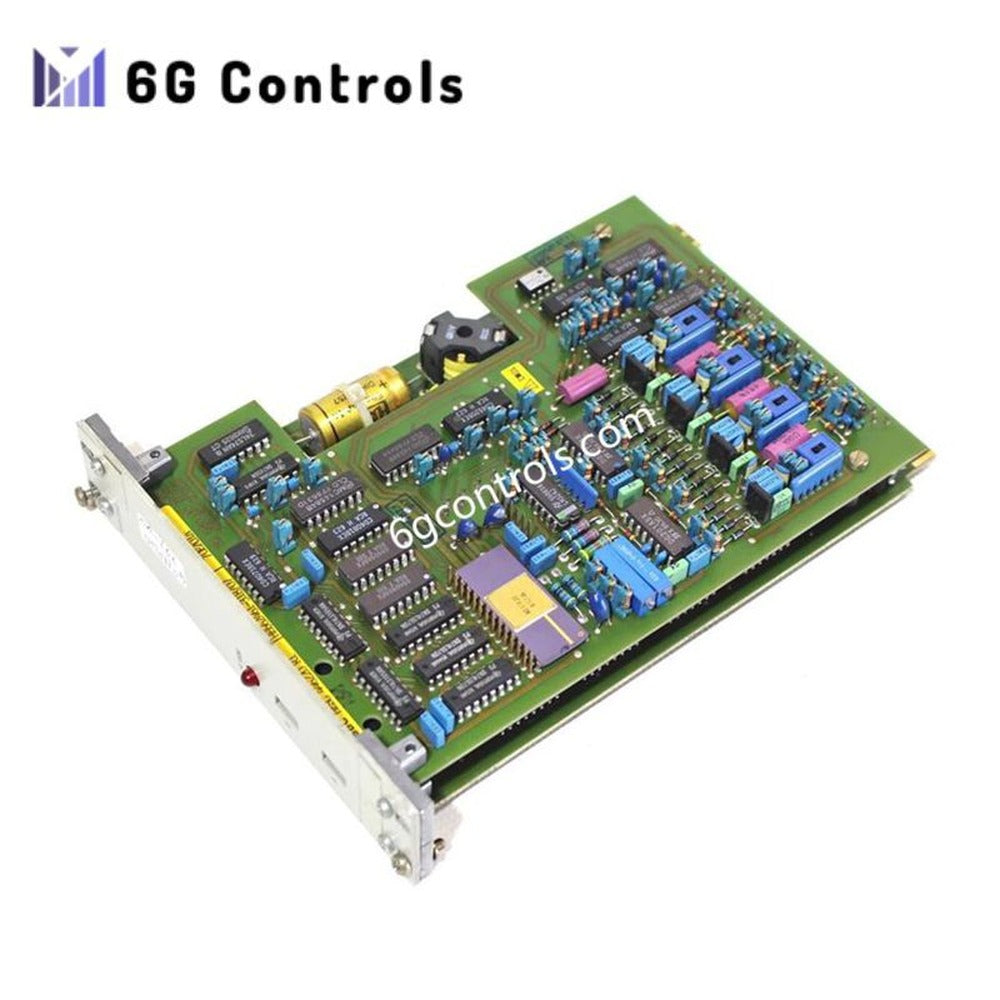

ABB 70EA01a-E Analog Input Module Most Favorable

Product Description

The ABB 70EA01A‑E is a high-performance analog input module designed for seamless integration into ABB Procontrol systems. It accurately converts signals from field sensors into precise digital data for real-time process monitoring. Moreover, its robust construction ensures continuous operation even in demanding industrial environments.

Engineered for reliability, this module provides optical isolation to protect both internal circuitry and connected field devices. Its compact DIN rail design simplifies installation while maintaining high-resolution signal acquisition. Therefore, it supports a wide range of process variables, including temperature, pressure, and flow, making it ideal for industrial automation applications.

Functional Highlights

• Converts analog signals from sensors into high-resolution digital data.
• Supports voltage, current, thermocouples, and RTD inputs for versatile applications.
• Optical isolation safeguards module electronics and field devices.
• Compact DIN rail mounting for space-efficient installation.
• High-resolution 16-bit A/D conversion ensures precise monitoring.
• Designed for continuous operation in harsh industrial conditions.

Technical Data

• Part Number: 70EA01A‑E
• Product Type: Analog Input Module
• Origin: Sweden
• Weight: 450 g
• Input Types: Voltage, current, thermocouples, RTDs
• Resolution: 16-bit typical A/D conversion
• Isolation: Optical isolation between field signals and logic
• Communication: Seamless integration with ABB Procontrol systems
• Operating Temperature: 0 to +55 °C
• Storage Temperature: -40 to +70 °C
• Protection Class: IP20

Typical Applications

• Power generation plants for temperature and flow monitoring.
• Chemical and petrochemical facilities requiring reliable process control.
• Industrial automation systems integrating multiple analog process signals.
• Real-time monitoring in distributed control system environments.

FAQ

Q: Which ABB systems are compatible with the 70EA01A‑E? A: It integrates with ABB Procontrol P13/P14, Advant OCS, and AC31 control systems.

Q: What types of signals can this module process? A: It handles voltage, current, thermocouples, and RTDs with high-resolution A/D conversion.

Q: Is the module suitable for harsh industrial conditions? A: Yes, its robust construction and optical isolation enable continuous operation in challenging environments.

Q: How is the module installed? A: It features compact DIN rail mounting for simple and secure installation.

Q: What is the warranty period? A: ABB provides a 12-month warranty for standard industrial use.
