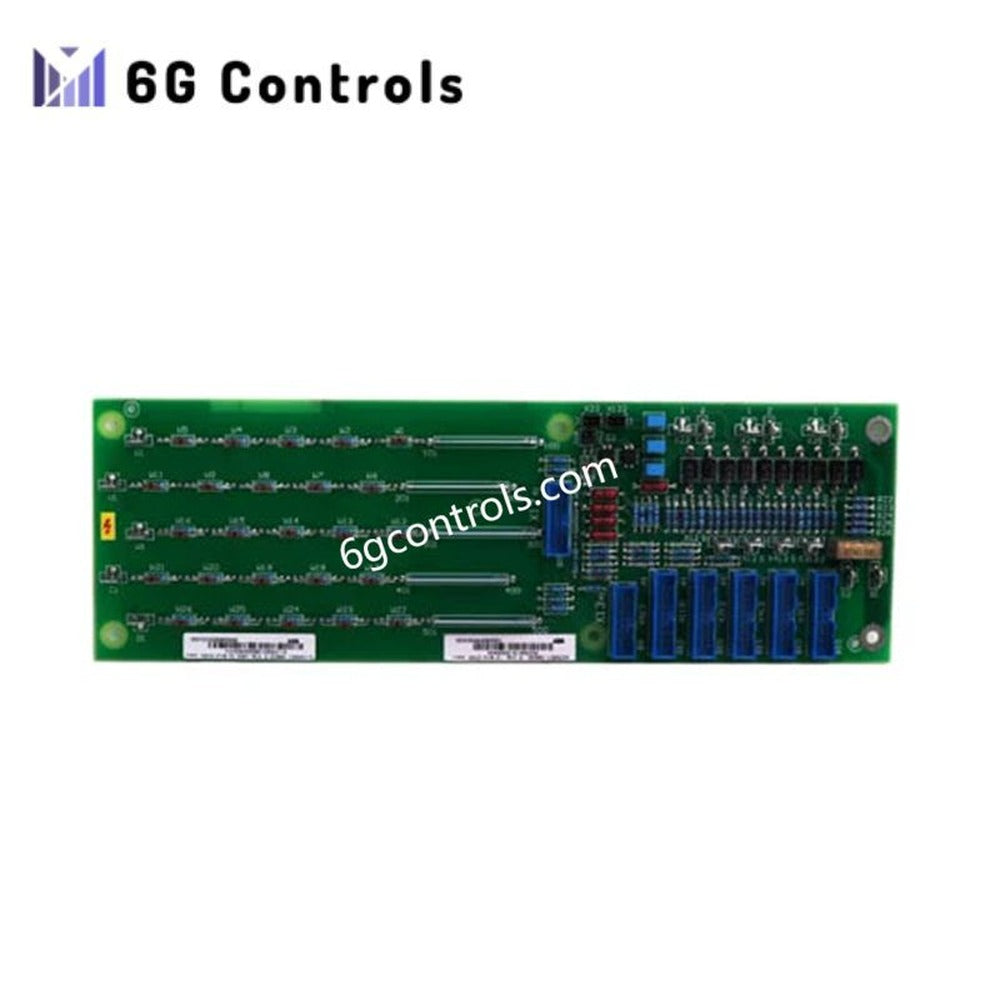

ABB SDCS-PIN-205B-COAT Power Interface Module Brand New

Overview

The ABB SDCS-PIN-205B-COAT is a conformally coated power interface board designed for ABB DCS500 and DCS600 DC drive systems. It ensures robust signal conditioning and safe electrical interfacing between control CPUs and power modules. Moreover, its conformal coating provides superior protection against moisture, dust, and corrosive chemicals, making it ideal for harsh industrial environments. This board enhances system reliability and operational precision in generator excitation and DC motor control applications.

Functional Highlights

• Power Interface & Signal Conditioning: Manages both analog and digital signals between control and power modules.
• High-Voltage Compatibility: Supports generator terminal voltage (VT/PT) and stator current (CT) inputs.
• Electrical Isolation: Safely scales and isolates feedback signals to protect downstream controllers.
• Robust Environmental Protection: Conformal coating safeguards against moisture, dust, and chemical exposure.
• System Integration: Compatible with UNITROL® 1000, 5000, 6000 series, as well as DCS500/DCS600 drives.
• Flexible Connectivity: Supports fiber optic or standard electrical connectors depending on system configuration.

Technical Specifications

Electrical Characteristics

• Signal Interface: Analog and digital feedback signals
• Signal Conditioning: Amplifiers, isolators, filters, ADCs
• Voltage Range: High-voltage inputs (VT/PT) and current transformers (CT)
• Isolation: Galvanic isolation for safe operation

Environmental Ratings

• Operating Temperature: –40°C to +70°C
• Storage Temperature: –40°C to +85°C
• Humidity: 5–95% non-condensing
• Protection Class: IP30 (enhanced with conformal coating)

Physical & Mechanical

• Weight: 350 g

Typical Applications

• DC excitation systems in power generation plants
• UNITROL® DC motor control and monitoring
• Industrial automation requiring precise voltage and current feedback
• Harsh environments with chemical, dust, or moisture exposure

FAQ

Q: What systems is the SDCS-PIN-205B-COAT compatible with? A: It supports ABB DCS500, DCS600, and UNITROL® 1000/5000/6000 series excitation controllers.

Q: Does it provide electrical isolation? A: Yes, it safely isolates high-voltage feedback signals to protect control modules.

Q: Can it operate in harsh environments? A: Yes, its conformal coating ensures protection against moisture, dust, and corrosive chemicals.

Q: What type of signals does it handle? A: It manages both analog and digital signals for voltage, current, and synchronization feedback.
