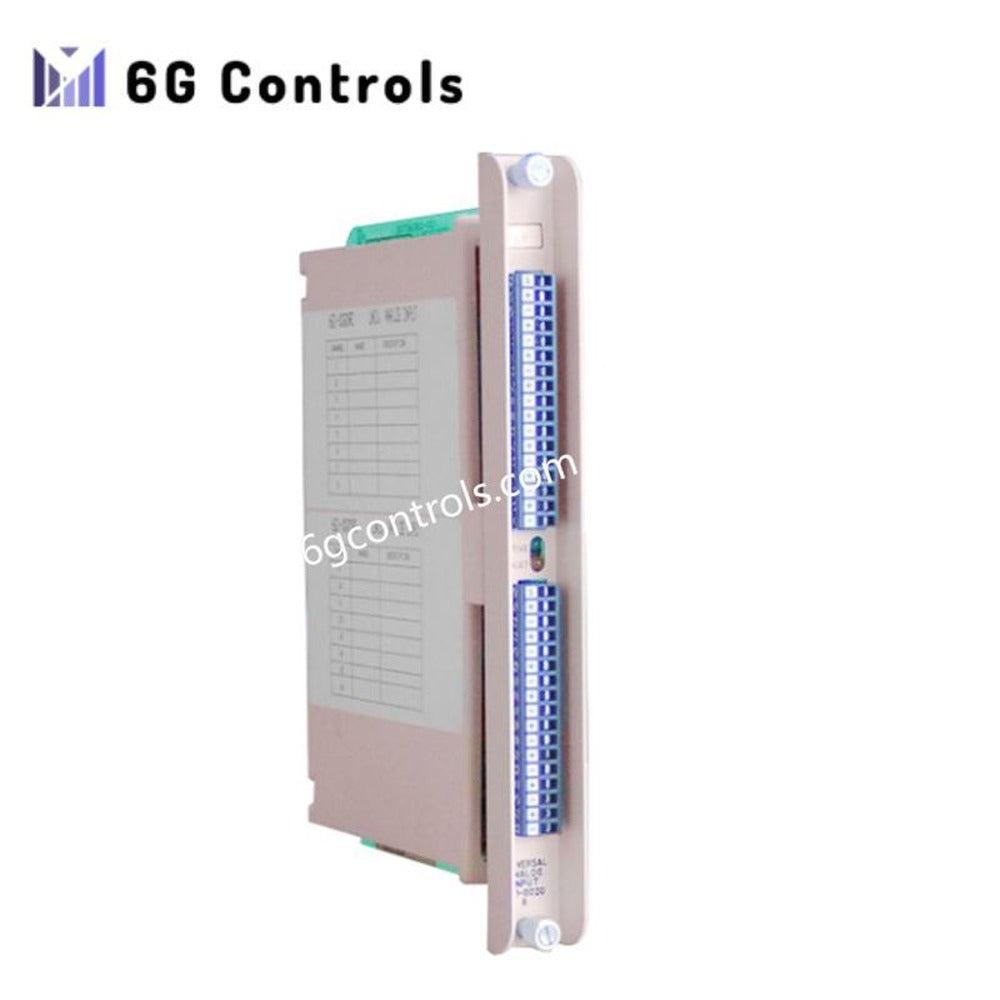

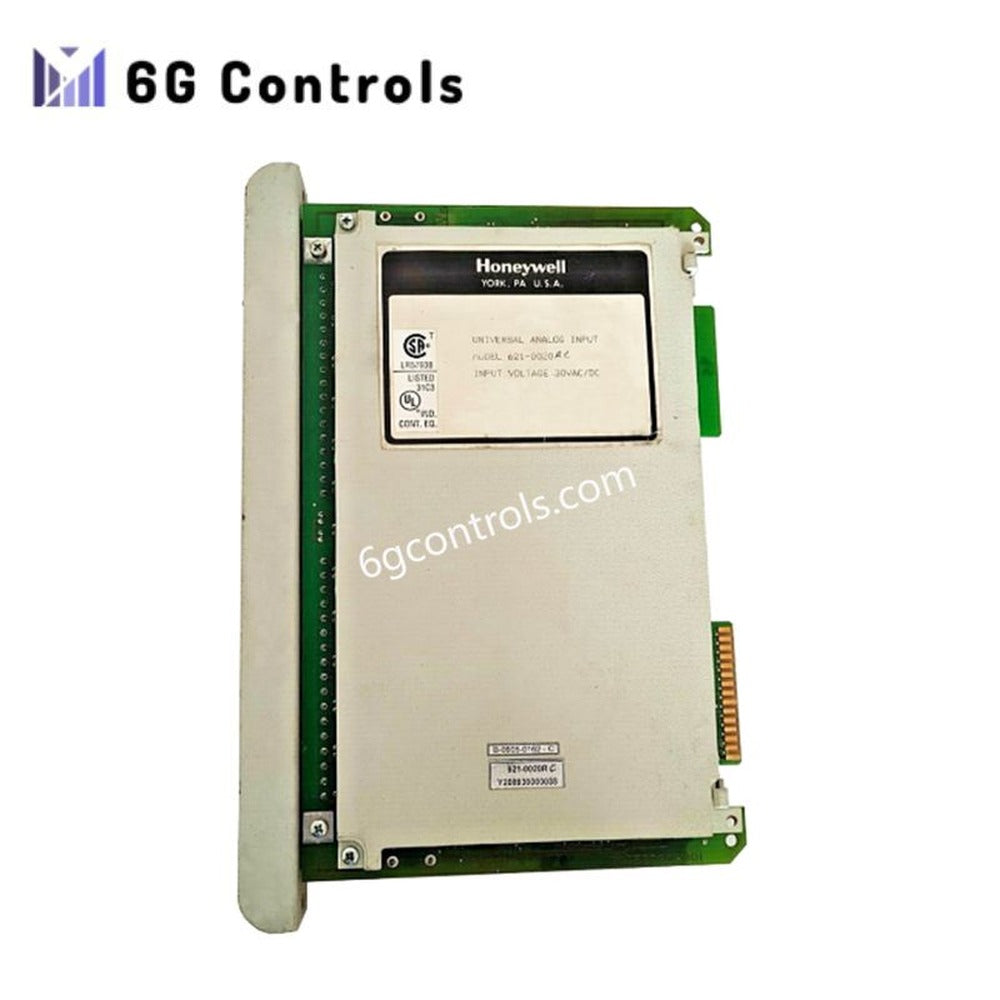

Honeywell 621-0020R Universal Analog Input Module

Product Description

The Honeywell 621-0020R Universal Analog Input Module (UAIM) provides reliable signal acquisition for TDC 2000 and TDC 3000 control systems. This module reads up to sixteen analog signals and converts them into stable 12-bit data for accurate monitoring and closed-loop control. Engineers value this model because it supports diverse sensor types and maintains strong isolation between channels. Moreover, the hot-swappable “R” design helps plants maintain uptime during scheduled or urgent maintenance. Therefore, this module works well in complex industrial environments where continuous operation and precise measurement remain essential.

Key Features and Functional Highlights

• Supports up to 16 individually configurable analog input channels
• Handles voltage, current, RTD, and thermocouple signals with wide compatibility
• Provides 12-bit A/D conversion for stable and repeatable measurement accuracy
• Includes channel-to-channel and channel-to-system isolation for improved protection
• Offers hot-swap capability that reduces system downtime
• Stores digital values in an internal holding register accessible by the Logic Manager
• Delivers consistent performance in demanding industrial environments

Technical Specifications

General

• Model: Honeywell 621-0020R
• Module Type: Universal Analog Input Module
• Country of Origin: USA
• Installation: Rack-mounted, hot-swappable

Electrical & Measurement

• Input Channels: 16 analog inputs
• Supported Signal Types: 0–10 V, 1–5 V, 4–20 mA, RTD, thermocouple
• Input Impedance: >1 MΩ (voltage), 250 Ω (current)
• Resolution: 12-bit (0–4095 counts)
• Sampling Rate: 10 samples/sec per channel (typical)
• Isolation: Channel-to-channel and channel-to-system isolation
• Module Power: 30 VAC/DC
• Power Consumption: Approximately 3.5 W

Environmental

• Operating Temperature: 0°C to 60°C
• Storage Temperature: –40°C to 85°C
• Humidity: 5%–95% RH, non-condensing

Physical

• Dimensions: 33 × 23 × 13 cm
• Weight: 1.41 lbs

Typical Applications and System Integration

The 621-0020R integrates smoothly into TDC control architectures used across heavy industries. Plant operators deploy it in power plants, chemical units, oil and gas stations, and municipal water facilities. In addition, it supports legacy system modernization because it maintains compatibility with older Honeywell controllers. For instance, many engineering teams use this module to expand existing analog capacity without redesigning field wiring. Therefore, it delivers long-term reliability in facilities that require accurate environmental, flow, pressure, or temperature measurements.

Reliability, Support, and Maintenance

Honeywell designed the module for long service life and straightforward replacement. The hot-swap capability helps maintenance teams replace modules without interrupting process execution. Moreover, the rugged assembly tolerates industrial stress and temperature variations. Users typically pair the module with Honeywell diagnostics tools to enhance troubleshooting speed and reduce operational risk.

FAQ

Q1: How many analog inputs does the Honeywell 621-0020R support? It supports up to sixteen individually configurable input channels.

Q2: Can this module read thermocouple and RTD signals? Yes, it handles both thermocouple and RTD inputs in addition to voltage and current signals.

Q3: Does the “R” suffix indicate hot-swap capability? Yes, the “R” version allows safe removal or insertion while the I/O rack remains powered.

Q4: What resolution does the A/D converter provide? It offers 12-bit resolution, which equals 0–4095 digital counts.

Q5: Which control systems use the 621-0020R module? It is designed for Honeywell TDC 2000 and TDC 3000 distributed control systems.
