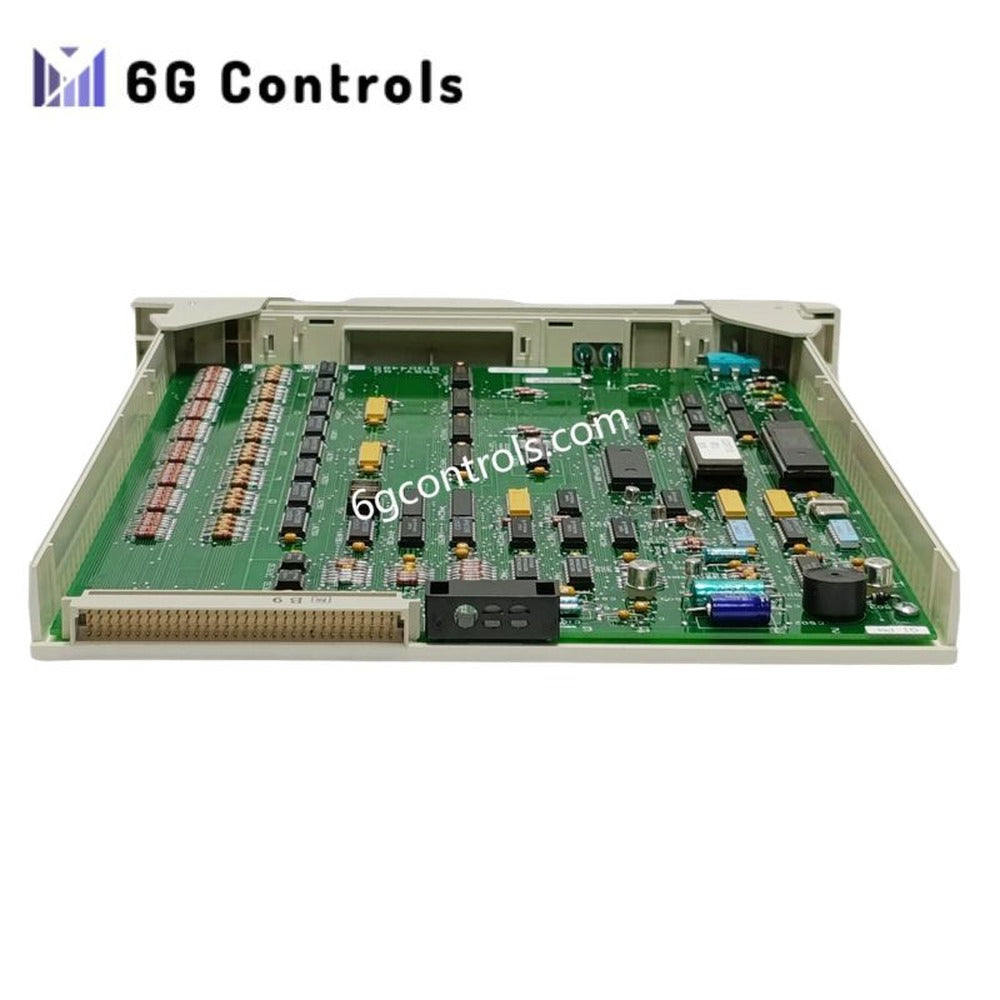

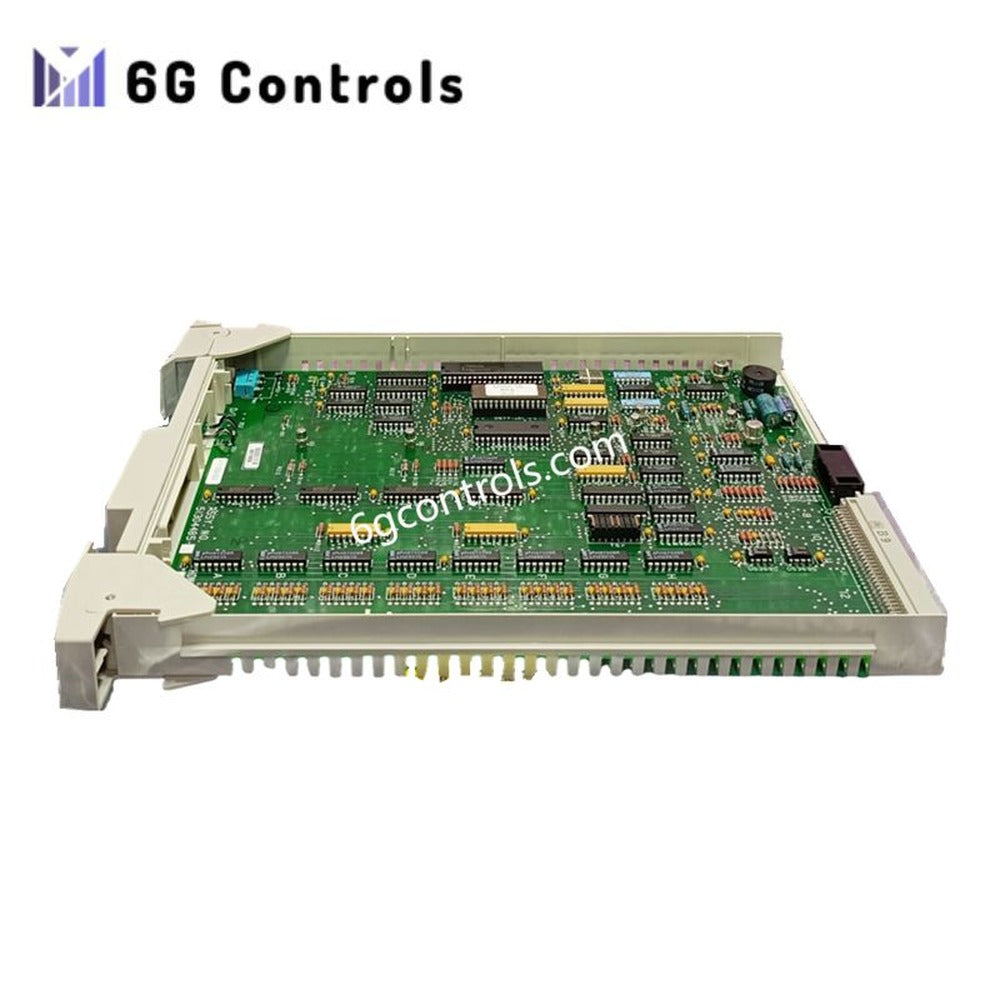

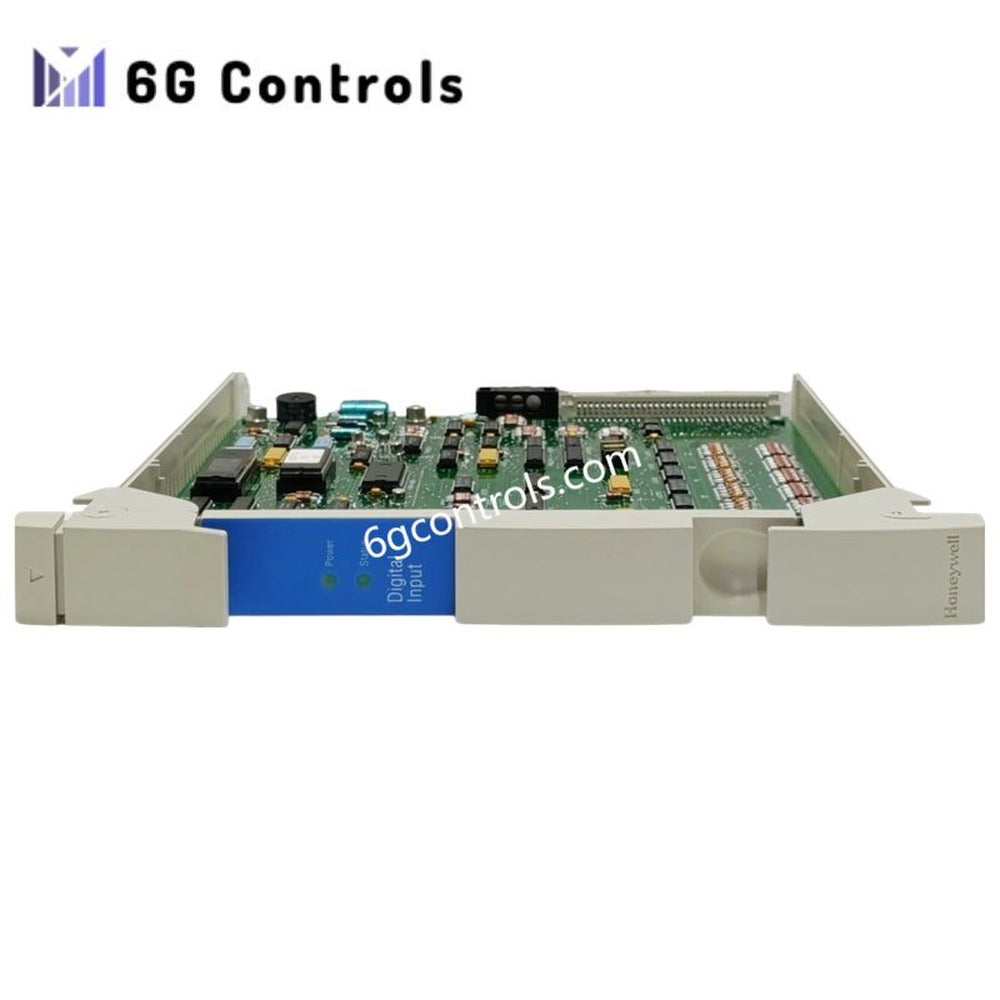

Honeywell MU-PDIX02 51304485-100 Digital Input Processor Module

Overview

The MU-PDIX02 51304485-100 is a digital input processor module engineered by Honeywell for use within TDC3000 and Experion PKS/TPS distributed control systems. It serves as a reliable interface between field-level discrete signals and the control system, ensuring accurate state detection, signal conditioning, and system-level data integrity in continuous process environments.

Designed for long-term operation in harsh industrial conditions, this module meets international safety and compliance requirements while maintaining consistent performance across wide temperature ranges.

Core Functionality

The MU-PDIX02 51304485-100 processes discrete ON/OFF signals from field devices such as limit switches, pushbuttons, interlocks, and status contacts. Signals are conditioned and transmitted through the Honeywell system bus, enabling deterministic logic execution and event handling at the controller level.

This module is optimized for integration into Honeywell’s modular I/O architecture, allowing straightforward replacement, expansion, and system maintenance.

Technical Specifications

• Manufacturer: Honeywell
• Model: MU-PDIX02
• Part Number: 51304485-100
• Module Category: Digital Input Processor
• Digital Input Channels: 8 isolated digital inputs
• Output Handling: Logical processing within system architecture
• Input Signal Type: Dry contact / discrete voltage (system dependent)
• Operating Temperature Range: −40 °C to +85 °C
• Power Consumption: ≤ 2.5 W
• System Interface: Honeywell TDC3000 / TPS system bus
• Installation Form Factor: Plug-in I/O processor module

Design and Reliability Characteristics

The MU-PDIX02 (51304485-100) is designed for high-availability process control environments where uninterrupted digital signal monitoring is essential. Its compact mechanical design supports dense cabinet layouts, while internal circuitry is engineered for electrical noise immunity, thermal stability, and long service life.

Compliance with multiple international safety standards ensures suitability for regulated industries and safety-conscious installations.

System Compatibility

• Honeywell TDC3000
• Honeywell Experion PKS
• Honeywell TPS (TotalPlant Solution)

The module operates as part of Honeywell’s distributed I/O ecosystem and is compatible with related processor, communication, and termination assemblies.

Typical Application Scenarios

• Valve position feedback and limit detection
• Motor and pump status monitoring
• Safety interlock and permissive logic inputs
• Discrete alarm and event acquisition
• Plant equipment status indication

Industries commonly deploying this module include oil and gas, refining, petrochemical processing, power generation, and large-scale manufacturing facilities.

FAQ

Q: Is the MU-PDIX02 hot-swappable? A: Hot-swap capability depends on the specific TDC3000 or TPS configuration and system power strategy. System procedures should be followed.

Q: Can this module be used outside Honeywell systems? A: No. The MU-PDIX02 (51304485-100) is designed exclusively for Honeywell control system architectures.

Q: What types of field signals are supported? A: Discrete digital signals such as dry contacts and system-defined voltage levels, depending on termination and system configuration.
