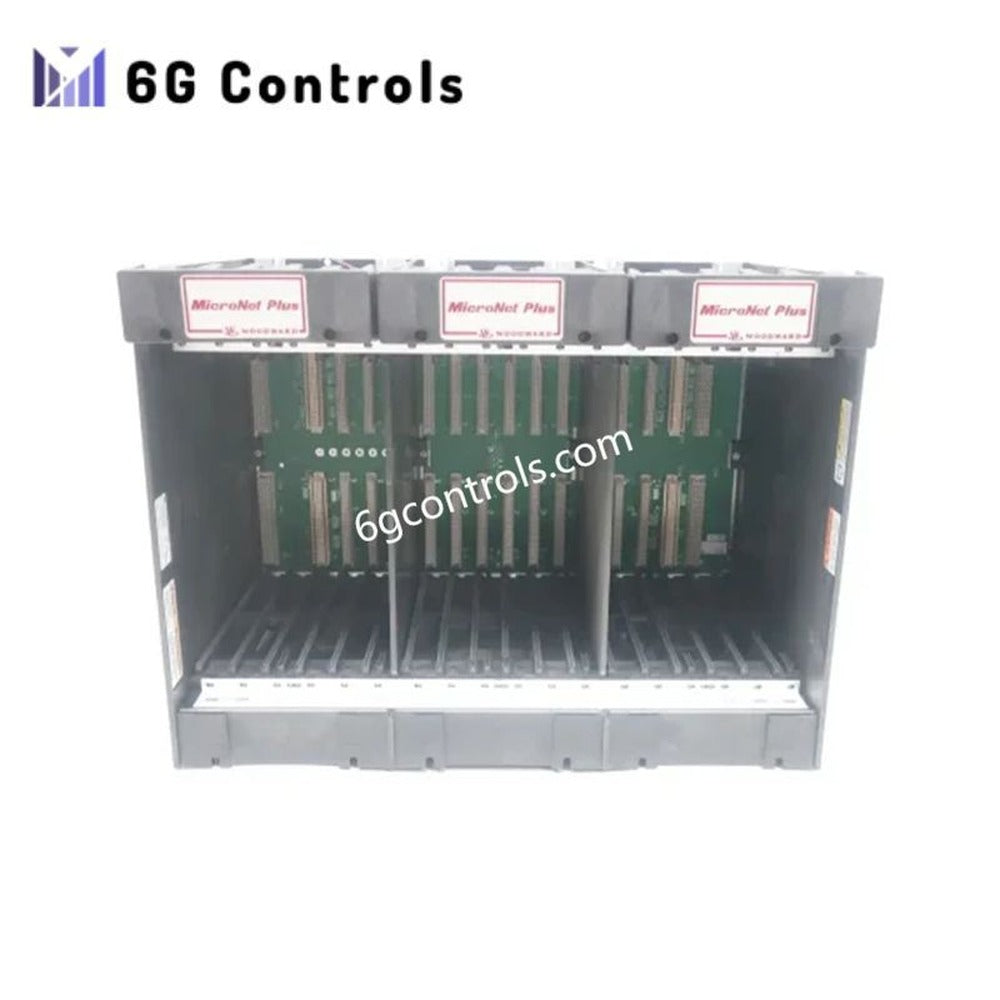

Woodward 5453-759 MicroNet-Plus Control System Chassis

Product Overview

The Woodward 5453-759 is a 14-slot MicroNet-Plus system chassis designed to serve as the central mounting and interconnection platform for Woodward digital control architectures. It provides mechanical support, regulated power distribution, and backplane communication for a full complement of MicroNet-Plus plug-in modules.

This chassis enables a fully modular control configuration, allowing CPUs, discrete and analog I/O, communication interfaces, and application-specific modules to operate within a single integrated frame. It is intended for continuous-duty operation in demanding turbine, engine, and generator control environments.

System Function and Architecture

As the foundational element of a MicroNet-Plus installation, the 5453-759 chassis delivers internally regulated 24 VDC power and distributes system buses across all module slots via a high-reliability backplane. Each slot supports hot-insertable MicroNet-Plus modules when standard ESD handling practices are observed.

The backplane is engineered to maintain signal integrity and deterministic communication between control processors and I/O subsystems, supporting real-time control strategies and safety-critical logic execution.

Technical Specifications

General Characteristics

• Manufacturer: Woodward
• Product Family: MicroNet-Plus
• Product Type: Modular Control Chassis
• Part Number: 5453-759
• Country of Manufacture: USA or Germany (production batch dependent)

Slot and Module Support

• Total Slot Capacity: 14 module positions
• Compatible Modules:
  • CPU and redundancy processors
  • Analog and discrete I/O modules
  • Communication and network interfaces
  • Specialty control and application boards
• Slot Design: Backplane-connected, plug-in architecture

Electrical Distribution

• Input Supply: External 24 VDC system power
• Internal Distribution: Regulated 24 VDC to all installed modules
• Backplane Functions:
  • Power routing
  • System communication bus distribution
  • Control signal interconnection

Mechanical Properties

• Enclosure Type: Open-frame rack chassis
• Dimensions: 160 × 160 × 120 mm
• Weight: 3 lb
• Mounting Orientation: Panel or cabinet mounting

Environmental and Reliability Features

• Industrial-grade construction for vibration and temperature variation
• Designed for long-term continuous service
• Supports module replacement without full system shutdown when procedures allow

Typical Application Areas

The Woodward 5453-759 chassis is commonly deployed in:

• Gas turbine control panels
• Steam turbine automation systems
• Compressor and mechanical drive control
• Generator control, sequencing, and protection systems
• Distributed power and energy infrastructure

Frequently Asked Questions

Q: Is the 5453-759 compatible with standard MicroNet modules? A: No. This chassis is specifically designed for MicroNet-Plus modules and backplane architecture. It is not compatible with legacy MicroNet hardware.

Q: Can modules be replaced while the system is energized? A: The chassis supports hot-swappable modules when system design and safety procedures permit, and when proper ESD precautions are followed.

Q: Does the chassis include a power supply? A: No. The chassis distributes regulated 24 VDC but relies on an external system power supply.
