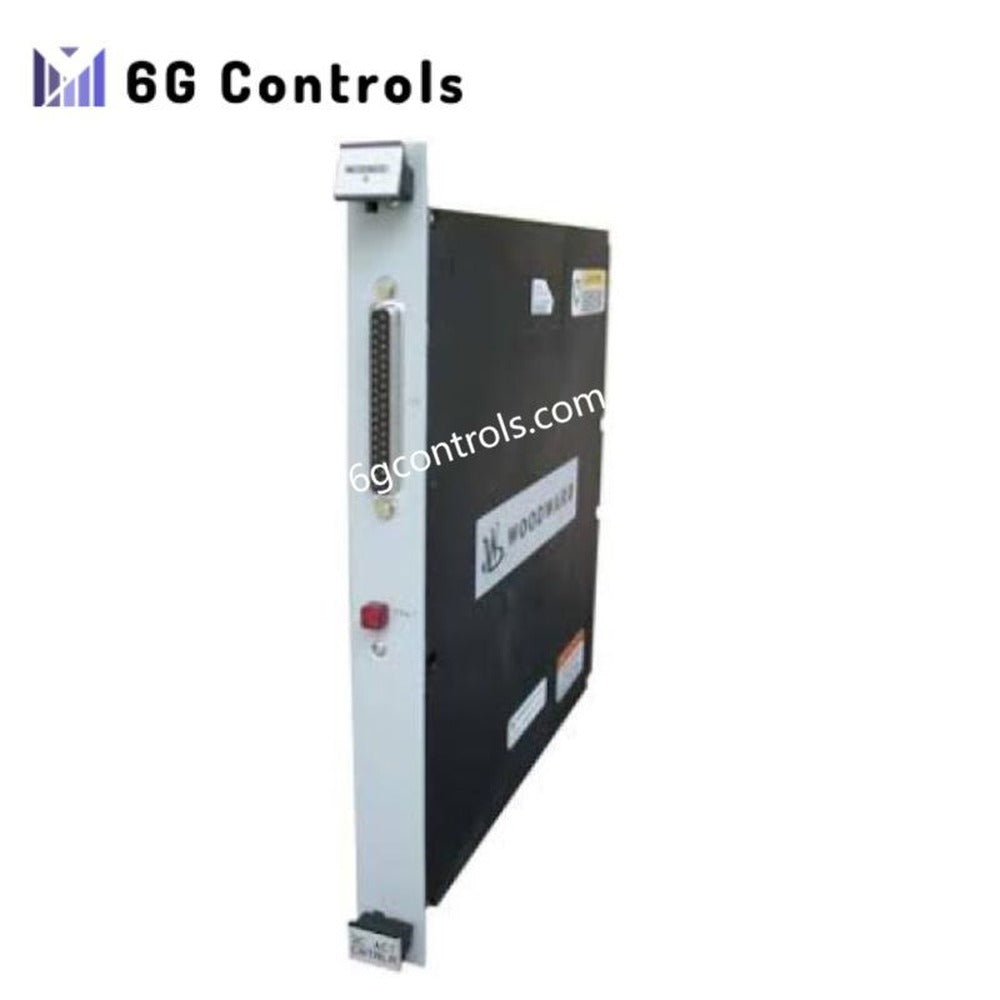

Woodward 5466-1036 Digital RTN Remote Transceiver Module

Overview

The 5466-1036 is a Digital Remote Real-Time Network (RTN) Transceiver Module engineered for distributed control architectures within Woodward MicroNet and MicroNet Plus platforms. This module operates as a Remote Transceiver (Remote XCVR), enabling deterministic, low-latency communication between CPUs, I/O racks, and remote control nodes.

Designed for high-availability systems, the module plays a critical role in maintaining synchronized real-time data exchange in both standard and Triple Modular Redundant (TMR®) configurations.

Core Functionality

The 5466-1036 module acts as the real-time networking interface for MicroNet control systems. It supports redundant RTN topologies, ensuring continuous operation even during single-path or component failures. Deterministic data transmission is maintained across all connected control elements, making the module suitable for mission-critical turbine and engine control applications.

The integrated Ethernet interface supports both RTN traffic and general Ethernet communication, reducing infrastructure complexity while maintaining strict real-time performance.

Technical Specifications

General Characteristics

• Model / Part Number: 5466-1036
• Product Type: Digital Remote Real-Time Network Transceiver
• Alternate Designation: Remote XCVR
• Control Platform: MicroNet Digital Control, MicroNet Plus
• Manufacturing Origin: Fort Collins, Colorado, USA
• Regulatory Compliance: CSA, ATEX, CE (LVD & EMC), ABS, DNV
• Not UL or LRS certified

Networking & Interfaces

• Network Role: Real-Time Network (RTN) communication bridge
• Ethernet Connectivity: Integrated 4-port Ethernet connector
• Supported Architectures: Redundant CPU and RTN network configurations
• Communication Behavior: Deterministic, real-time data transfer

LED Status Indicators

• Network Link Status: Green LED
• Data Transmission / Reception: Yellow LED Updated LED color scheme improves field diagnostics and visibility during commissioning and maintenance.

System Compatibility

• Compatible CPUs: MicroNet Plus and MicroNet TMR® CPU5200 family with RTN ports
• Incompatible With: CPU5200 variants without RTN hardware support

Mechanical & Physical Data

• Enclosure Finish: Gray front panel with black side housing
• ​Dimensions: 2.5 cm × 26.7 cm × 25.4 cm
• Weight: 0.8 kg

Typical Applications

This RTN transceiver module is commonly deployed in:

• Gas and steam turbine control systems
• Engine and compressor control platforms
• Power generation facilities requiring TMR redundancy
• Distributed I/O architectures with strict real-time constraints

Its reliability and deterministic communication make it suitable for environments where system integrity and timing accuracy are critical.

Frequently Asked Questions

What is the primary role of the 5466-1036 module?

It provides real-time RTN communication between distributed MicroNet system components, ensuring synchronized data exchange and system determinism.

Can this module be used in non-redundant systems?

Yes. While optimized for redundant and TMR architectures, it also operates in standard MicroNet Plus configurations equipped with RTN-capable CPUs.

Is this module interchangeable with standard Ethernet switches?

No. Although it uses Ethernet physical media, the module is designed specifically for deterministic RTN communication and cannot be replaced by commercial Ethernet hardware.
