Overview

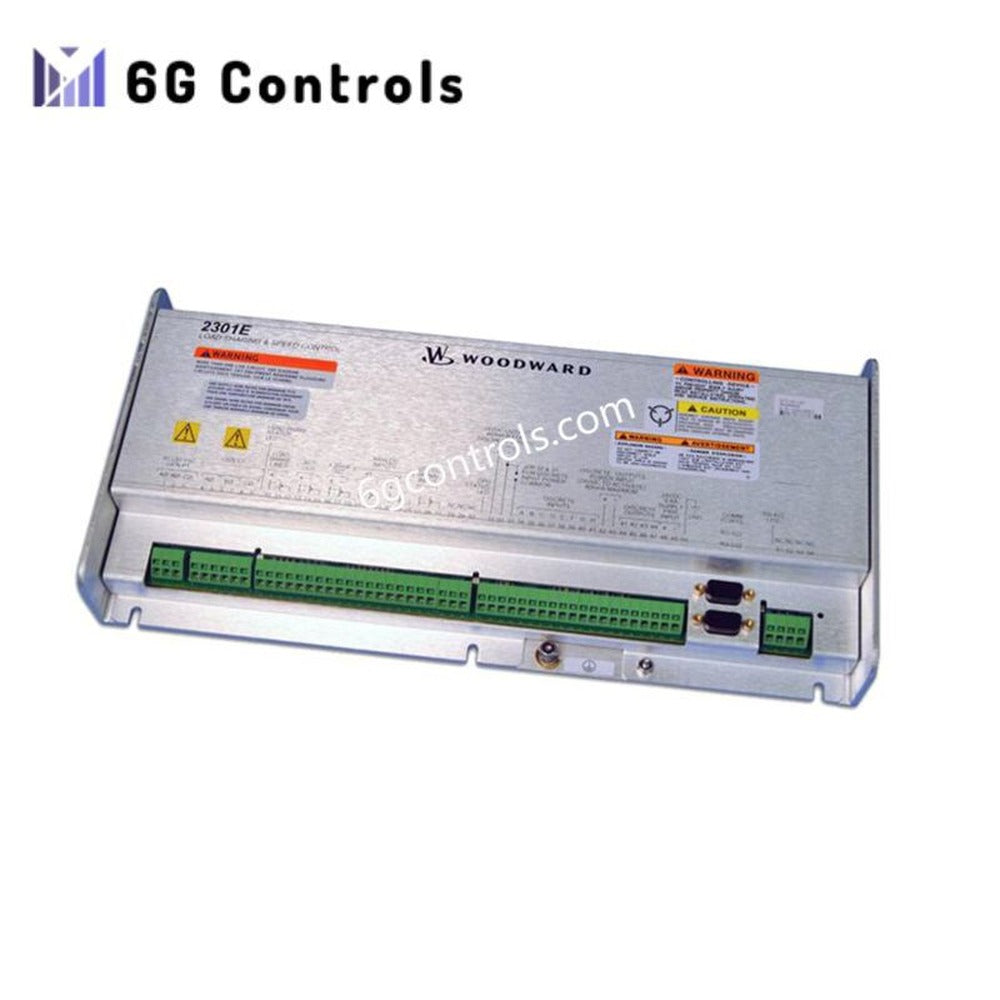

The Woodward 8723-1011 digital speed control module belongs to the 2301E controller family and is engineered for electronic speed regulation and load-sharing control of industrial engines and generator sets.
The controller continuously monitors engine speed and adjusts the fuel control actuator to maintain stable operating speed while coordinating load distribution between parallel generator units. This electronic approach provides faster response, higher stability, and improved synchronization compared with traditional mechanical governors.
Designed for demanding power generation and engine control environments, the 8723-1011 offers reliable performance, flexible configuration, and compatibility with a wide range of diesel or gas engine systems used in industrial power plants and standby generator installations.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8723-1011 |
| Series | Woodward 2301E Digital Control Series |
| Control Type | Digital electronic speed governor |
| Primary Function | Engine speed regulation and generator load sharing |
| Control Method | Closed-loop electronic speed control |
| Compatible Engines | Diesel and gas engines used in generator sets |
| Parallel Operation | Supports multi-generator load sharing |
| Operating Environment | Standard industrial locations |
| Hazardous Area Alternative | 8723-1012 (hazardous location variant) |
| Power Supply | Typically 18–32 VDC (model dependent configuration) |
| Control Output | Actuator signal for fuel control |
| Weight | 2 kg |
| Mounting | Panel or control cabinet installation |
Functional Features
High-accuracy electronic speed control Digital processing allows precise control of engine speed with quick correction to load fluctuations.
Generator load-sharing capability When multiple generators operate in parallel, the controller automatically balances the load between units to maintain system stability.
Fast response to dynamic load changes Electronic regulation reacts rapidly to sudden load increases or decreases, helping prevent overspeed or instability.
Integration with industrial engine systems The module interfaces with actuator drivers and speed sensors commonly used in industrial generator control panels.
Robust industrial design The controller is built for continuous operation in generator rooms, power plants, and heavy industrial environments.
Typical Application Scenarios
The Woodward 8723-1011 controller is widely used in power generation and engine control systems including:
- Diesel generator sets operating in parallel power plants
- Standby and emergency power systems
- Industrial cogeneration systems
- Marine auxiliary generator control systems
- Gas engine driven generator installations
Its load-sharing capability makes it particularly suitable for multi-generator synchronization systems.
Installation and Operational Considerations
Proper installation and parameter configuration are essential to ensure reliable engine control performance.
Key considerations include:
- Follow Woodward 2301E installation and wiring guidelines.
- Ensure compatibility with the actuator and speed sensor type used in the engine system.
- Verify correct voltage supply and grounding practices to avoid signal interference.
- Perform system tuning and calibration after installation to achieve stable load-sharing performance.
Incorrect wiring or parameter configuration may result in unstable engine speed or uneven generator load distribution.
FAQ
What is the main function of the 8723-1011 controller? It regulates engine speed electronically and distributes electrical load evenly when multiple generator sets operate in parallel.
Can this module be used in hazardous environments? The standard 8723-1011 model is intended for ordinary industrial locations. For hazardous areas, Woodward provides the 8723-1012 variant.
Is it compatible with both diesel and gas engines? Yes. The controller can be applied to diesel or gas engines as long as the actuator and speed sensing systems are compatible.
Does it replace mechanical governors? Yes. Electronic controllers such as the 8723-1011 provide higher accuracy, faster response, and improved synchronization compared with traditional mechanical governors.
