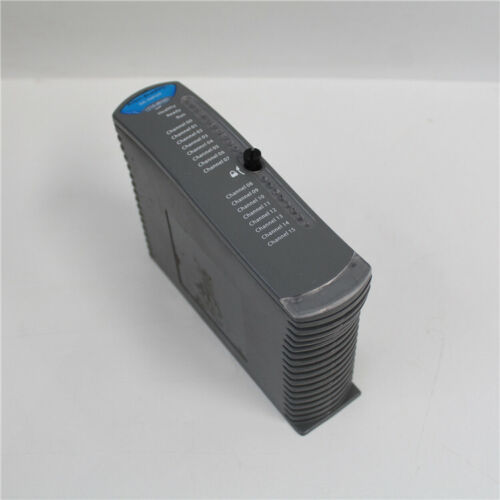

The Allen Bradley 1715-IF16 is a 16-channel analog input module that is designed for use with the SLC 500 family of PLCs. The module has 16 isolated inputs that can be used to measure a variety of signals, such as temperature, pressure, and flow. The module also has a number of features that make it a good choice for a variety of industrial applications, such as:
- High-speed performance: The 1715-IF16 can scan its inputs at up to 250 kHz, making it suitable for applications that require high-speed data acquisition.
- Wide input signal range: The 1715-IF16 can accept input signals from 4 to 20 mA or 0 to 10 VDC, making it suitable for a variety of industrial applications.
- Individually isolated inputs: The 1715-IF16’s inputs are individually isolated, which helps to protect the module and the PLC from electrical noise.
- Easy to install: The 1715-IF16 is easy to install and configure, making it a good choice for users who do not have a lot of experience with industrial automation.
Specifications Parameters
| Specification | Value |
|---|---|
| Backplane current load | 950 mA at 5.1V DC |
| Operating voltage range | 10…30V DC |
| Operating temperature | 0…60°C (32…140°F) |
| Storage temperature | -40…85°C (-40…185°F) |
| Relative humidity | 5…95% (non-condensing) |
| Shock resistance | 30g, 11ms duration, half sine wave (operational); 50g, 11ms duration, half sine wave (non-operational) |
| Vibration resistance | 5…500Hz, 2g peak (operational); 5…500Hz, 5g peak (non-operational) |
| Number of analog inputs | 16 |
| Input type | single-ended |
| Input voltage range | ±10V DC |
| Input current range | 0…20mA DC |
| Input resistance | 250Ω (voltage mode); 55Ω (current mode) |
| Input filter | programmable, 0…10ms |
| Resolution | 16 bits, unipolar or bipolar, software-configurable |
| Conversion Time | 1.2ms for all channels |
| Accuracy | Voltage mode: ±0.05% of full scale at 25°C (77°F) |
| Current mode: ±0.1% of full scale at 25°C (77°F) | |
| Isolation | Input-to-backplane: 1.5kV AC (continuous); 250V AC (per IEC 664) |
| Input-to-logic: 1.5kV AC (continuous); 250V AC (per IEC 664) |
Note: For detailed specifications and installation instructions, please refer to the product datasheet.
Applications
The Allen Bradley 1715-IF16 can be used in a variety of industrial applications, such as:
- Machine control: The 1715-IF16 can be used to monitor sensors and switches on machines, such as robots, conveyors, and packaging machines.
- Process control: The 1715-IF16 can be used to monitor sensors and switches in industrial processes, such as heating, cooling, and mixing.
- Building automation: The 1715-IF16 can be used to monitor sensors and switches in buildings, such as lighting, HVAC, and security.
- Data acquisition: The 1715-IF16 can be used to collect data from a variety of sensors and devices.
Benefits
The Allen Bradley 1715-IF16 offers a number of benefits to users, including:
- High-speed performance: The 1715-IF16 can scan its inputs at up to 250 kHz, making it suitable for applications that require high-speed data acquisition.
- Wide input signal range: The 1715-IF16 can accept input signals from 4 to 20 mA or 0 to 10 VDC, making it suitable for a variety of industrial applications.
- Individually isolated inputs: The 1715-IF16’s inputs are individually isolated, which helps to protect the module and the PLC from electrical noise.
- Easy to install: The 1715-IF16 is easy to install and configure, making it a good choice for users who do not have a lot of experience with industrial automation.
Conclusion
The Allen Bradley 1715-IF16 is a high-performance analog input module that is designed for use with the SLC 500 family of PLCs. The module has a number of features that make it a good choice for a variety of industrial applications, such as high-speed performance, a wide input signal range, individually isolated inputs, and easy installation.
We currently have the Allen Bradley 1715-IF16 module in its original packaging available in stock. This module is a highly versatile analog input module designed to provide precise measurement and monitoring capabilities for a wide range of industrial applications. With its 16 single-ended inputs, customizable input ranges, seamless integration with the ControlLogix platform, and robust design, the 1715-IF16 module is the ideal choice for accurate and reliable analog input measurement. And with the module being in its original packaging, you can be assured that you are receiving a brand new and unused product. Order now to take advantage of our current stock availability!
