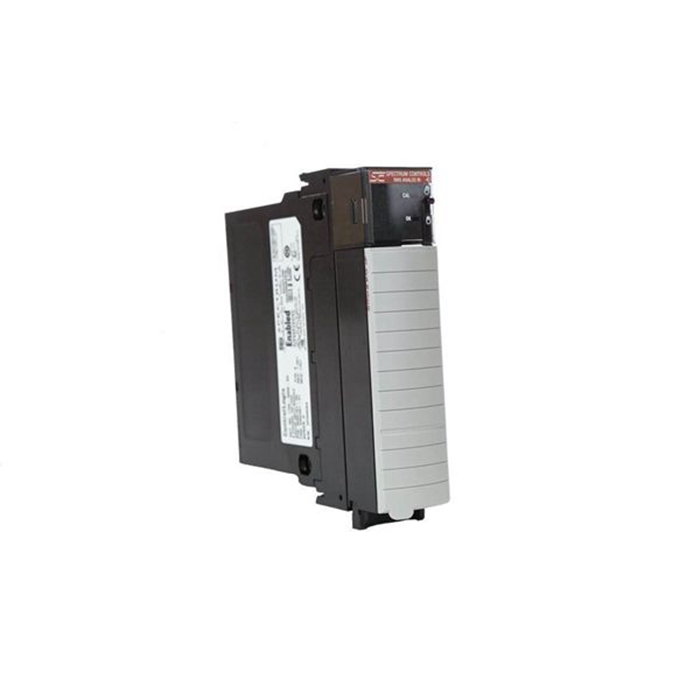

Allen Bradley 1756-IF16H Original Packaging Module in Stock

Brand: Allen Bradley
Model number: 1756-IF16H
Part number: 1756-IF16H
Type: Analog input module
Number of channels: 16
Input range: 0-20 mA or 4-20 mA
Resolution: 16-21 bits
Accuracy: 0.3% of range
Power consumption: 6 W maximum
Dimensions: 10.2 x 10.2 x 2.2 inches
Weight: 1.5 pounds

  • Product Details
  • FAQs
  • Inquiry

The Allen Bradley 1756-IF16H Original Packaging Module is a high-performance input module designed for industrial automation systems.


  • 16 analog input channels for precise data acquisition.
  • High-resolution conversion for accurate measurements.
  • Wide input voltage range for compatibility with various sensors.
  • Modular design for easy installation and expansion.
  • LED indicators for quick status monitoring.


The 1756-IF16H module is widely used in industrial processes that require reliable and precise analog input measurements. It finds applications in:

  • Temperature and pressure monitoring systems.
  • Flow rate and level monitoring in chemical and manufacturing processes.
  • Monitoring and control of motor speed and position.
  • Data acquisition in research and development laboratories.

Technical Specifications:

  • Input Channels: 16 analog inputs.
  • Input Type: Voltage or current.
  • Input Range: Configurable for different voltage or current ranges.
  • Resolution: 16-bit.
  • Conversion Rate: 10 ms per channel.
  • Accuracy: ±0.1% of full scale.
  • Isolation: Channel-to-channel and channel-to-backplane isolation.
  • Operating Temperature: 0 to 60 °C (32 to 140 °F).
  • Power Supply: 5V DC from backplane.


  • Accurate and reliable analog input measurements for precise control and monitoring.
  • Easy integration with Allen Bradley control systems.
  • Modular design allows flexibility in system configuration and expansion.
  • Durable construction for reliable operation in harsh industrial environments.
  • Efficient data acquisition for improved process efficiency and quality.


The Allen Bradley 1756-IF16H Original Packaging Module is a versatile and high-performance analog input module that provides accurate and reliable data acquisition for industrial automation systems. With its advanced features, wide range of applications, and durable construction, it is an excellent choice for demanding industrial environments.

Q: What is the input voltage range supported by the Allen Bradley 1756-IF16H module?
A: The input voltage range of the 1756-IF16H module is configurable and can be set to different voltage ranges based on the application requirements.

Q: How many analog input channels does the 1756-IF16H module have?
A: The 1756-IF16H module has a total of 16 analog input channels for precise data acquisition.

Q: Can the 1756-IF16H module be integrated with other Allen Bradley control systems?
A: Yes, the 1756-IF16H module is designed to seamlessly integrate with other Allen Bradley control systems, providing a comprehensive solution for industrial automation.

Q: What is the conversion rate of the 1756-IF16H module?
A: The 1756-IF16H module has a conversion rate of 10 ms per channel, allowing for quick and accurate data acquisition.

Q: Does the 1756-IF16H module provide channel-to-channel isolation?
A: Yes, the 1756-IF16H module offers channel-to-channel isolation, ensuring the integrity of the input signals and preventing interference between channels.
