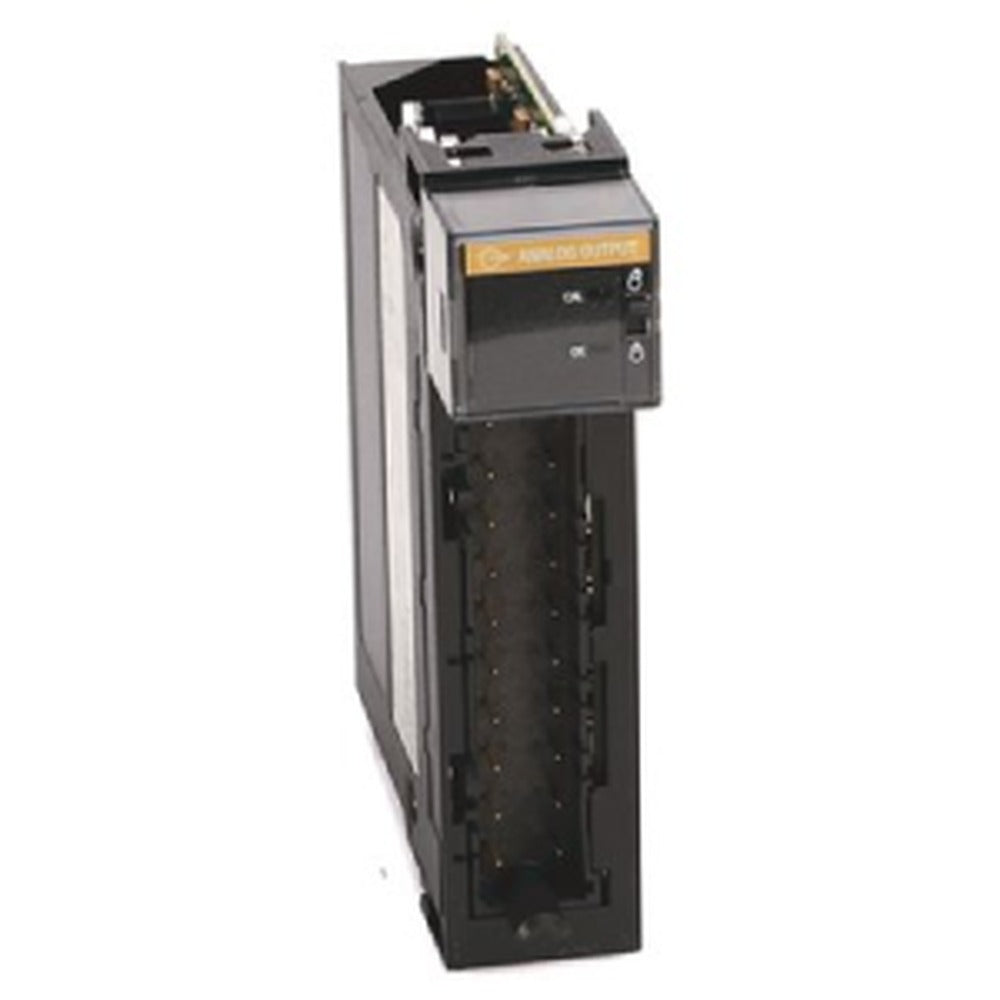

Allen Bradley 1756-OF4 ControlLogix Analog Output Module – Four Analog Outputs for Industrial Automation

Brand:Allen Bradley
Item No.:Allen Bradley 1756-OF4
Payment:TT Or Western Union
Product Origin:USA
Shipping Port:Xiamen
Lead Time:1-3 Working Days
Condition:Original New
Warranty:12 Months
Description:ControlLogix Output Analog Module
Product Type:1756 ControlLogix I/O
System:Allen Bradley ControlLogix

  • Product Details
  • Product Features
  • FAQs
  • Technical Review
  • Inquiry

The Allen Bradley 1756-OF4 ControlLogix Analog Output Module is a high-performance module designed for use in industrial automation applications. This module is part of the ControlLogix family of programmable automation controllers (PACs) and is used to provide precision analog output signals for a wide range of industrial control applications.

Technical Specifications For Allen Bradley 1756-OF4:

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1756-OF4
Series ControlLogix
Outputs 4 Current-Voltage
Module Type Analog Output Module
Output Voltage Range ±10V
Output Current Range 4…20 mA
Output Voltage Resolution 15 bits across 10.5V, 320 µV/bit O
Output Current Resolution 15 bits across 21 mA, 650 nA/bit
Backplane Current (5Volts) 150 milliamps
Backplane Current (24 Volts) 120 milliamps
UPC 10612598171825
Power Dissipation (Max) 4.9 Watts at 60 Celsius
Removable Terminal Blocks 1756-TBNH, 1756-TBSH
Isolation Voltage 50 Volts Continuous
Enclosure None

1756 ControlLogix I/O Specifications:

AC Digital Catalog Numbers :1756-IA8D, 1756-IA16, 1756-IA16K, 1756-IA16I, 1756-IA16IK, 1756-IA32, 1756-IA32K, 1756-IM16I, 1756-IM16IK, 1756-IN16, 1756-OA8, 1756-OA8D, 1756-OA8E, 1756-OA16, 1756-OA16K, 1756-OA16I, 1756-OA16IK, 1756-ON8 DC

Digital Catalog Numbers: 1756-IB16, 1756-IB16K, 1756-IB16D, 1756-IB16DK, 1756-IB16I, 1756-IB16IK, 1756-IB16IF, 1756-IB16IFK, 1756-IB16ISOE, 1756-IB16ISOEK, 1756-IB32, 1756-IB32K, 1756-IC16, 1756-IG16, 1756-IH16I, 1756-IH16ISOE, 1756-IV16, 1756-IV16K, 1756-IV32, 1756-IV32K, 1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16DK, 1756-OB16E, 1756-OB16EK, 1756-OB16I, 1756-OB16IEF, 1756-OB16IEFK, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32, 1756-OB32K, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-OV16E, 1756-OV32E

Features of Allen Bradley 1756-OF4 ControlLogix Analog Output Module

The 1756-OF4 ControlLogix Analog Output Module is a four-channel output module that provides high-precision analog output signals for a wide range of industrial control applications. Some of the key features of this module include:

  1. High-precision analog output signals: The module provides high-precision analog output signals that are accurate to within 0.1% of the full-scale range. This makes it ideal for applications that require precise control over industrial processes.
  2. Four channels: The module has four analog output channels, each capable of providing a voltage or current output signal. This allows it to be used in a wide range of industrial control applications.
  3. Expandable: The module is expandable, which means that additional modules can be added to the system as needed to provide additional analog output channels.
  4. Easy to use: The module is easy to use and can be configured using the ControlLogix programming software. This makes it easy to integrate into existing industrial control systems.

Applications of Allen Bradley 1756-OF4 ControlLogix Analog Output Module

The Allen Bradley 1756-OF4 ControlLogix Analog Output Module is used in a wide range of industrial control applications. Some of the most common applications include:

  1. Process control: The module is used to provide precise control over industrial processes such as temperature control, pressure control, and flow control.
  2. Motion control: The module is used to provide precise control over industrial motion control applications such as servo control and motor control.
  3. Test and measurement: The module is used in test and measurement applications to provide high-precision analog output signals for data acquisition and analysis.
  4. Manufacturing: The module is used in manufacturing applications to provide precise control over industrial processes such as material handling, assembly, and packaging.

Conclusion

The Allen Bradley 1756-OF4 ControlLogix Analog Output Module is a high-performance module designed for use in industrial automation applications. It provides high-precision analog output signals for a wide range of industrial control applications, making it ideal for use in process control, motion control, test and measurement, and manufacturing applications. With its ease of use and expandability, this module is a valuable addition to any industrial control system.
