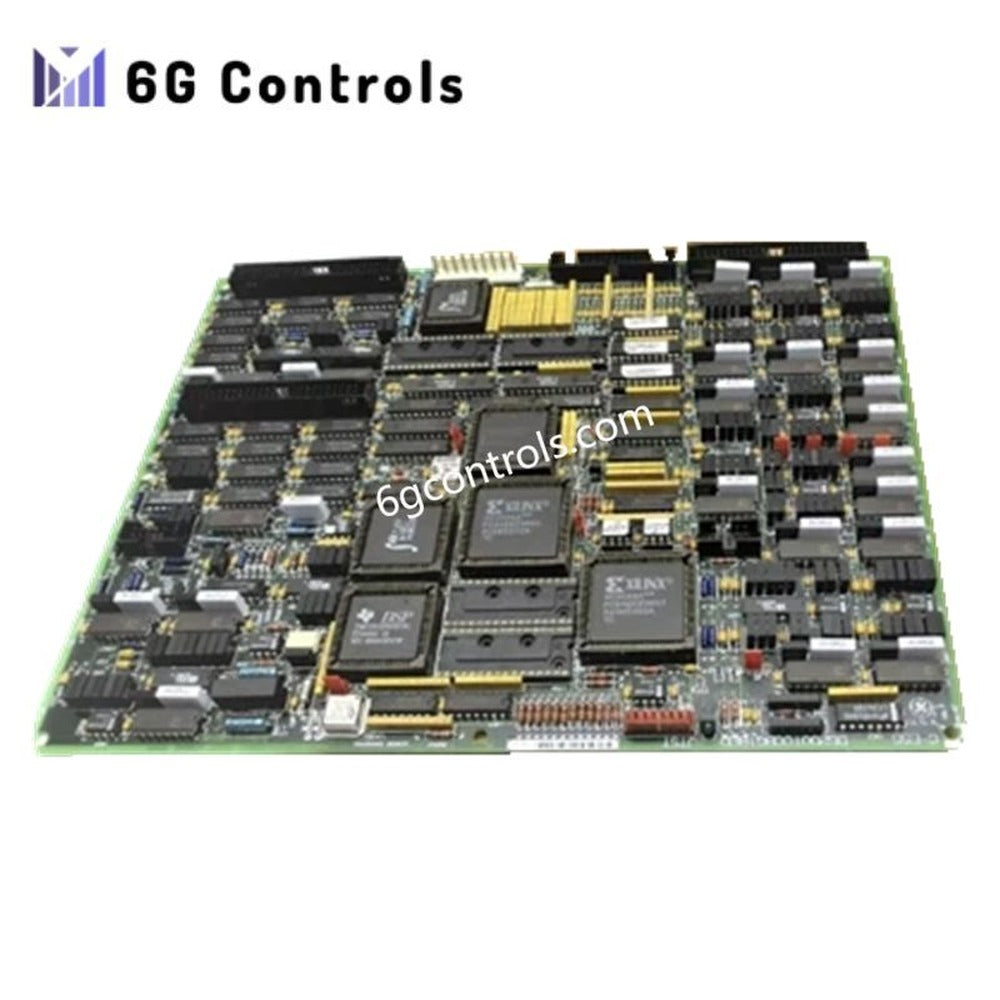

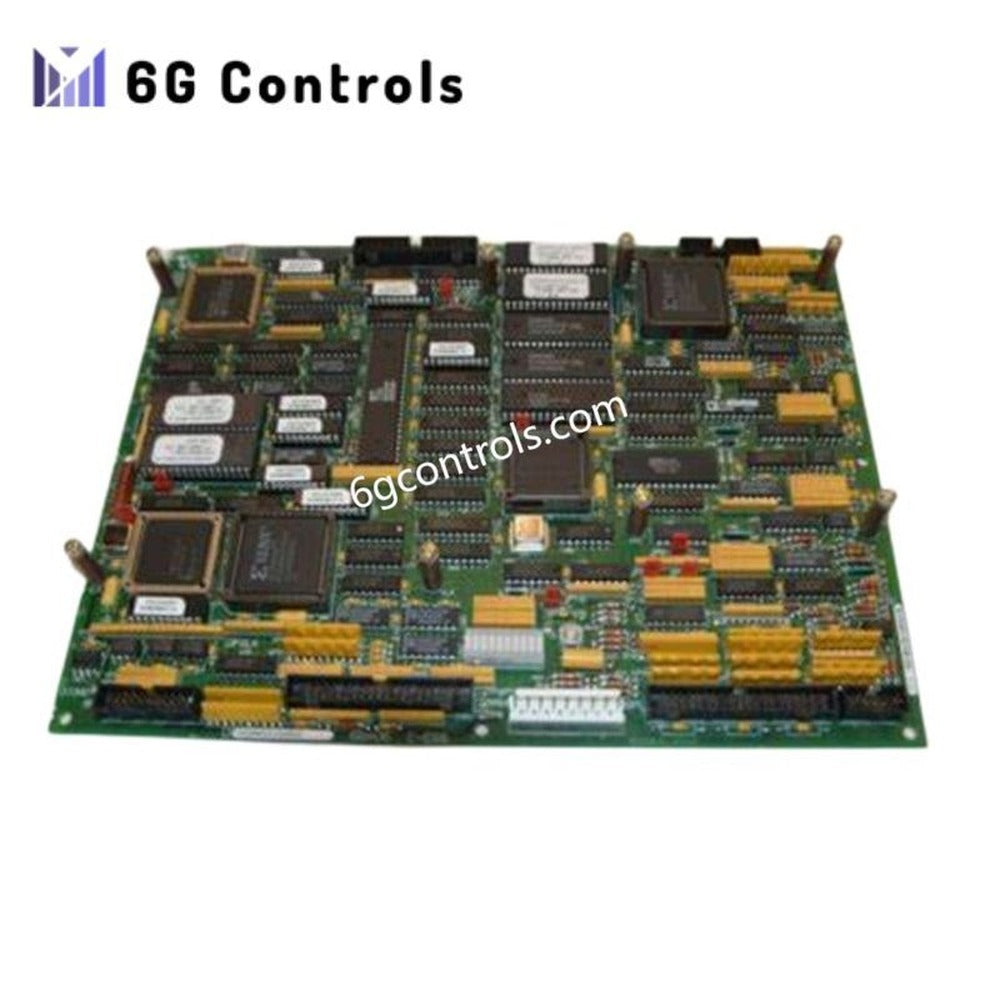

GE DS200TCCBG1B Extended Analog I/O Board Brand New

Overview

The GE DS200TCCBG1B is an Extended Analog I/O Board for Mark V turbine control systems. It processes analog signals from sensors and transmitters, ensuring accurate turbine monitoring. This board upgrades the DS200TCCBG1A with improved firmware and enhanced components for higher reliability. It installs in the R5 core of the Mark V cabinet and works with termination boards like DS200TBCBG1A. The board enables precise control of temperature, pressure, flow, and other analog parameters.

Technical Specifications

• Board Type: Extended Analog I/O Board (TCCB)
• Processor: Intel 80196 microprocessor
• Memory: Multiple PROM modules for firmware storage
• Connectors: 2 × 50-pin connectors (IDs: JCC and JDD)
• LED Indicator: 1 LED visible from board edge
• Jumpers: 3 configurable jumpers (JP1, JP2, JP3) for signal routing
• Signal Types: Supports RTD, 4–20 mA, and other analog inputs
• Communication: Interfaces with other boards via ribbon cables and backplane
• Dimensions: ~9.2 × 6.3 inches (standard Mark V PCB size)
• Mounting: Rack-mounted in the control cabinet
• Coating: Normal industrial PCB coating
• Weight: 0.6 kg
• Operating Temperature: –30°C to +65°C
• Humidity: 5% to 95% non-condensing
