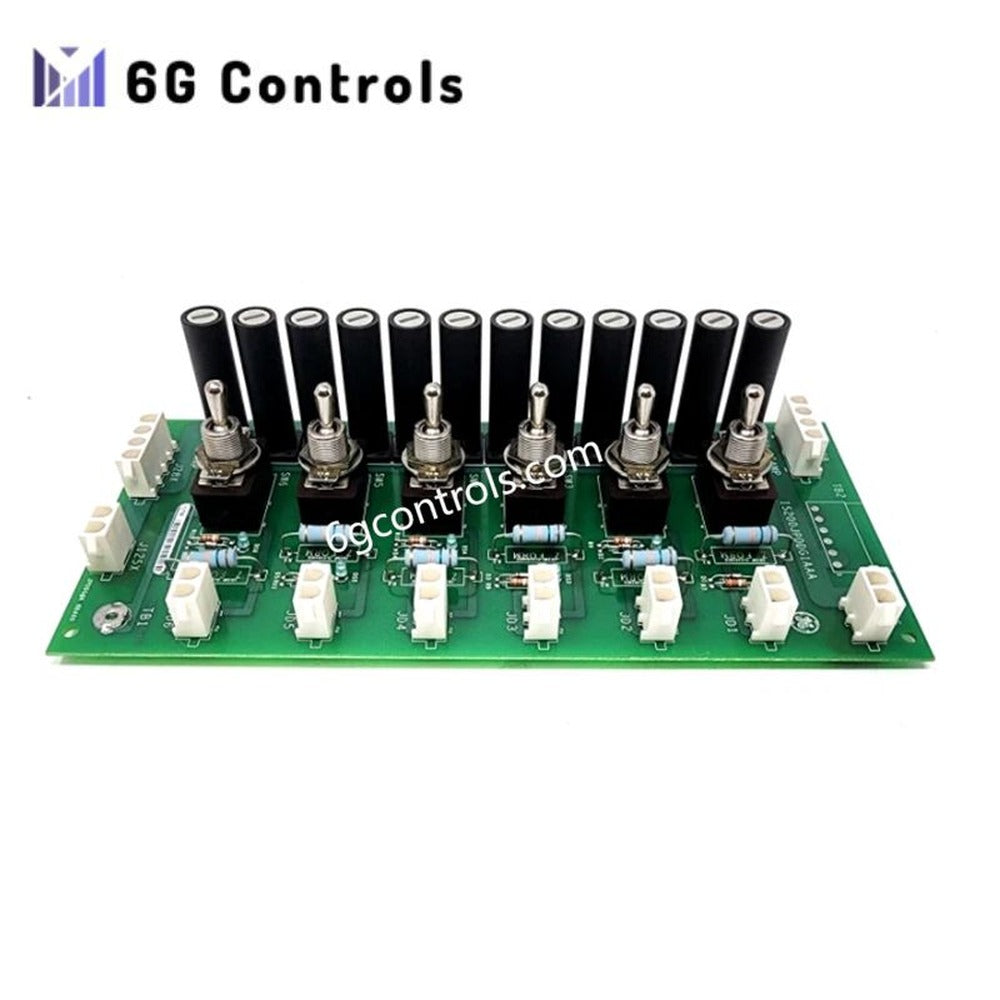

GE IS200JPDDG1A DC Power Distribution Board Brand New

Overview

The GE IS200JPDDG1A is a DC Power Distribution Board for GE Mark VIe control systems. It delivers reliable isolated DC power to relays, solenoids, and contact wetting circuits. The board protects connected devices and manages power flow efficiently in power generation, oil refining, and heavy manufacturing environments. Its robust design ensures stable operation under industrial conditions.

Technical Specifications

Electrical Characteristics

• Input Voltage: Supports 125V DC and 24V DC
• Power Distribution: Routes isolated DC power to control and I/O functions
• Output Protection: Each output includes a 15A, 250V fuse, manual switch, and indicator lamp

Outputs & Fusing

• Total Output Fuses: 12 fuses arranged in pairs
• Output Type: DC relay and solenoid control
• Contact Wetting: Supported

Physical & Environmental

• Mounting: DIN-rail compatible with plastic installation plate
• Operating Temperature: –30°C to +65°C
• Protection: Basic conformal coating with IP20 terminal protection
