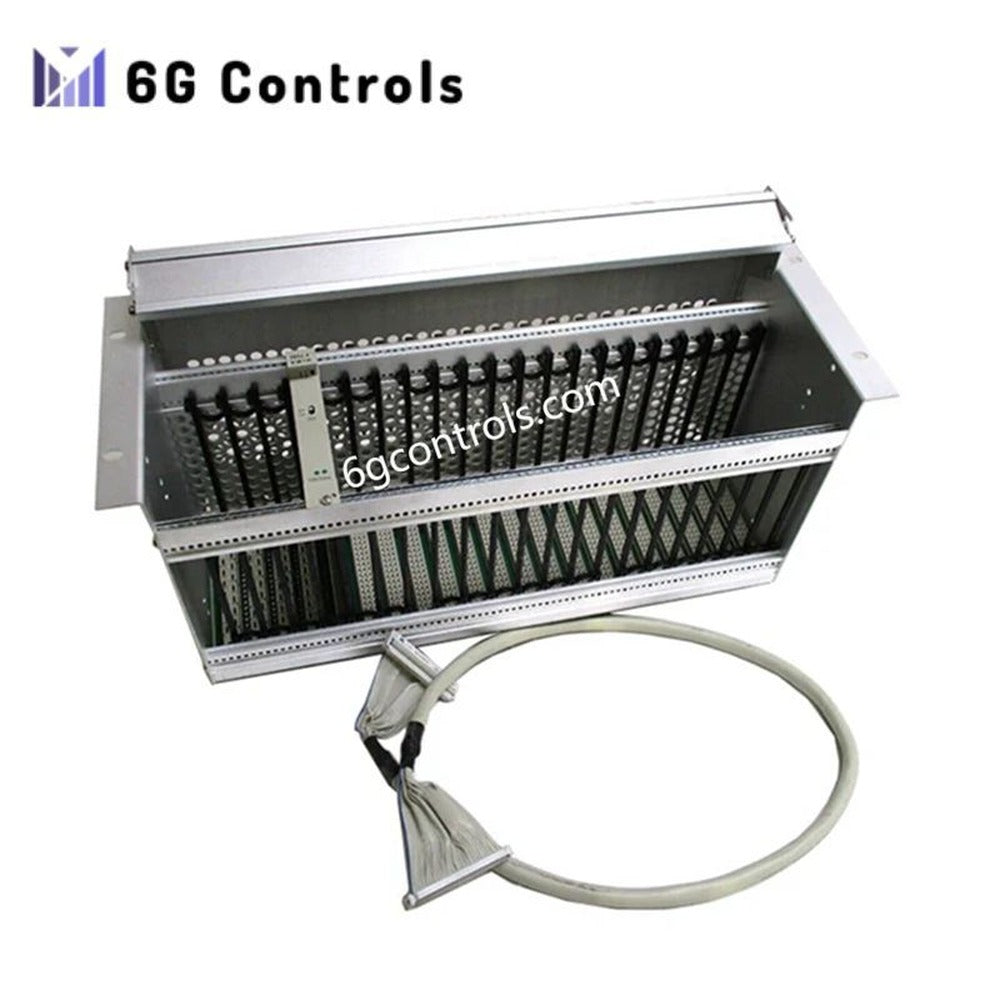

HIMA B9302-0.5 16-slot I/O Rack Most Favorable

Overview

The HIMA B9302-0.5 is a modular 16-slot I/O rack for industrial automation and safety systems. It provides a central platform to mount and connect HIMA I/O modules. Moreover, it routes signals, supplies power, and links modules to the central processor. The rack supports flexible I/O configurations and ensures reliable communication in critical environments.

Technical Specifications

Slot Capacity

• 16 I/O slots for digital and analog modules
• Supports relay, transistor, and sensor interface modules

Power Supply

• Input Voltage: 110–240 VAC
• Power Rating: 0.5 kW
• Output Voltage: 0–480 VAC
• Output Frequency: 0–400 Hz
• Output Current: 0.5–4 A
• Efficiency: Up to 98%

Communication Interfaces

• RS485 and Ethernet
• Integrates seamlessly with HIMA CPUs and external systems

Cable Length

• Standard: 0.5 meters
• Optional: 1 meter (B9302-1)
• Custom lengths via B9302-X variants

Physical Dimensions

• Size: 17.8 cm × 47.8 cm × 30.5 cm
• Weight: 2.9 kg

Environmental Ratings

• Operating Temperature: Up to 60°C
• Protection Class: IP20
• Mounting: Standard 19-inch rack installation
