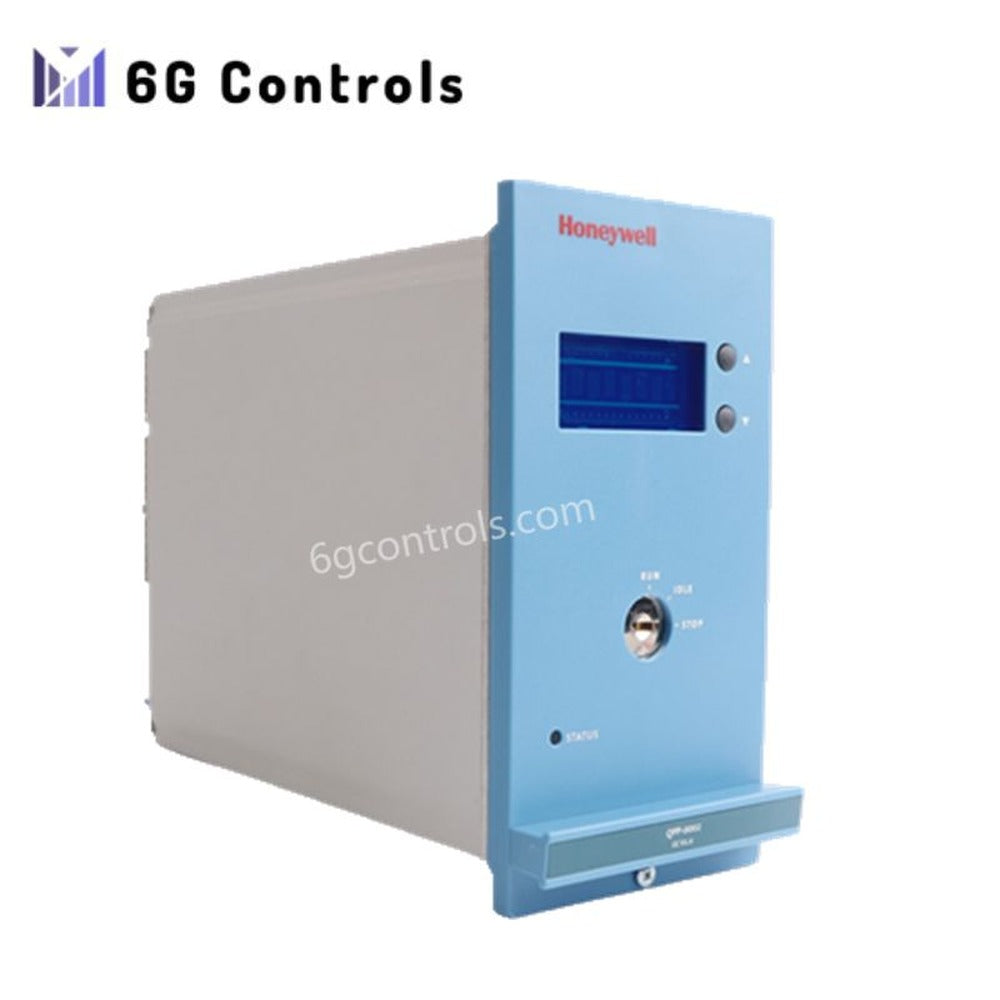

Honeywell FC-QPP-0002 CC V1.2 Quad Processor Module

Overview

The Honeywell FC-QPP-0002 V1.2 is a Quad Processor Module designed for high-end industrial automation. It combines powerful processing, secure operation, and rugged reliability. This module supports demanding control environments such as power generation, petrochemical plants, and critical manufacturing systems.

Technical Specifications

Processor & Memory

• Processor: Quad-Core, 1.2 GHz
• Memory: 4GB DDR4
• Storage: 64GB SSD

Interfaces

• Ethernet Ports: 4
• USB Ports: 2
• Serial Ports: 2

Power Supply

• Primary Input: 12V DC
• Alternate Input: 24V DC (–15% to +30%)
• 24V Input Current: Max 25 mA
• 5V Input Voltage: 5V DC ± 5%
• 5V Input Current: Max 1.2 A

Input/Output Characteristics

• Output Voltage Range: 15–31 V DC
• Output Resistance: ~1.1 kΩ
• Short Circuit Protection: Continuous
• High Input Voltage: 15–32 V DC
• Low Input Voltage: <4 V (reverse polarity protected)
• Input Current: ~8 mA @ 24 V DC
• Output Current: 750 mA per output

Environmental Conditions

• Operating Temperature (inside/outside): –5°C to +70°C
• Storage Temperature: –40°C to +85°C
• Relative Humidity: 10–95% (non-condensing)

Mechanical Data

• Dimensions (H × W × D): 176 × 88.5 × 212 mm
• Weight: 1.3 kg
