Product Overview

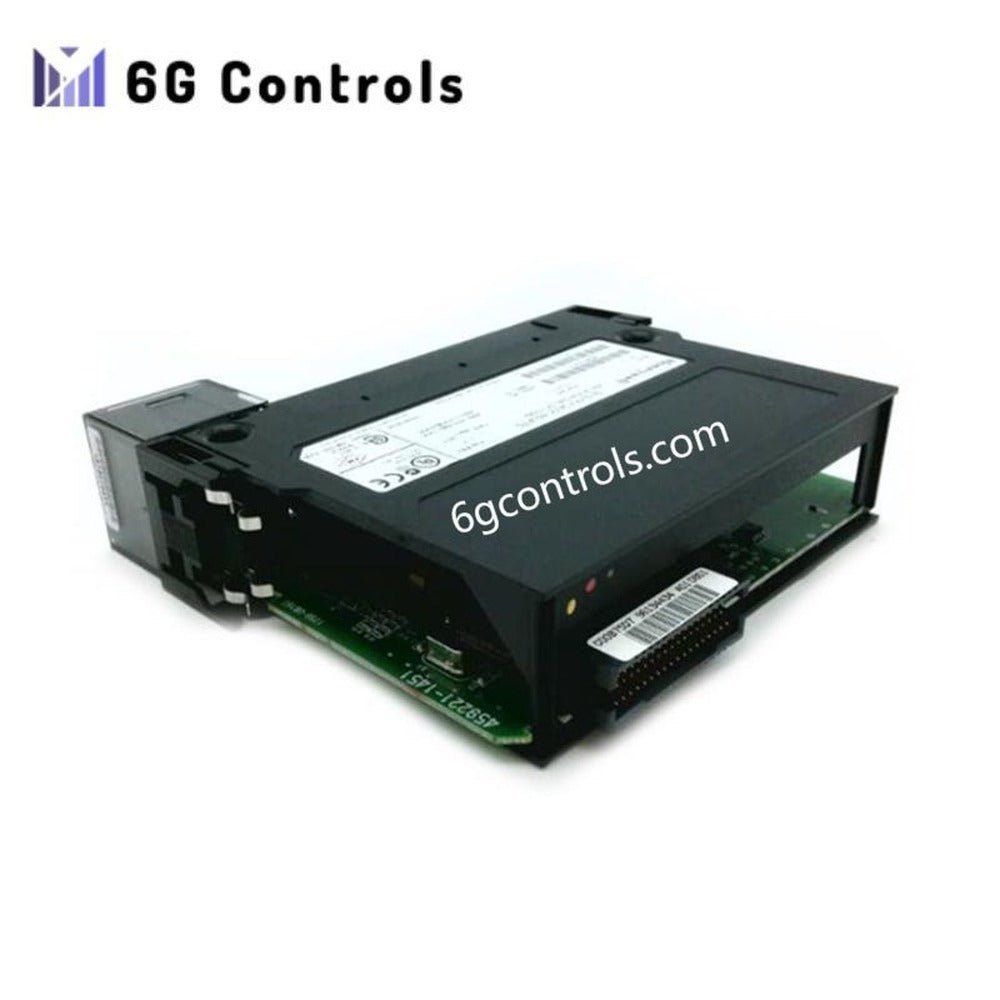

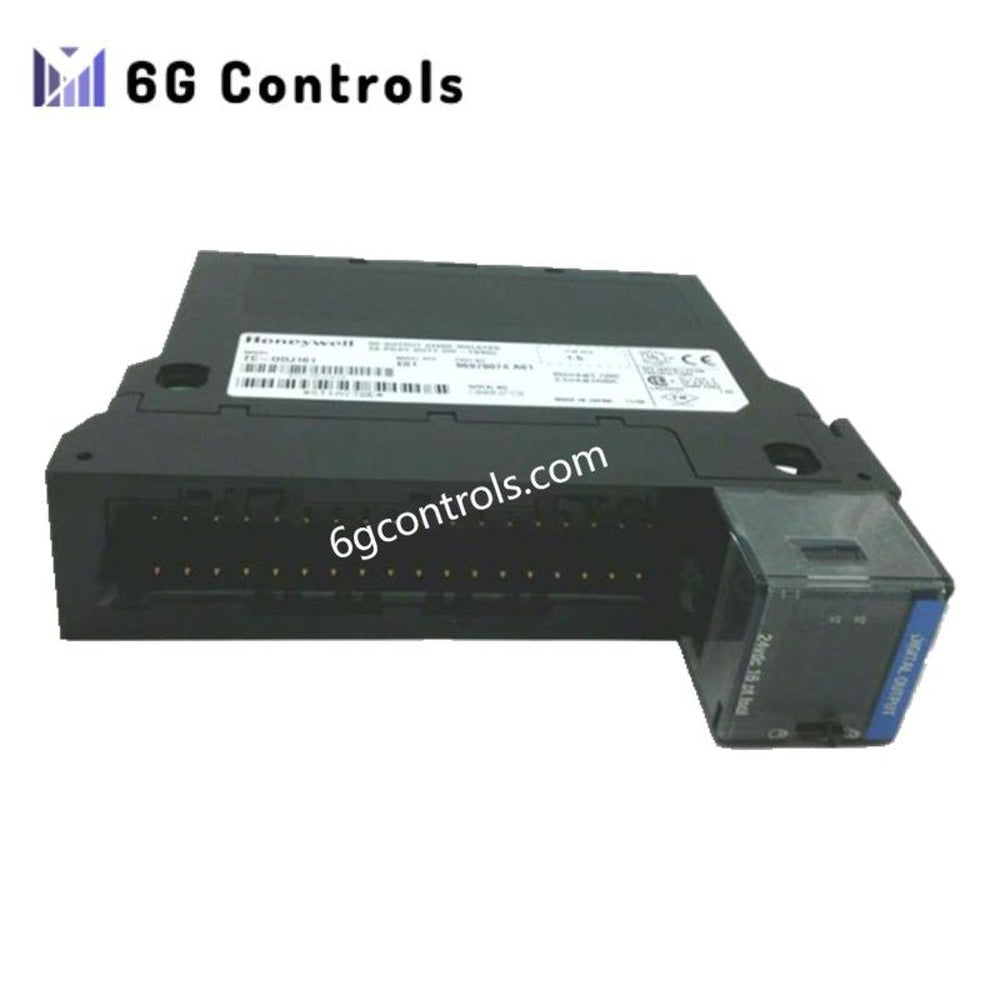

The Honeywell TK-ODJ161 is a high-performance DC discrete output module designed for precise industrial control. It converts digital control signals into reliable 24V DC outputs to operate relays, solenoids, and actuators. Moreover, it ensures dependable performance in harsh industrial environments, making it suitable for automation, process control, and safety applications. Its compact design allows both DIN rail and rack mounting, ensuring seamless integration into Honeywell TDC 3000 and Experion PKS systems.
Key Features and Benefits
- Provides 16 isolated DC output channels, supporting up to 0.5 A per channel.
- Channel-to-channel and channel-to-ground isolation improves operational safety.
- Built-in diagnostics detect faults and indicate status, simplifying maintenance.
- Compatible with Honeywell TDC 3000 and Experion PKS control platforms.
- Compact dimensions and lightweight design optimize space in control cabinets.
- Supports industrial automation, process manufacturing, and safety system applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | DC Discrete Output Module |
| Output Voltage | 24 V DC nominal |
| Number of Channels | 16 isolated channels |
| Output Current | Up to 0.5 A per channel, 8 A maximum total |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostics | Built-in fault detection and status indication |
| Weight | 0.44 lbs |
| Mounting | DIN rail or rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Country of Origin | USA |
| Warranty | Typically 12 months from authorized distributors |
Typical Applications
- Industrial process control and automation systems
- Manufacturing lines requiring reliable 24V DC outputs
- Safety and emergency shutdown systems
- Remote actuation of relays, solenoids, and actuators
- Integration with Honeywell TDC 3000 and Experion PKS platforms
FAQ
Q: How many output channels does the TK-ODJ161 support?
A: The module provides 16 isolated DC output channels.
Q: What is the maximum output current per channel?
A: Each channel supports up to 0.5 A, with a maximum total of 8 A.
Q: Can this module operate in extreme temperatures?
A: Yes, it operates between 0°C and 60°C, with storage up to 85°C.
Q: Which Honeywell systems are compatible with TK-ODJ161?
A: It is compatible with Honeywell TDC 3000 and Experion PKS platforms.
Q: Does the module provide fault detection?
A: Yes, built-in diagnostics detect faults and indicate channel status.
