170AAI14000 Schneider Electric Analog Input Base

Schneider Electric 170AAI14000 Analog Input Base

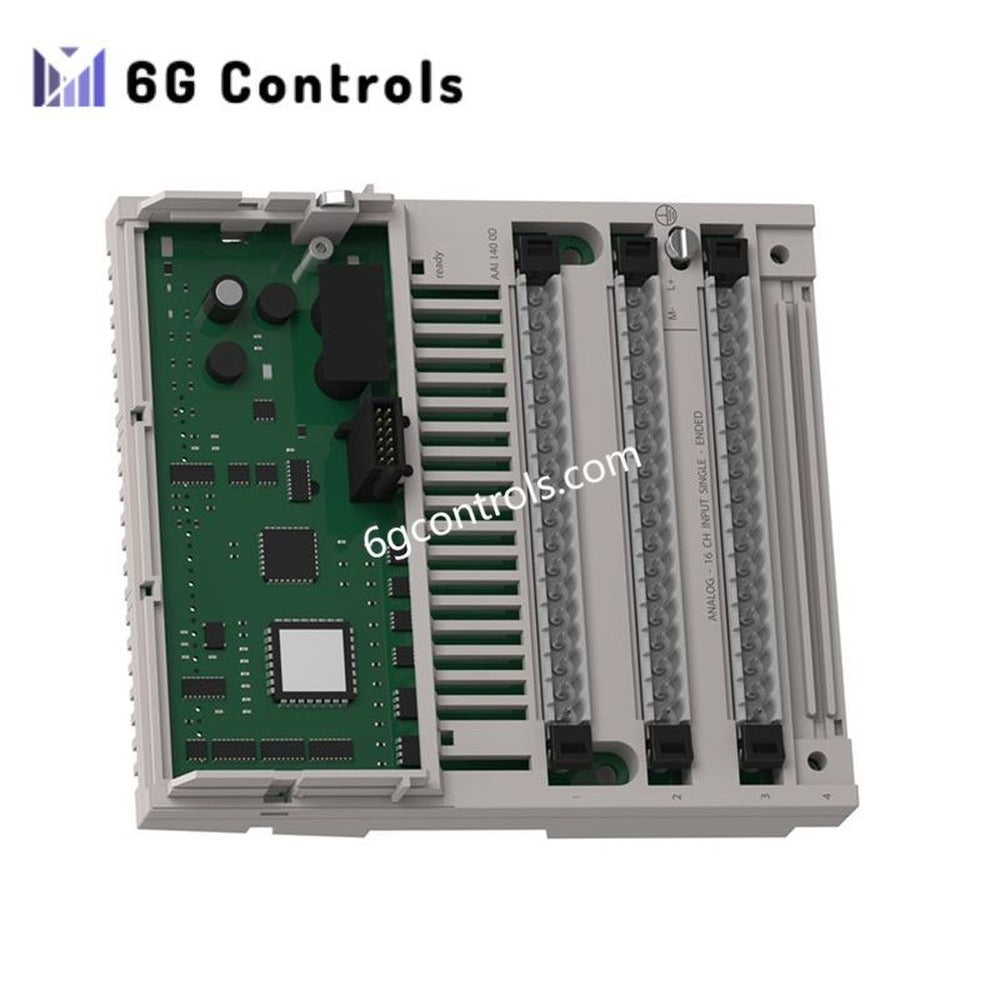

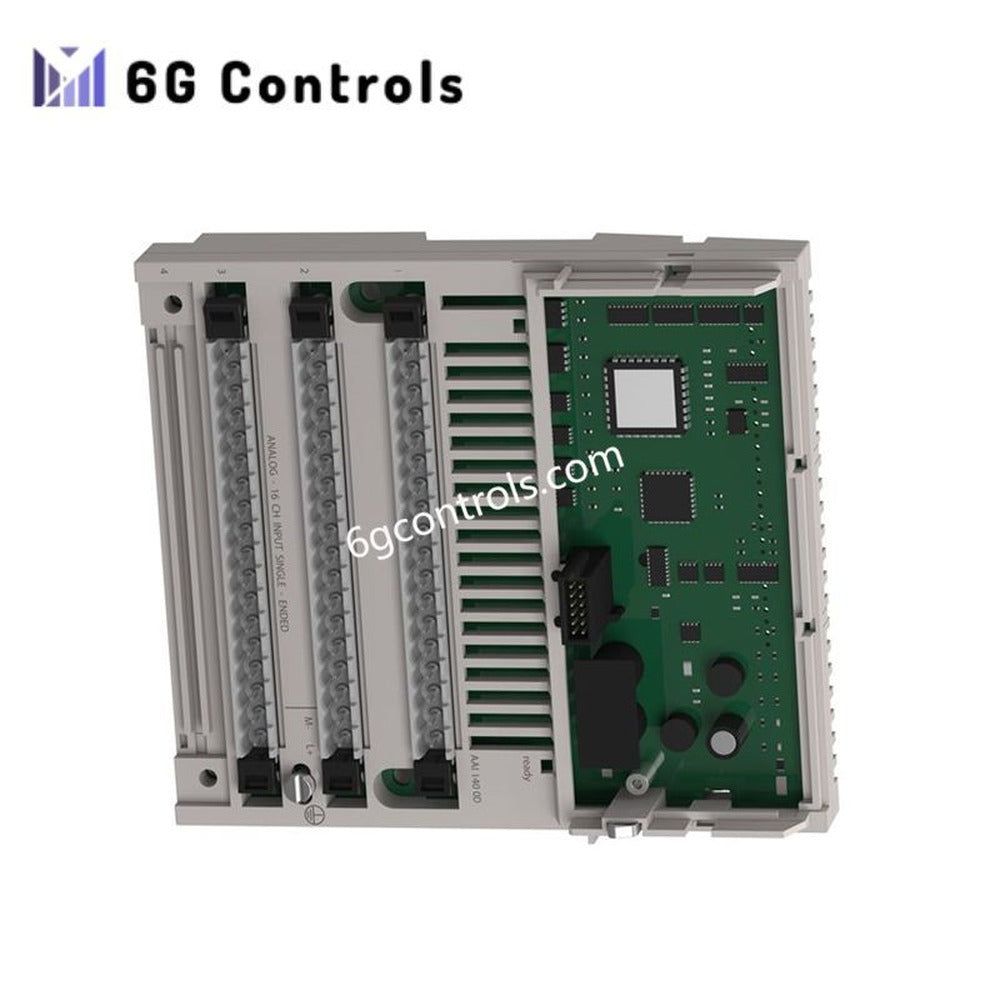

Configured for analog signal acquisition in Modicon Momentum distributed I/O networks, the Schneider Electric 170AAI14000 (170AAI14000 analog input base) provides direct electrical execution for voltage and current input processing with isolated channel architecture.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single fixed catalog number without configurable suffix segmentation. No additional hardware revision or option matrix is specified for this model.

Hardware Specifications

Profinet and Backplane Communication Characteristics

The 170AAI14000 module integrates into the Modicon Momentum distributed I/O structure through Momentum backplane coupling architecture. Input acquisition cycles operate with a 25 ms update interval while maintaining deterministic transfer behavior between the analogue acquisition stage and the distributed controller interface.

The module supports high-density analogue aggregation through 16 isolated input channels within a compact IP20 monoblock housing. Internal isolation barriers between channels and ground reduce ground loop propagation during mixed analogue signal deployment involving current transmitters and voltage reference devices.

Removable terminal blocks permit field-side wiring separation during maintenance procedures without disturbing the Momentum base assembly. Internal reverse polarity protection limits damage exposure from incorrect DC supply termination during commissioning activities.

Frequently Asked Questions

Q: Does the 170AAI14000 support hot swapping while the Momentum rack remains energized?

A: The supplied documentation does not specify live insertion capability. Field replacement should therefore be performed under de-energized conditions to prevent analogue signal corruption or backplane communication interruption.

Q: What analogue signal types can be connected simultaneously?

A: The module supports single-ended 4-20 mA, +/- 10 V, and +/- 5 V analogue inputs. Channel configuration must follow the applicable Momentum system configuration parameters.

Q: How should shielding and grounding be handled for low-level analogue signals?

A: Shield continuity should be terminated at a single grounding reference point to minimize induced noise currents. Signal wiring should remain physically separated from high-voltage motor and switching conductors.
