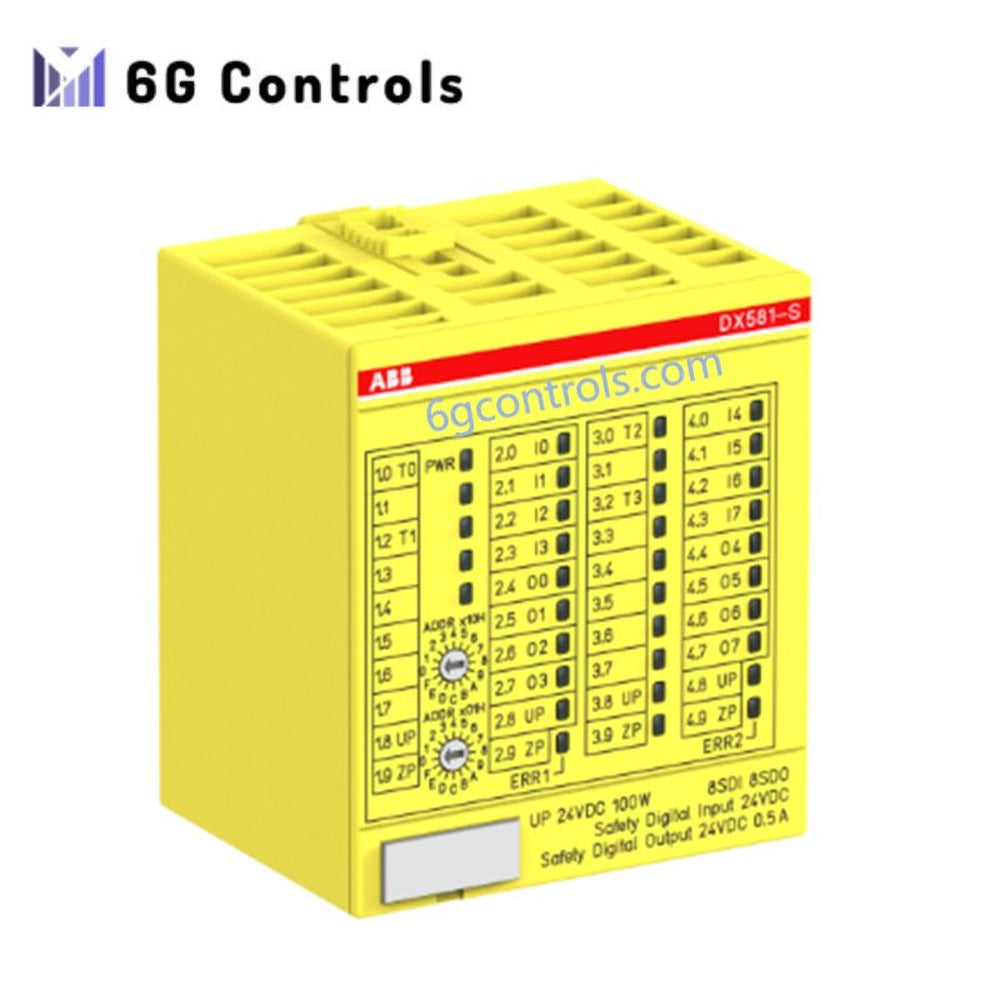

ABB DX581-S 1SAP284100R0001 Digital I/O Module

General Information

• Extended Product Type: DX581-S
• Product ID: 1SAP284100R0001
• ABB Type Designation: DX581-S
• EAN: 4016779681803
• Catalog Description: Digital input/output module. 8 SDI SIL2 / 4 SDI SIL3, 24 VDC. 8 SDO SIL2/3, 24 VDC 0.5 A. 4 pulse outputs.
• Long Description: DX581-S: S500-S digital I/O module with 8 SDI SIL2 / 4 SDI SIL3 (24 VDC), 8 SDO SIL2/3 (24 VDC, 0.5 A), 4 pulse outputs, 1-wire.

Ordering

• CN8 Code: 85389091
• Invoice Description: Digital input/output module. 8 SDI SIL2 / 4 SDI SIL3, 24 VDC. 8 SDO SIL2/3, 24 VDC 0.5 A. 4 pulse outputs.
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: Piece

Dimensions

• Net Weight: 0.13 kg
• Net Depth / Length: 62 mm
• Net Height: 76 mm
• Net Width: 67.5 mm
• Gross Weight: 0.159 kg
• Package Dimensions (L x W x H): 84 × 71 × 72 mm
• Package Level 1 Units: 1 carton

Technical Specifications

• Function: 8 SDI SIL2 / 4 SDI SIL3, 24 VDC. 8 SDO SIL2/3, 24 VDC 0.5 A. 4 pulse outputs.
• Digital Inputs: 8
• Digital Outputs: 8
• Configurable I/Os: 8
• Input Voltage Type: DC
• Input Current: 7 mA
• Input Voltage Range: 0 … 30 V
• Delay Time (τ): 1 … 500 ms
• Output Type: Transistor
• Output Voltage Type: DC
• Output Current: 0.5 A
• Output Voltage Range: 20.4 … 28.8 V
• Degree of Protection: IP20
• Safety Integrity Level (SIL): 2
• Supply Voltage: 20.4 … 28.8 V DC

Additional Information

• Product Main Type: DX581
• Product Name: Distributed Automation I/Os

External Classifications and Standards

• eClass: 27-24-22-02
• ETIM 8/9/10: EC001419 – PLC digital I/O module
• UNSPSC: 32151802

Environmental

• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No external dimension > 50 cm)
