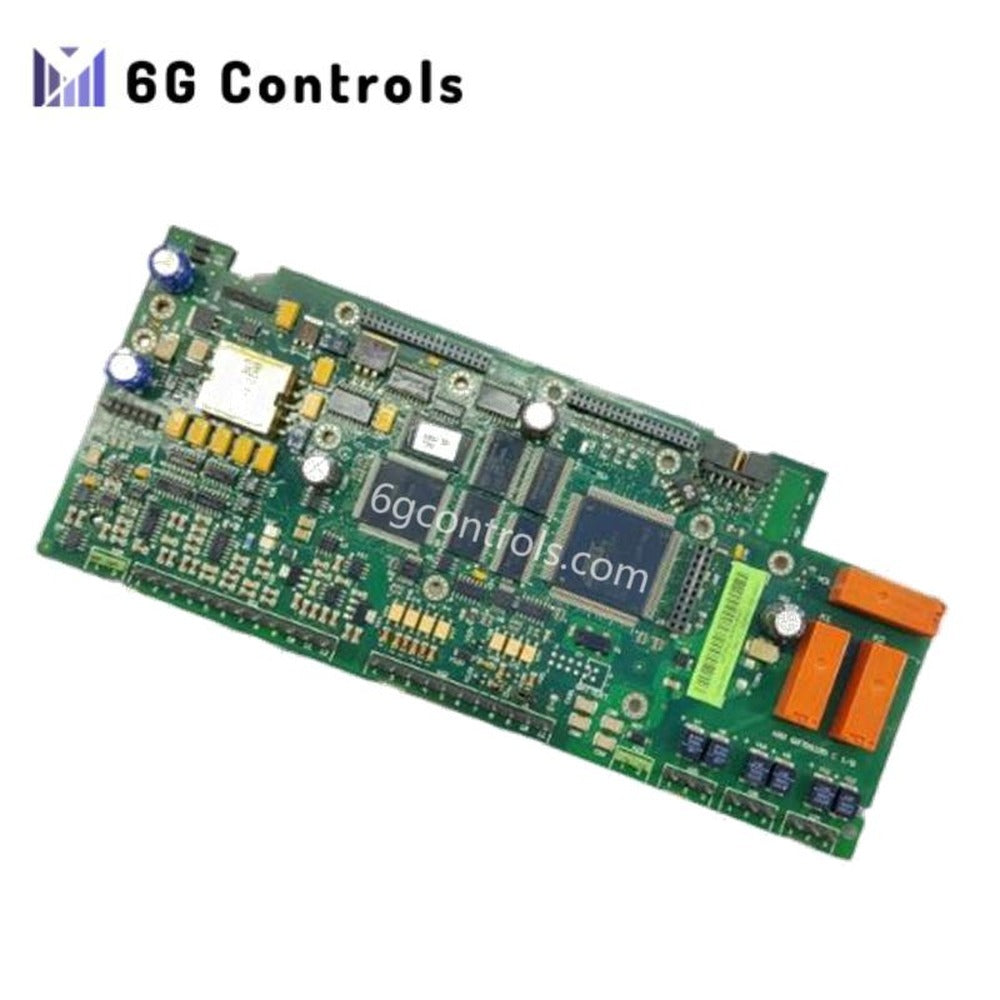

ABB RMIO-11C Control Board Most Favorable In Stock

Overview

The ABB RMIO-11C is a compact, high-performance control board designed for the ABB ACS800 series AC drives. It ensures seamless control, communication, and feedback processing within drive systems. With robust digital inputs, short-circuit proof power output, and optional protective coating, it operates reliably in demanding environments.

Technical Specifications

• Product Type: Control Board
• Product ID: 68789010
• Application: Designed for ABB ACS800 AC drive systems
• Voltage Class Compatibility: 230V / 500V drive systems
• Digital Inputs:
  • DI1–DI5 Input Current: ~10 mA
  • DI6 Input Current: ~5 mA
  • Filtering Time Constant: 1 ms
• Power Output (X23):
  • Rated Output: 24 VDC ±10%
  • Protection: Short-circuit proof
• Board Type: Single-layer PCB
• Frame Size: Undefined
• Environmental Protection: Coated version available for harsh conditions
• Connectivity:
  • Terminal units
  • Pre-fabricated ABB cables
• Mechanical Details:
  • Module Dimensions: 20 cm × 15 cm × 1.2 cm
  • ​Weight: 0.66 kg
• Customs Tariff Number: 85049090
• Environmental Classification: Not in WEEE scope
• Minimum Order Quantity: 1 piece
