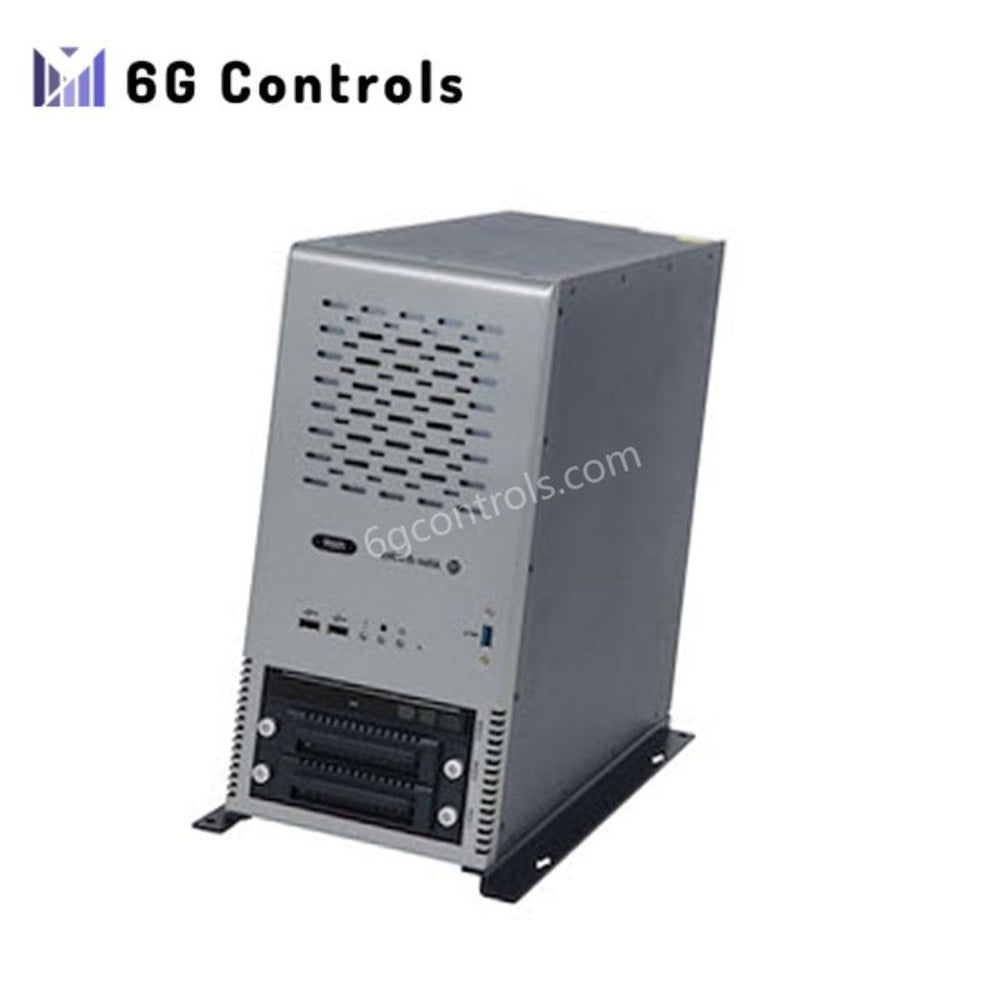

Allen Bradley 6177R-MMPW7 VersaView 750R Non-Display Industrial PC

Overview

The Allen-Bradley 6177R-MMPW7 is a VersaView 750R non-display industrial PC designed for machine mounting. It supports high-performance control and monitoring in demanding environments. Engineers use this rugged system in automation, process control, and manufacturing applications. It integrates seamlessly with Rockwell Automation software platforms and industrial networks. This model combines a compact, durable chassis with advanced computing power. Its multiple I/O ports, expandability, and reliable performance make it ideal for panel-free applications where space and reliability matter.

Technical Specifications

• Processor: Intel Core i3-2120, 3.3 GHz, Dual-Core
• Memory: 4 GB DDR3 RAM (expandable up to 32 GB)
• Storage: 500 GB 3.5" SATA HDD (RAID 0/1 supported on select models)
• Graphics: Integrated Intel HD Graphics 2000
• Operating System: Windows 7 Professional SP1 (64-bit)
• Optical Drive: DVD-RW
• Power Supply: 100–240V AC input, 50–60 Hz, auto-ranging
• USB Ports: 7 x USB 2.0, 2 x USB 3.0
• Ethernet: 2 x 10/100/1000 Mbps LAN ports
• Video Output: 1 x DVI-I, 1 x DVI-D (VGA supported via adapter)
• Mounting Type: Machine-mount design
• Operating Temperature: 0 to 50 °C (32 to 122 °F)
• Vibration Resistance: 1G during operation
• Shock Resistance: 15G (operating), 30G (non-operating)
• Dimensions: 360 x 170 x 381 mm (14.17 x 6.69 x 15.01 inches)
• Weight: 12.00 lbs
