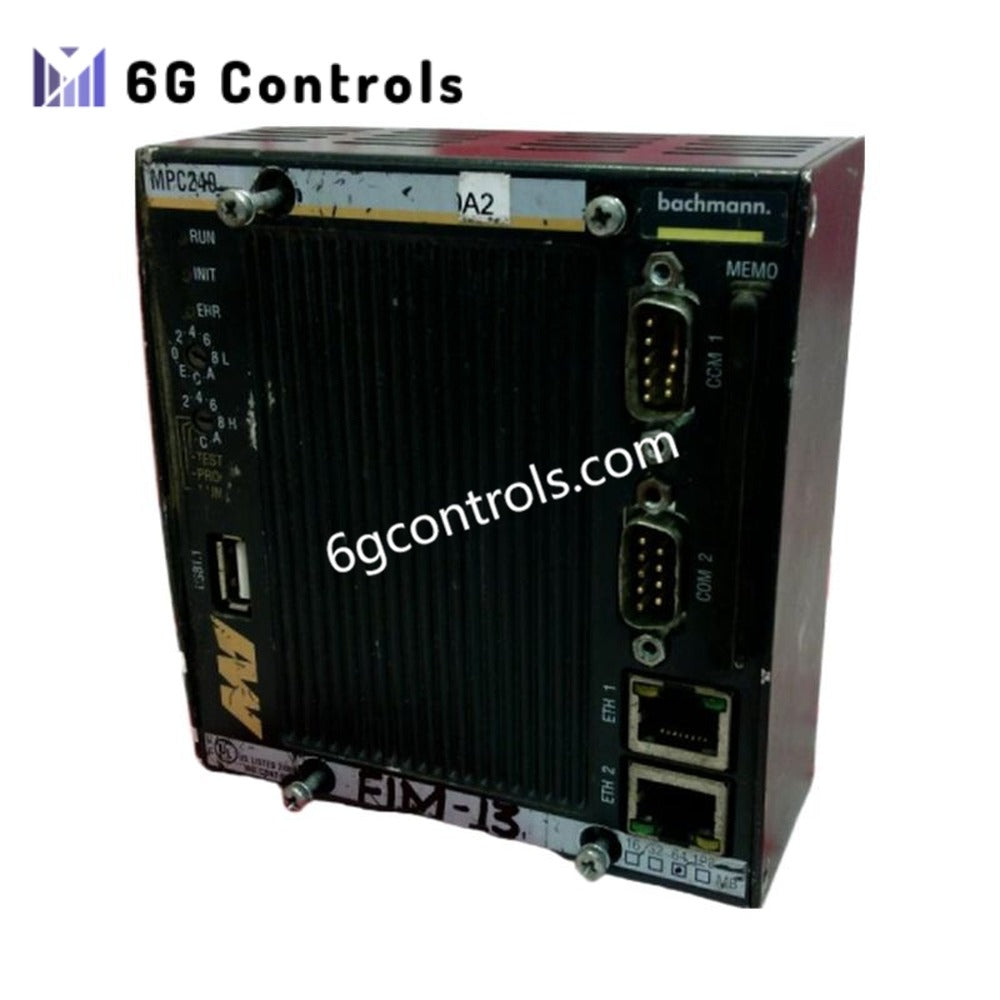

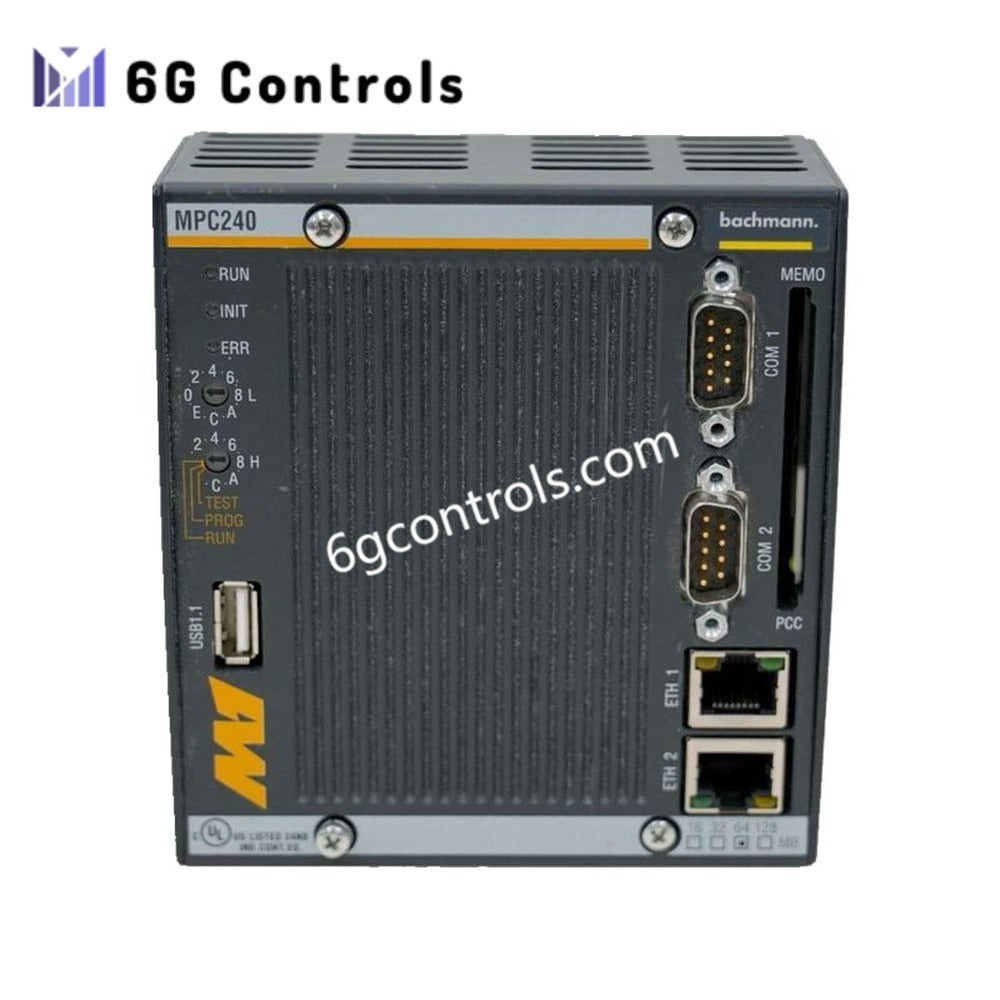

Bachmann MPC240/64MB CPU Module Most Favorable

Overview

The MPC240/64MB from Bachmann Electronic GmbH belongs to the MPC240 series of processor modules. It provides high-speed control for demanding industrial environments. For example, it supports energy, manufacturing, and transportation applications efficiently. Its compact design ensures robust performance and seamless integration into distributed automation networks. Moreover, it handles real-time control while maintaining reliable operation under harsh conditions.

Technical Specifications

• Model: MPC240/64MB
• Manufacturer: Bachmann Electronic GmbH
• Processor: PowerPC 405, 240 MHz
• RAM (Working Memory): 64 MB DRAM
• Flash Memory (Program Memory): 512 MB CompactFlash (CF)
• nvRAM-0 (Battery-backed Data Memory): 512 kB SRAM
• nvRAM-1 (Non-volatile Data Memory): 64 kB nvRAM
• Internal FLASH: Typically 8 MB, 4 MB for system software
• Serial Interfaces: 1x RS232, 1x RS232/RS422/RS485
• Ethernet Interfaces: Typically 2x 10/100 Base-TX
• USB Interface: 1x USB
• Communication Protocols: Ethernet, Modbus, TCP/IP
• Power Supply: 5 V, ±15 V via backplane (requires external module)
• Operating Voltage: 24 V DC
• Operating Temperature: 0°C to +60°C (fanless)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% (without condensation)
• Dimensions: 100 mm × 50 mm × 25 mm
• Weight: 1.43 lbs
• Mounting Type: DIN rail
