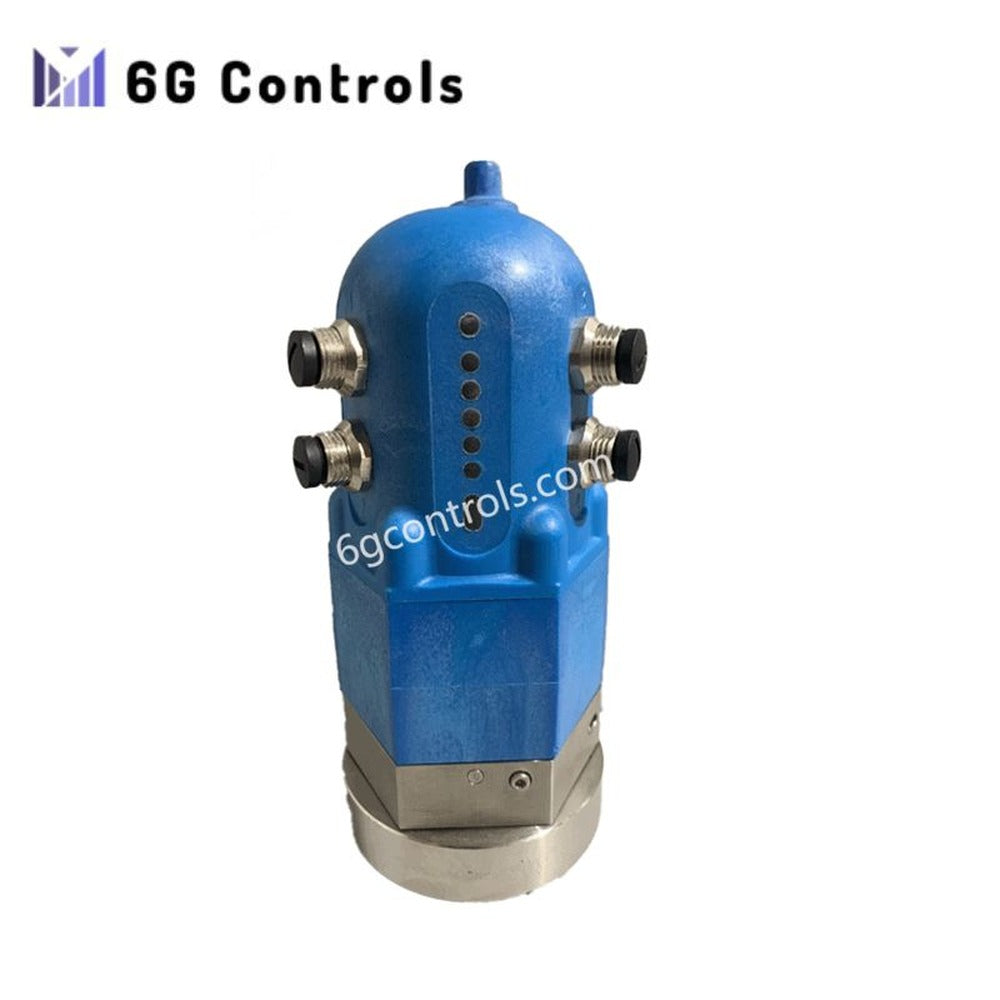

Bently Nevada 185410-01 Wireless Sensor Interface Module

Overview

The Bently Nevada 185410-01 Wireless Sensor Interface Module (wSIM) belongs to the Essential Insight.mesh Wireless System. It functions as a wireless vibration and temperature sensor. The module enables continuous monitoring of industrial assets in remote or costly wired locations. Consequently, it helps companies strengthen condition-based monitoring programs, improve reliability, and lower maintenance costs.

Technical Specifications

• Model Number: 185410-01
• Wireless Protocol: ISA100.11a (IEC 62734 compliant)
• Frequency Band: 2.4 GHz ISM
• Transmit Power: +20 dBm (100 mW max)
• Receiver Sensitivity: –100 dBm typical
• Coverage Range: Up to 200 m line-of-sight; ~30 m indoors
• Data Rate: 250 kbps PHY; mesh packets up to 40 kbps
• Network Capacity: Supports up to 100 sensor nodes per gateway
• Power Input: 24 VDC ±10% @ 100 mA
• Power Consumption: ≤ 2.5 W peak
• Antenna Connector: RP-SMA female
• LED Indicators: Power (green), Network Link (yellow), Mesh Health (red/green)
• Operating Temperature: –20°C to +60°C
• Storage Temperature: –40°C to +85°C
• Humidity Range: ≤ 95% RH, non-condensing
• Enclosure Rating: IP30 standard; optional IP65 kit available
• Dimensions: 33 × 25 × 4 cm
• Weight: 0.5 kg
