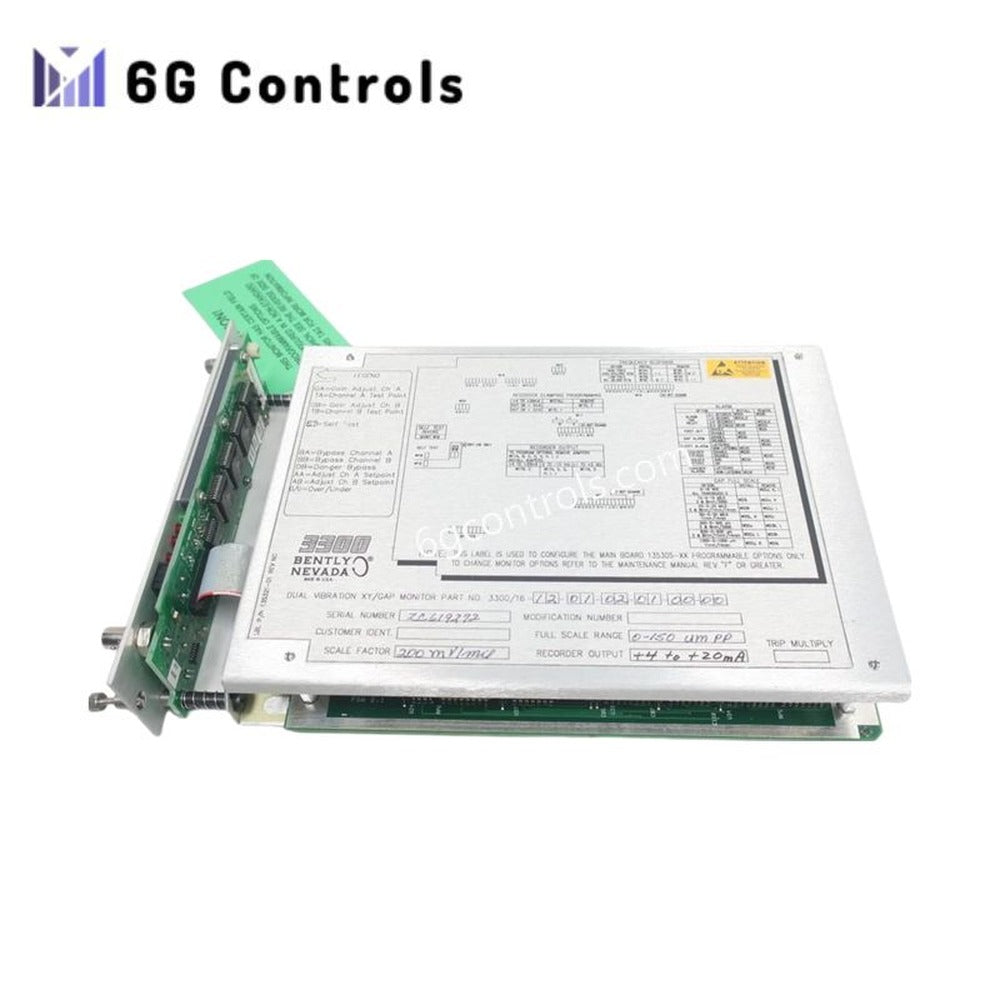

Bently Nevada 3300/16-12-01-02-00-00-00 XY/Gap Dual Vibration Monitor

Overview

The Bently Nevada 3300/16-12-01-02-00-00-00 XY/Gap Dual Vibration Monitor is part of the 3300 Monitoring System. It continuously measures two independent channels of radial vibration and average shaft position. The monitor accepts inputs from two Proximitor® systems. It provides early fault detection through configurable alert and danger setpoints for vibration and gap.

Technical Specifications

• Measurement Channels: 2 independent channels
• Measured Parameters: Radial vibration, shaft position (gap)
• Transducer Input Option (01): Compatible with 3300 XL 8 mm and 7200 5 mm/8 mm Proximitor® sensors
• Full-scale Range (12): 0–150 µm peak-to-peak (0–5 mils pp)
• Alarm Relay Option (02): Hermetically-sealed alarm relays
• Agency Approval (00): None
• Safety Barrier Option (00): None
• Trip Multiply Option (00): None
• Power Supply: 24 VDC, 2 W nominal
• Accuracy at +25°C:
  • Signal conditioning: ±0.33% of full-scale
  • +4 to +20 mA output: ±0.7% of signal, ±0.09 mA offset
  • +1 to +5 Vdc output: ±1.1% of signal, ±10 mV offset
  • 0 to –10 Vdc output: ±1.1% of signal, ±15 mV offset
• Frequency Response: User-programmable 4–4,000 Hz or 1–600 Hz (–3 dB nominal)
• Alarms:
  • Vibration: Alert and Danger setpoints
  • Gap: Alert setpoints
  • Repeatability: ±0.39% of full-scale
• Mounting: Rack-mounted
• Dimensions: 5.1 cm × 20.3 cm × 33.0 cm
• Weight: 3.6 kg
