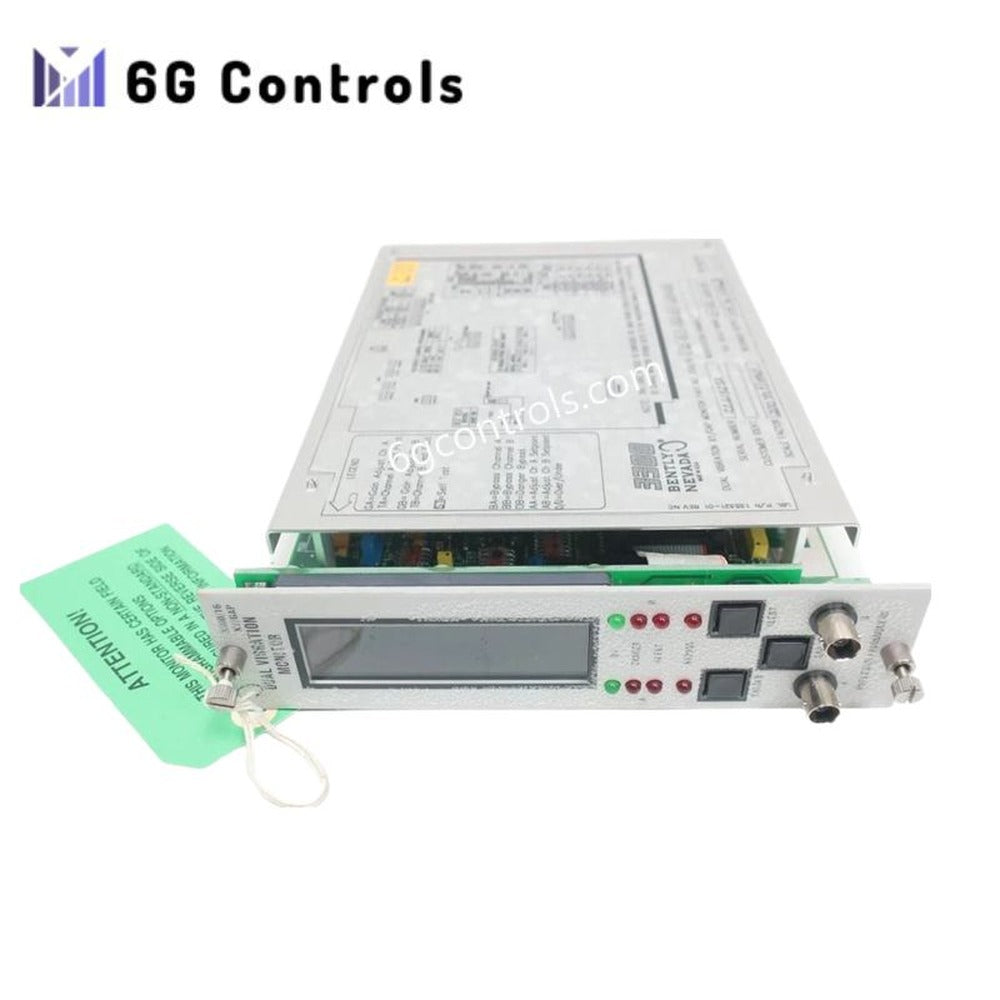

Bently Nevada 3300/16-12-01-02-01-02-00 XY/GAP Dual Vibration Monitor

Overview

The Bently Nevada 3300/16-12-01-02-01-02-00 is a XY/GAP Dual Vibration Monitor. It continuously monitors rotating machinery conditions with precision. The system accepts Proximitor® sensor inputs and delivers real-time measurements of radial vibration and shaft position. This model belongs to the trusted 3300 series, known for reliability in demanding industrial environments.

Technical Specifications

• Type: XY/GAP Dual Vibration Monitor
• Measurement Channels: Two independent channels for radial vibration and shaft position
• Transducer Input: Compatible with 3300 8 mm, 3300 XL 8 mm, and 7200 5 mm/8 mm Proximitor sensors
• Full Scale Range: 0–5 mils peak-to-peak
• Output Signals: User-programmable recorder outputs (+4–20 mA, 0–10 Vdc, or +1–5 Vdc)
• Alarms: Digitally adjustable Alert and Danger setpoints for vibration and shaft gap
• Display: LCD with vertical bargraph and separate 63-segment channel displays; shows probe gap and error codes
• Power Supply: 24 VDC, nominal consumption about 2 watts
• Operating Temperature: 0°C to +65°C
• Humidity: Up to 95% non-condensing
• Alarm Relay Option: Hermetically sealed relays
• Safety Barrier: Included
• Trip Multiply: None
• Dimensions: 5.1 cm x 20.3 cm x 33.0 cm
• Weight: 3.6 kg
