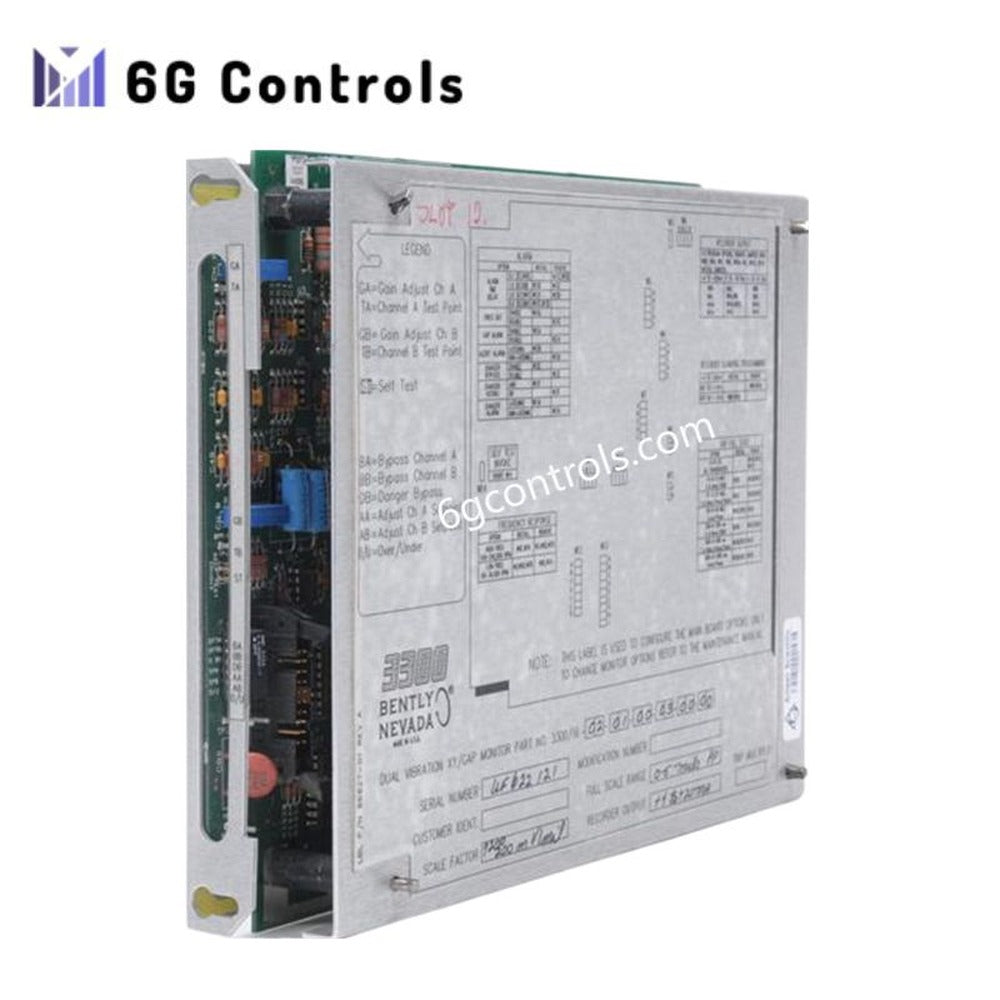

Bently Nevada 3300/16-12-01-02-03-02-00 XY/GAP Dual Vibration Monitor

Overview

The Bently Nevada 3300/16-12-01-02-03-02-00 is a XY/GAP Dual Vibration Monitor. It provides continuous condition monitoring for rotating machinery. The device measures both radial vibration and shaft position (gap) using non-contacting proximity probes. As part of the proven 3300 series, it ensures high reliability and meets API 670 standards for machine protection.

Technical Specifications

• Model Number: 3300/16-12-01-02-03-02-00
• Type: XY/GAP Dual Vibration Monitor
• Measurement Channels: 2 independent channels
• Measured Parameters: Radial vibration and shaft position (gap)
• Transducer Input Option (01): Compatible with 3300 XL 8 mm and 7200 5 mm/8 mm Proximitor® sensors
• Full-Scale Range (12): 0–150 µm peak-to-peak
• Frequency Response: 4 to 4,000 Hz or 1 to 600 Hz (programmable)
• Recorder Outputs: +4 to +20 mA, 0 to -10 VDC, or +1 to +5 VDC
• Alarm Relay Option (02): Hermetically sealed relays with latching capability
• Alarms:
  • Vibration: Alert and Danger setpoints
  • Gap: Alert setpoints per channel
  • Range: Digitally adjustable from 0–100% full-scale
• Display: Vertical bargraph LCD (vibration, gap, error codes)
• LED Indicators:
  • Green OK LED (healthy condition)
  • Flashing LEDs (Alert and Danger alarms)
  • Red LEDs (Danger Bypass and Rack/Channel Bypass)
• Power Supply: 24 VDC, approx. 2 W consumption
• Mounting Option (02): Panel mount
• Safety Barrier Option (00): None
• Trip Multiply Option: Not included
• Agency Approval Option (00): No approvals required
• Operating Temperature: 0°C to +65°C (32°F to +150°F)
• Dimensions: 5.1 cm x 20.3 cm x 33.0 cm
• Weight: 3.6 kg
