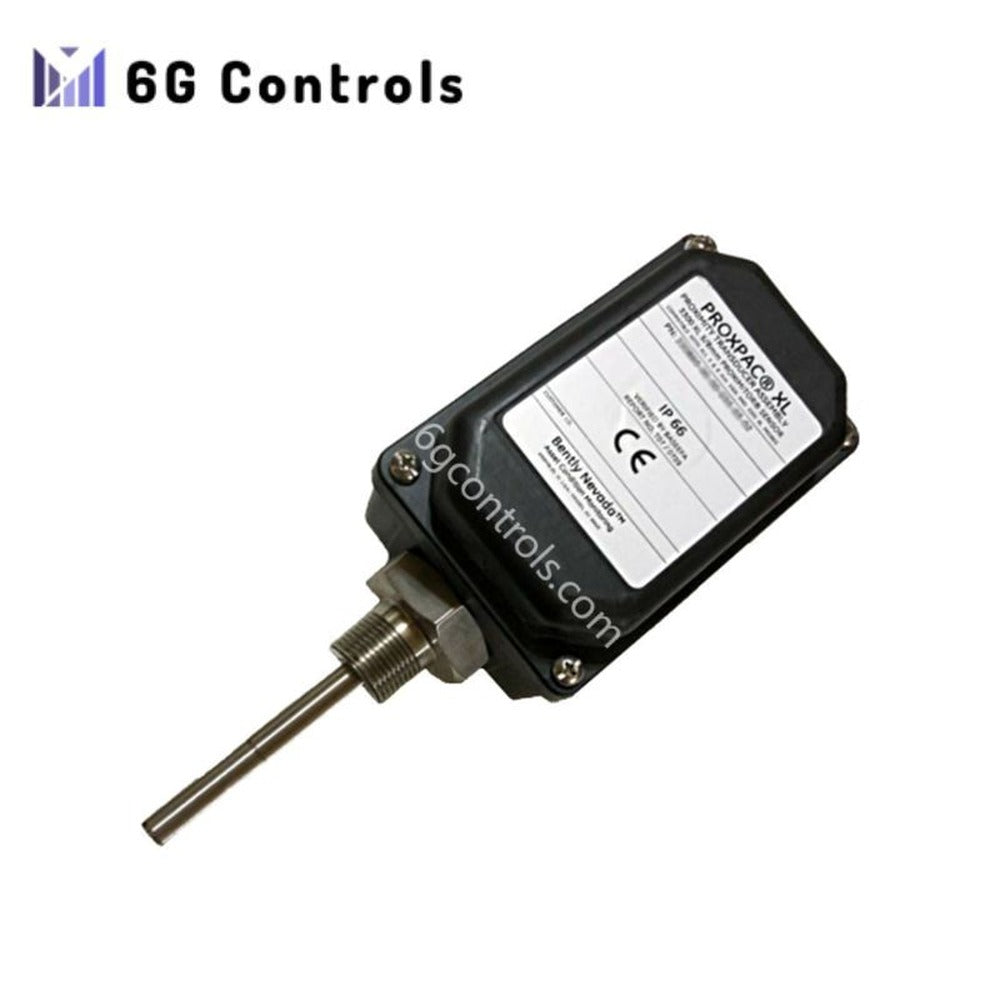

Bently Nevada 330881-01-00-000-00-02 PROXPAC XL Proximity Transducer Assembly

Overview

The Bently Nevada 330881-01-00-000-00-02 is a PROXPAC XL Proximity Transducer Assembly. It integrates a 3300 XL Proximitor sensor inside its housing. This design removes the need for extension cables and separate Proximitor housings. It provides reliable asset condition monitoring in industrial applications. The assembly suits harsh environments, offering robust performance and ease of installation.

Technical Specifications

• Sensor Type: 3300 XL Proximitor sensor
• Power Supply: -17.5 VDC to -26 VDC (without barriers), -23 VDC to -26 VDC (with barriers)
• Linear Range: 0.25 mm to 2.3 mm (10 mils to 90 mils)
• Recommended Gap Setting: 1.27 mm (50 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%
• Nominal Probe DC Resistance: 50 Ω
• Field Wiring: Supports up to 305 meters (1,000 feet)
• Housing Material: Polyphenylene Sulfide (PPS)
• Environmental Rating: Type 4X, IP66
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Dimensions: 15.2 cm x 2.4 cm x 5.6 cm
• Weight: 1.2 kg
