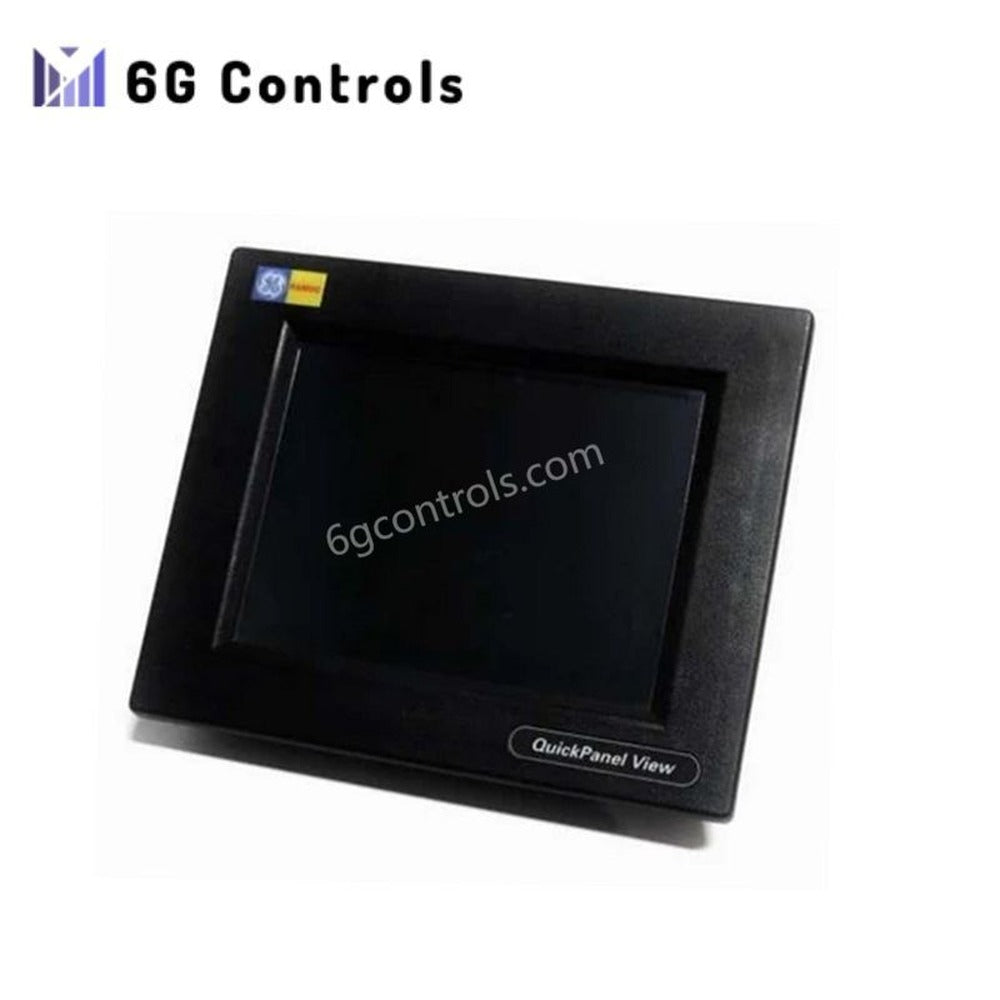

GE IC754VGI08CTD QuickPanel View HMI Most Favorable

Overview

The GE IC754VGI08CTD QuickPanel View HMI is an integrated Human-Machine Interface designed for industrial automation. It combines an 8-inch color TFT LCD touchscreen, a powerful Marvell XScale ARM processor, and versatile communication options in a rugged, compact design. With Proficy View-Machine Edition compatibility, operators gain a reliable and intuitive interface for process control, data visualization, and system integration. Its wide voltage input range, robust build, and VESA mounting support make it suitable for demanding industrial environments.

Technical Specifications

• Display: 8-inch Color TFT LCD Touchscreen
• Resolution: 640 × 480 pixels (VGA)
• Touch Technology: Analog resistive
• Processor: Marvell XScale ARM Core
• Memory: 64 MB SDRAM, 64 MB Flash
• Storage Expansion: SD Card Slot
• Communication Ports: RS-232, RS-485, Ethernet (10/100 Mbps), USB
• Audio Support: Line Out and Mic In
• Software Compatibility: Proficy View-Machine Edition
• Power Supply: 24 VDC (12–30 VDC range)
• Dimensions (L × W × D): 192 × 137 × 36 mm (7.56 × 5.39 × 1.42 in)
• Panel Cutout Size: 183.5 × 128.5 mm (7.22 × 5.06 in)
• Mounting Options: VESA 75 × 75 mm
• Operating Temperature: 0°C to 50°C
• ​Dimensions: 16 × 14 × 8 in.
• Weight: 5.18 lbs
