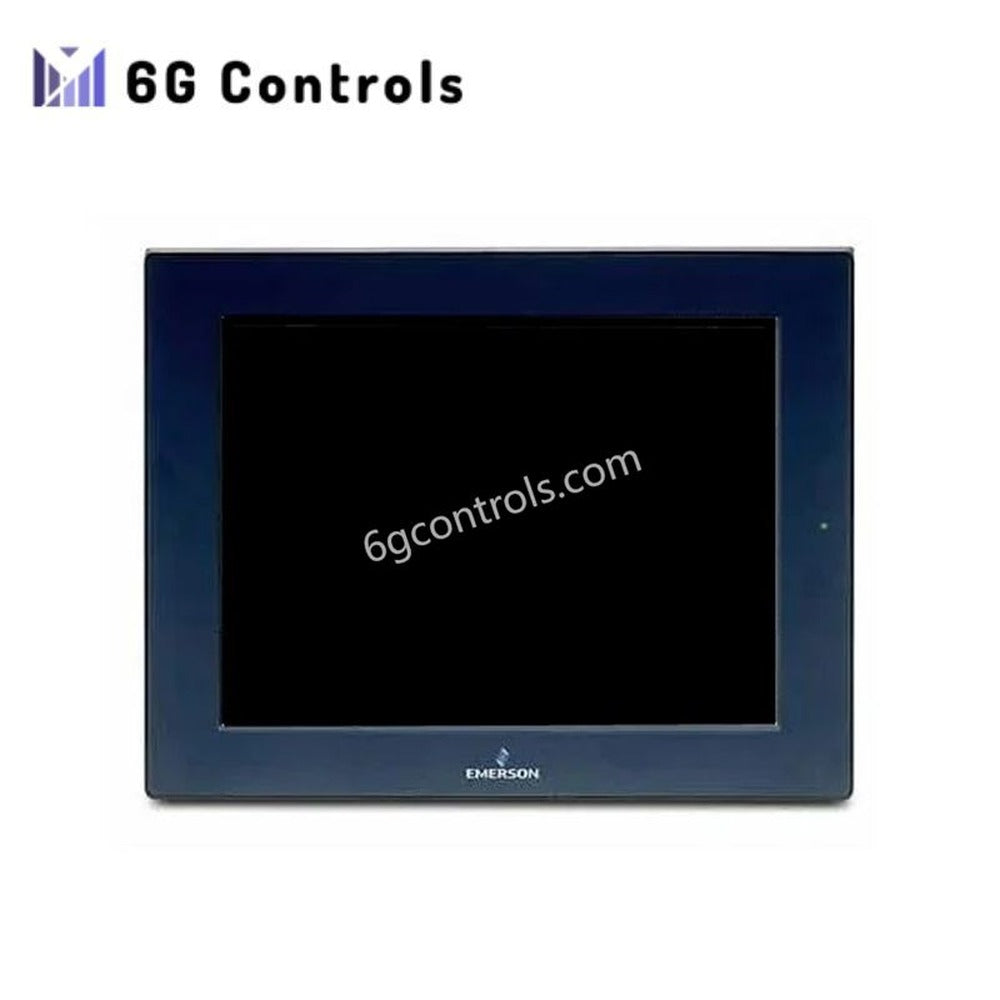

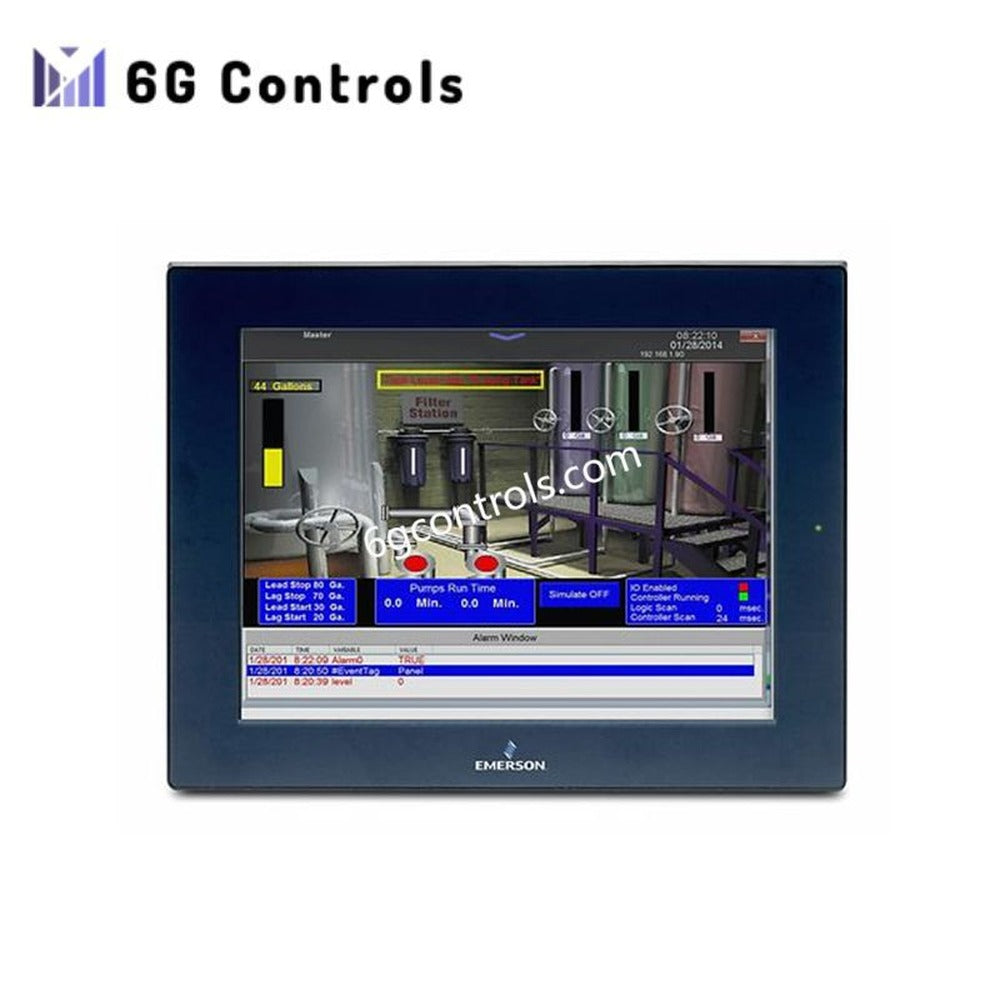

GE IC755CSS12CDB Human Machine Interface Brand New

Overview

The GE IC755CSS12CDB is a 12-inch QuickPanel+ HMI controller. It combines HMI, PLC, and data acquisition functions in one unit. Operators can monitor and control machines efficiently on a single interface. Industries such as manufacturing, energy, and water treatment use it widely. It supports local and remote I/O, ensuring flexible machine-level control.

Technical Specifications

Display

• Size: 12.1-inch TFT LCD
• Resolution: 1280 × 800 (WXGA)
• Touchscreen: Projected capacitive multi-touch

Processor & Memory

• Processor: Freescale i.MX535 ARM Cortex-A8, 1 GHz
• RAM: 1 GB DDR3 SDRAM
• Flash: 4 GB (512 MB SLC NAND + 512 KB battery-backed SDRAM)

Operating System & Software

• OS: Windows Embedded Compact 7
• Control Software: Proficy Machine Edition (Logic Developer – PLC and View)
• Programming Languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), Sequential Function Chart (SFC)

I/O & Communication

• Local & Remote I/O support
• Ethernet: 2 ports
• Serial: 1 × RS232, 1 × RS485
• USB: 2 × USB 2.0 Type-A, 1 × USB 2.0 Mini Type-B
• Protocols: Modbus TCP/IP, Ethernet/IP, Profinet, OPC UA, DNP3

Power & Environmental

• Power Supply: 12–24 VDC
• Front Panel Rating: IP66
• Operating Temperature: –10°C to +60°C
• Status Indicators: Tri-color LED (Amber/Green/Red), on-board buzzer

Physical

• Weight: 6.94 lbs
• Mounting: Panel mount
• Bezel: Manufacturer monogram displayed
