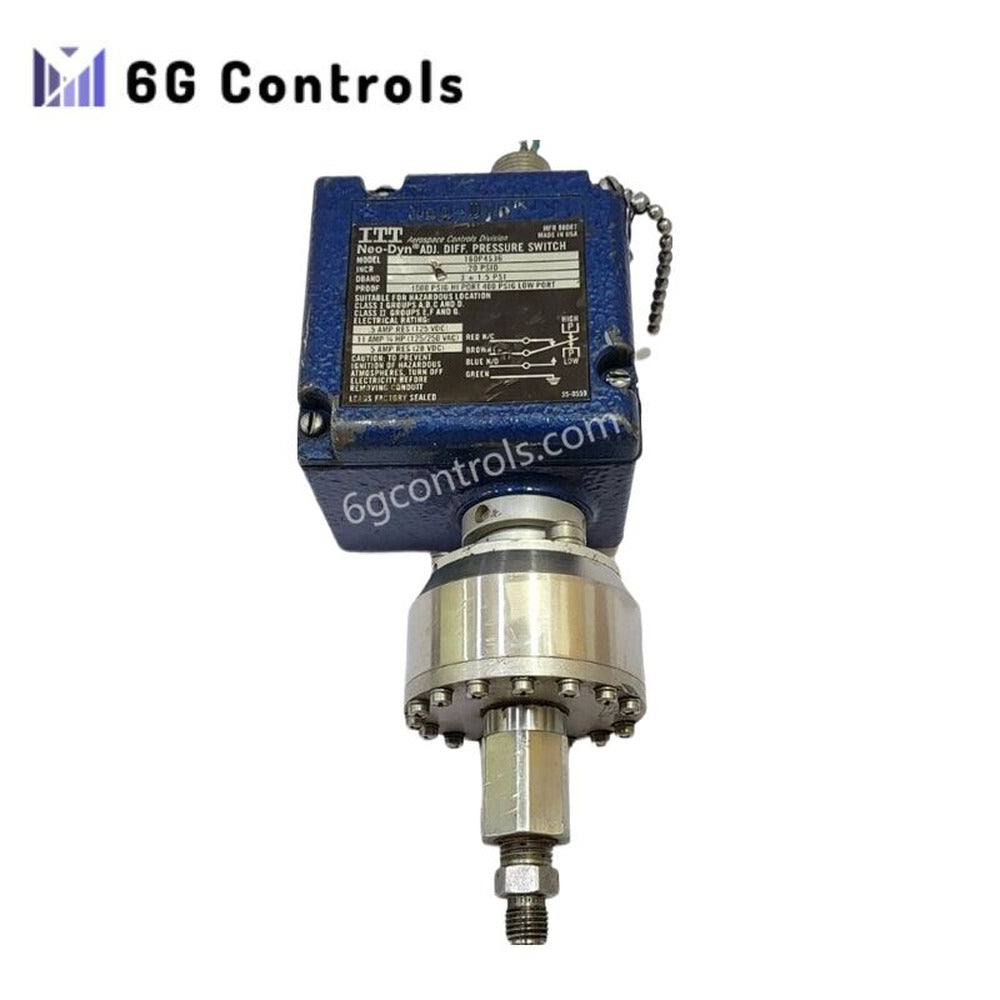

ITT 160P4S36 Differential Pressure Switch Brand New

Overview

The ITT 160P4S36 is a differential pressure switch from the trusted Neo-Dyn 160P series. It ensures accurate monitoring and control of differential pressure in demanding industrial environments. Engineers use it in systems that require precise control and high durability under extreme conditions. Its compact size and adjustable setpoints support versatile installation across various equipment types. The switch meets NEMA standards and performs reliably in hazardous or explosive areas. Users benefit from easy configuration, robust materials, and a wide operating temperature range.

Technical Specifications

• Product Type: Differential Pressure Switch

• Model: 160P4S36 from Neo-Dyn 160P series

• Adjustable Range:

  • Increasing Pressure: 2 to 60 psid (0.1 to 4.1 bar)

  • Decreasing Pressure: Refer to datasheet for exact values

• Deadband: Fixed at approximately 2 psid

• Maximum System Pressure: 1350 psig

• Proof Pressure: 2000 psig

• Electrical Connection:

  • 1/2" NPT male conduit

  • PVC-insulated 18 AWG, 18-inch long leads

• Pressure Connection: 1/4" NPT Female

• Ambient Temperature Range: -40°F to +180°F (-40°C to +82°C)

• Media Temperature Range: -40°F to +250°F (-40°C to +121°C)

• Adjustment Method: Concealed wrench flat adjustment with visible range scale

• Wetted Material Code 4:

  • Stainless steel

  • Teflon-coated polyimide diaphragm

  • Buna-N O-rings

• Miscellaneous Code S: Stainless steel diaphragm (with range 2 or 4, and Material 4 only)

• Enclosure Code 3:

  • Meets/exceeds NEMA Types 3, 3R, 3S, 4, 4X, and 13
