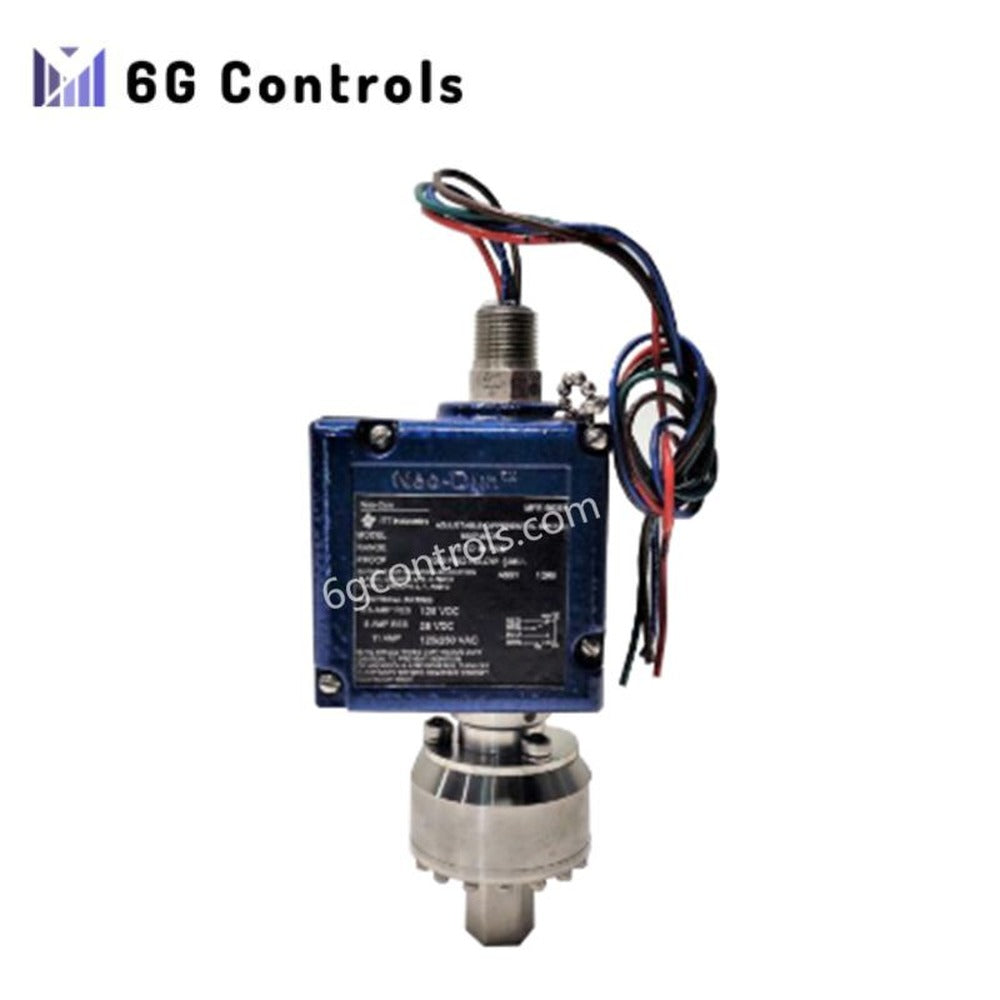

ITT 160P4S43 Differential Pressure Switch Brand New

Overview

The ITT 160P4S43 is a compact differential pressure switch designed for high-performance industrial applications. It delivers accurate and repeatable pressure control. With its stainless steel diaphragm and corrosion-resistant materials, it performs reliably in harsh and hazardous environments. The switch meets multiple NEMA enclosure standards, making it suitable for indoor and outdoor use. Its adjustable pressure range and wide temperature tolerance ensure versatility across many systems.

Technical Specifications

• Manufacturer: ITT Neo-Dyn

• Model: 160P4S43

• Series: 160P Differential Pressure Switch

• Product Type: Differential pressure switch for industrial control

Pressure Settings

• Adjustable Range (Increasing): 3 psid to 18 psid (0.0 bar to 1.2 bar)

• Adjustable Range (Decreasing): 1 psid to 16 psid (0.0 bar to 1.1 bar)

• Deadband: Approx. 2 psid

• Max System Pressure: 1350 psig

• Proof Pressure: 2000 psig

Temperature Ratings

• Ambient Temperature: -40°F to +180°F (-40°C to +82°C)

• Media Temperature: -40°F to +250°F (-40°C to +121°C)

Electrical Interface

• Electrical Connection: 1/2 NPT male conduit

• Wiring: 18 AWG, 18-inch PVC insulated leads

Process Connection

• Port Size: 1/4 NPT Female

Construction Materials

• Wetted Material Code 4: Stainless steel with Teflon-coated polyimide diaphragm and Buna-N O-Rings

• Miscellaneous Code S: Stainless steel diaphragm (only for ranges 2 & 4 with Material 4)

Enclosure

• Enclosure Code 3: Meets or exceeds NEMA 3, 3R, 3S, 4, 4X, and 13 standards
