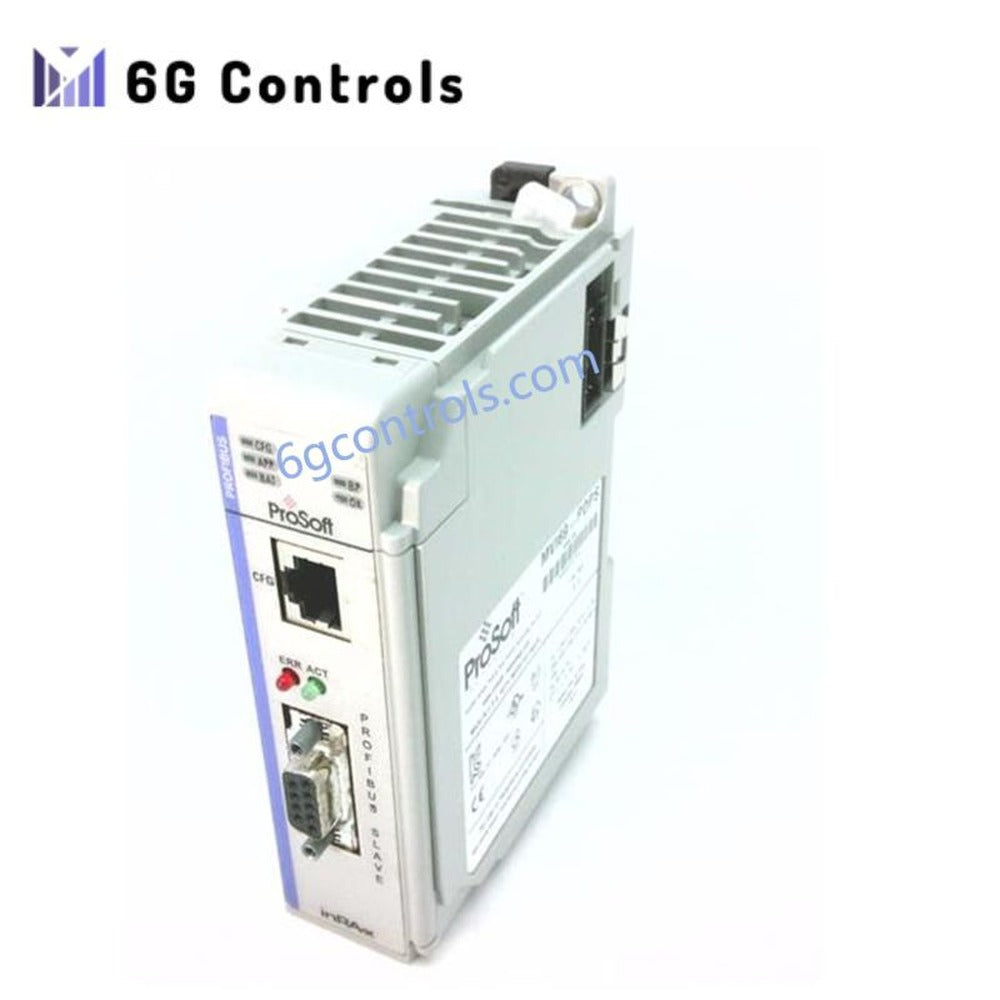

MVI69-PDPS | ProSoft | PROFIBUS DP Slave Communication Module

Product Description

The MVI69-PDPS from ProSoft Technology is a dedicated PROFIBUS DP slave interface engineered for Allen-Bradley CompactLogix and MicroLogix 1500 controllers. Designed to install directly into the 1769 Compact I/O backplane, this module allows Rockwell Automation PLCs to operate as PROFIBUS DP slaves within multi-vendor control architectures.

By supporting PROFIBUS DP-V0 and DP-V1 services, the module enables deterministic cyclic I/O exchange as well as acyclic parameterization and diagnostics. This makes the MVI69-PDPS suitable for integration with Siemens S7 PLCs, DCS platforms, and other PROFIBUS DP master systems without the need for external protocol gateways.

Functional Capabilities

• PROFIBUS DP-V0 / DP-V1 compliant slave operation
• Automatic baud rate detection from 9.6 kbps up to 12 Mbps
• User-defined I/O mapping up to 244 bytes input and 244 bytes output
• Dual PROFIBUS DB9 connectors supporting line or drop network layouts
• Electrical isolation between PLC backplane and PROFIBUS field network
• On-board diagnostics with LED indicators for power, communication, and fault status
• Configuration and commissioning via ProSoft Configuration Builder software
• Single-slot footprint compatible with 1769 Compact I/O systems

Technical Specifications

PROFIBUS Communication

• Supported protocol: PROFIBUS DP-V0 / DP-V1
• Standards compliance: EN 50170
• Transmission speeds: 9.6 kbps to 12 Mbps (auto-negotiated)
• Maximum cyclic data size:
  • Input: 244 bytes
  • Output: 244 bytes
• PROFIBUS ports: 2 × DB9 female connectors
• Configuration interface: RS-232 service port

Electrical Characteristics

• Backplane supply voltage: 5 V DC
• Typical current consumption: approximately 800 mA
• Isolation rating: 1500 Vrms between backplane and PROFIBUS network

Environmental Ratings

• Operating temperature: –20 °C to +60 °C
• Storage temperature: –40 °C to +85 °C
• Relative humidity: 5% to 95%, non-condensing

Mechanical Details

• Module format: 1769 CompactLogix single-slot module
• Mounting method: 1769 Compact I/O chassis
• Status indication: Power, network activity, module fault LEDs

Typical Use Cases

• Connecting CompactLogix PLCs as PROFIBUS slaves to Siemens S7 masters
• PLC-to-DCS integration in process industries
• PROFIBUS-based distributed I/O architectures
• Retrofit projects requiring Rockwell PLCs in existing PROFIBUS networks

Frequently Asked Questions

Q: Can the MVI69-PDPS operate as a PROFIBUS master? A: No. The module is strictly a PROFIBUS DP slave device.

Q: Is a GSD file available for system configuration? A: Yes. A standard GSD file is provided for integration with Siemens and other PROFIBUS master tools.

Q: Does the module support acyclic PROFIBUS diagnostics? A: Yes. DP-V1 services allow access to extended diagnostics and parameter data.
