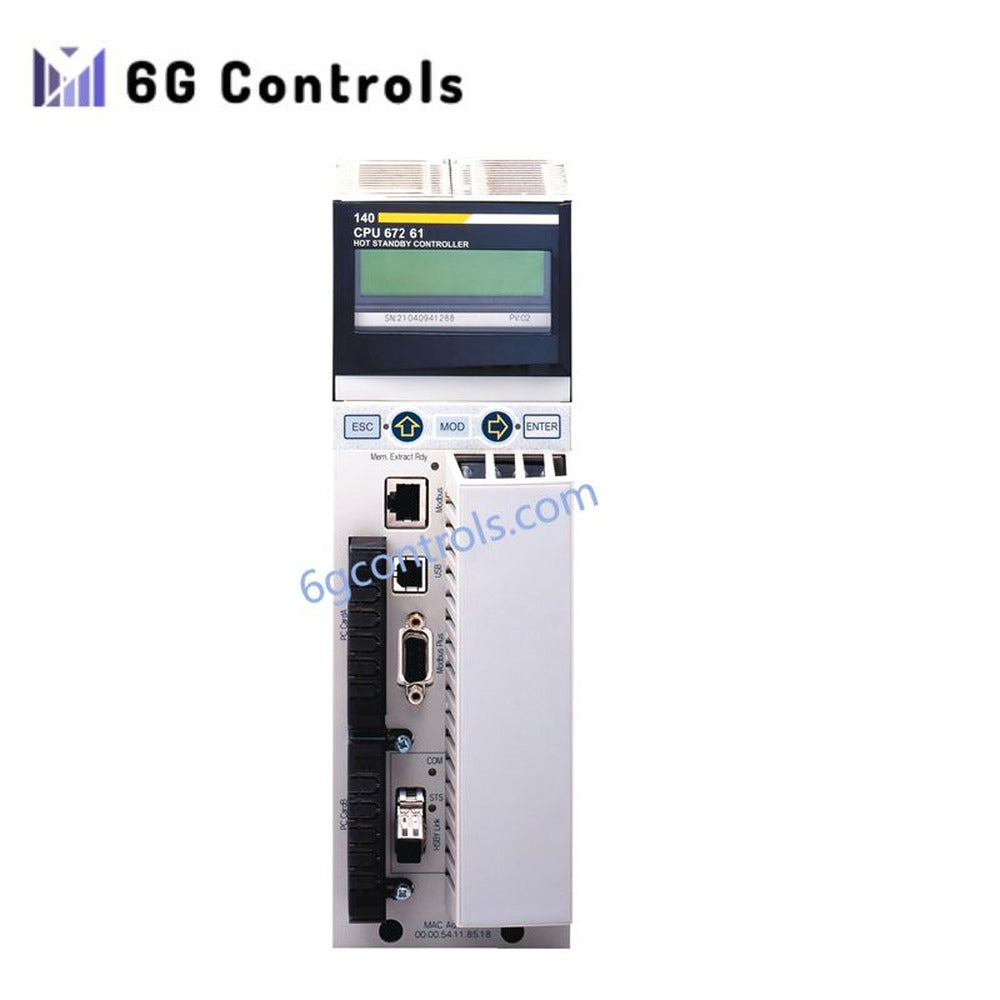

Schneider Electric 140CPU67261 Unity Hot Standby Processor

Product Description

The 140CPU67261 by Schneider Electric is a high-performance Unity processor engineered for Modicon Quantum platforms requiring continuous operation and system redundancy. Designed for Hot Standby architectures, it ensures seamless switchover between primary and standby controllers, minimizing downtime in mission-critical automation systems.

This processor integrates deterministic control execution with extensive I/O scalability and robust industrial communication support, making it suitable for complex distributed control environments.

Key Technical Features

• Processor Type: Unity Hot Standby CPU
• CPU Frequency: 266 MHz
• Internal Memory: 3072 KB RAM (1536 KB allocated for data)
• Expandable Memory:
  • Up to 7 MB program memory via PCMCIA
  • Up to 8 MB file storage
• Redundancy Support: Fiber optic Hot Standby link (up to 16 km distance)
• Ethernet Capability: Integrated routing and communication services

System Capacity and Performance

• Distributed I/O Stations: Up to 63 nodes
• Remote I/O Stations: Up to 31 per network (Ethernet Quantum, X80, or Modbus Plus)
• Discrete I/O Handling:
  • Remote: Up to 31,744 inputs / 31,744 outputs
  • Distributed: Up to 8,000 inputs / 8,000 outputs per network
• Analog I/O Capacity:
  • Remote: Up to 1,984 inputs / outputs
  • Distributed: Up to 500 inputs / outputs
• Instruction Throughput:
  • 10.28 K instructions/ms (Boolean logic)
  • 10.07 K instructions/ms (mixed logic)

Communication Interfaces

• 1 × USB port
• 1 × Modbus Plus interface (SUB-D 9)
• 1 × Modbus serial port (RS232/RS485)
• 1 × RJ45 Ethernet port
• 1 × LC fiber optic port for redundancy
• Support for optional communication modules (up to 6): Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max

Functional Capabilities

• High-speed interrupt processing
• Integrated counter and timer functions
• Precise system time stamping
• Ethernet routing services
• Key switch for memory protection

Electrical and Mechanical Data

• Backplane Current Consumption: 2760 mA
• Form Factor: Quantum rack-mounted module
• Weight: 1.45 kg
• Dimensions: 11.0 × 19.0 × 32.5 cm

Compliance and Certifications

• CE, UL, CSA certified
• Marine and hazardous location compliant (HazLoc)
• GOST certifie

Recommended Replacement

For modernization projects, Schneider Electric recommends migrating to the Modicon M580 platform, such as the BMEH584040 redundant processor, which offers enhanced memory capacity, cybersecurity features, and improved Ethernet integration.

Typical Applications

• Power generation and distribution systems
• Oil & gas processing facilities
• Water and wastewater treatment plants
• Large-scale manufacturing automation
• Continuous process industries requiring redundancy

FAQ

Is local I/O supported in Hot Standby mode? No. Local I/O is not permitted in Hot Standby configurations; only remote and distributed I/O architectures are supported.

What is the maximum distance between redundant CPUs? Up to 16 km using single-mode fiber optic connection.

Can memory be expanded? Yes, via PCMCIA cards for both program execution and data storage expansion.

Is this processor still supported? It remains serviceable until the end-of-service date in 2026, but migration planning is strongly recommended.
