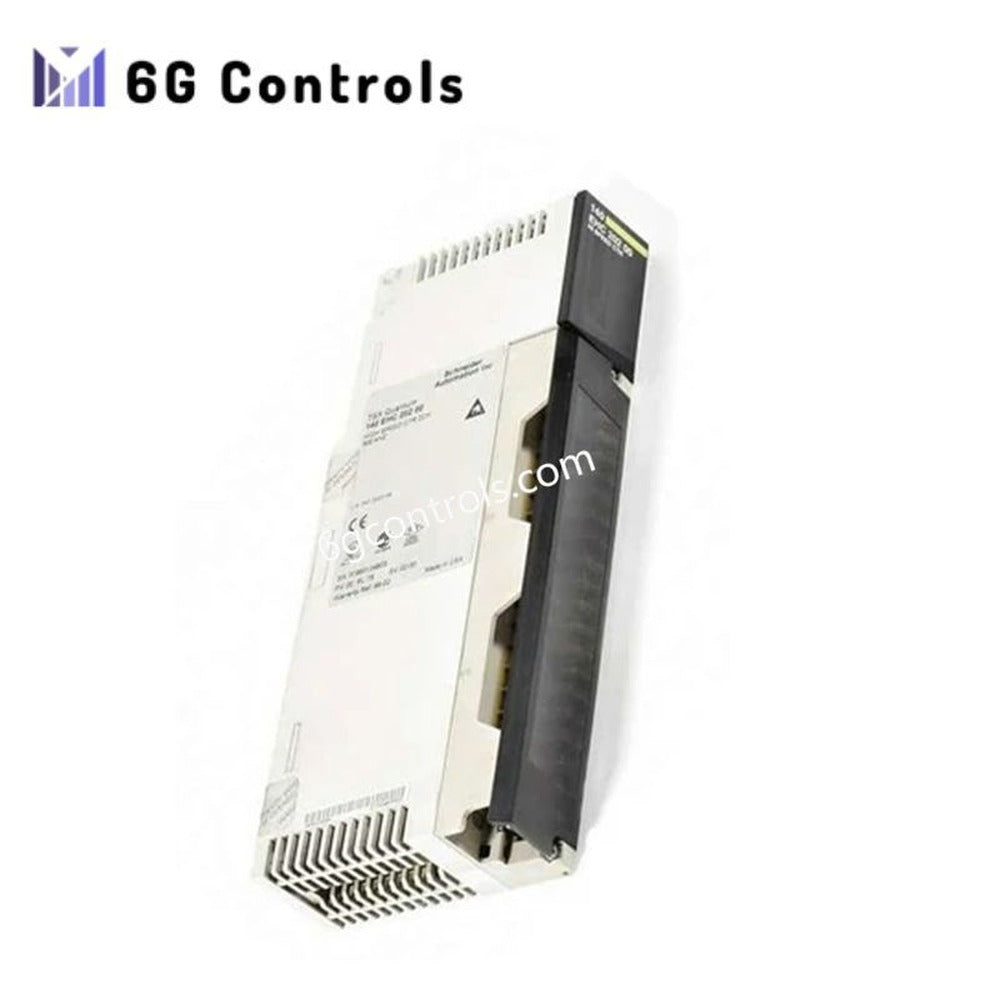

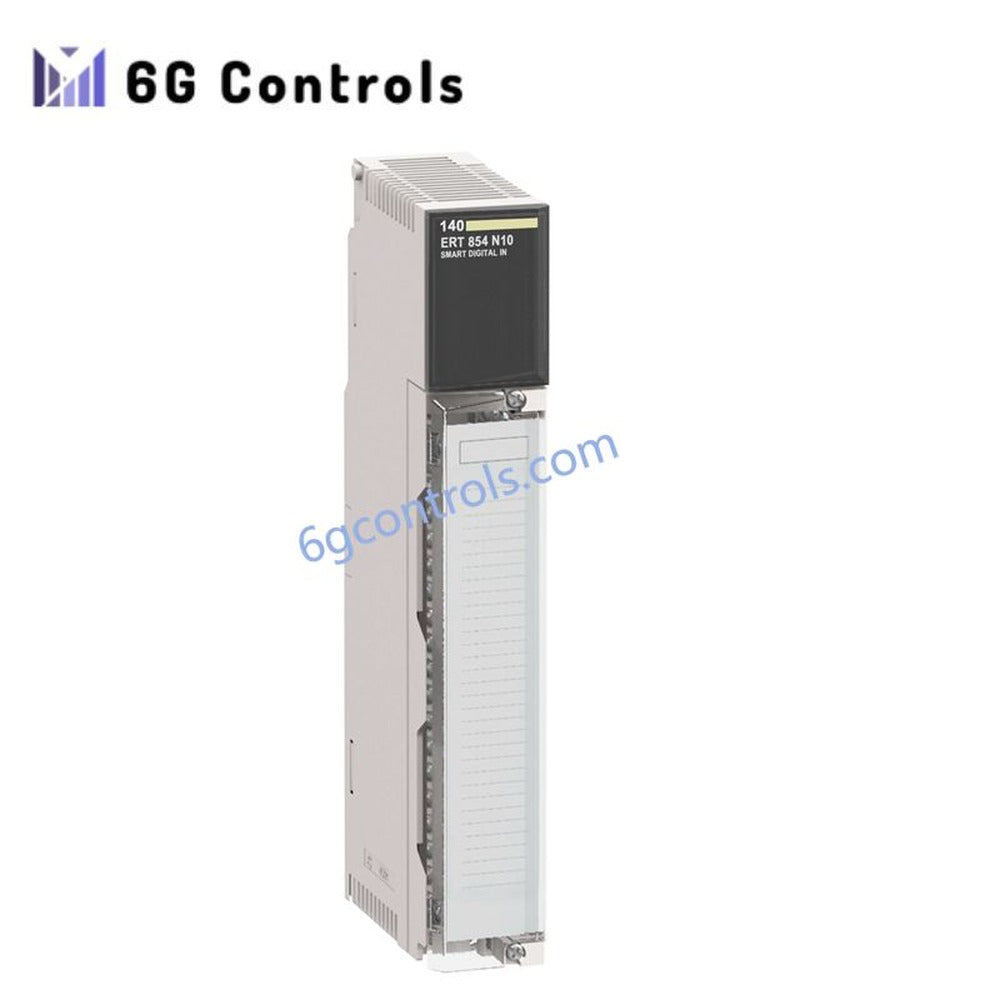

Schneider Electric 140ERT85410 Modicon Quantum Input Module

Product Description

The 140ERT85410 multifunction input module is designed for Schneider Electric Modicon Quantum PLC systems requiring high-speed event acquisition, status monitoring, and synchronized time-stamped input processing. The module combines discrete process input handling with event logging and clock synchronization functionality, making it suitable for process automation systems where accurate timing and input diagnostics are critical.

This module features 32 discrete process inputs divided into two isolated groups, plus an additional dedicated clock signal input. Optical isolation between channel groups improves signal integrity and minimizes electrical interference in industrial installations. The module also supports DCF77 time synchronization, enabling precise time and date stamping of input events.

The 140ERT85410 supports both shielded and unshielded field wiring and includes configurable anti-bounce filtering for stable input signal acquisition in noisy environments.

Technical Specifications

Functional Characteristics

• Supports event-driven monitoring with time and date stamping
• Integrated DCF77 synchronization capability
• Dual isolated input groups for improved electrical protection
• Designed for high-reliability process signal acquisition
• Configurable anti-bounce filtering for unstable input signals
• Fast 1 ms acquisition time for clock synchronization input
• Suitable for distributed and critical monitoring systems
• Visual diagnostics through integrated front-panel LEDs

Application Areas

The 140ERT85410 module is commonly used in:

• Industrial event recording systems
• Process status monitoring
• Power distribution automation
• Water treatment facilities
• SCADA and telemetry systems
• Time-synchronized process control
• Alarm and sequence-of-events logging
• Utility infrastructure monitoring

FAQ

What is the main purpose of the 140ERT85410 module?

The module is used for discrete input monitoring, event logging, and synchronized time-stamped signal acquisition within Modicon Quantum automation systems.

Does the module support isolated input groups?

Yes. The inputs are divided into two optically isolated groups to improve noise immunity and operational reliability.

Can shielded and unshielded cables both be used?

Yes. Shielded cables up to 600 meters and unshielded cables up to 400 meters are supported.

What type of synchronization protocol is integrated?

The module supports DCF77 time synchronization for accurate event timing.
