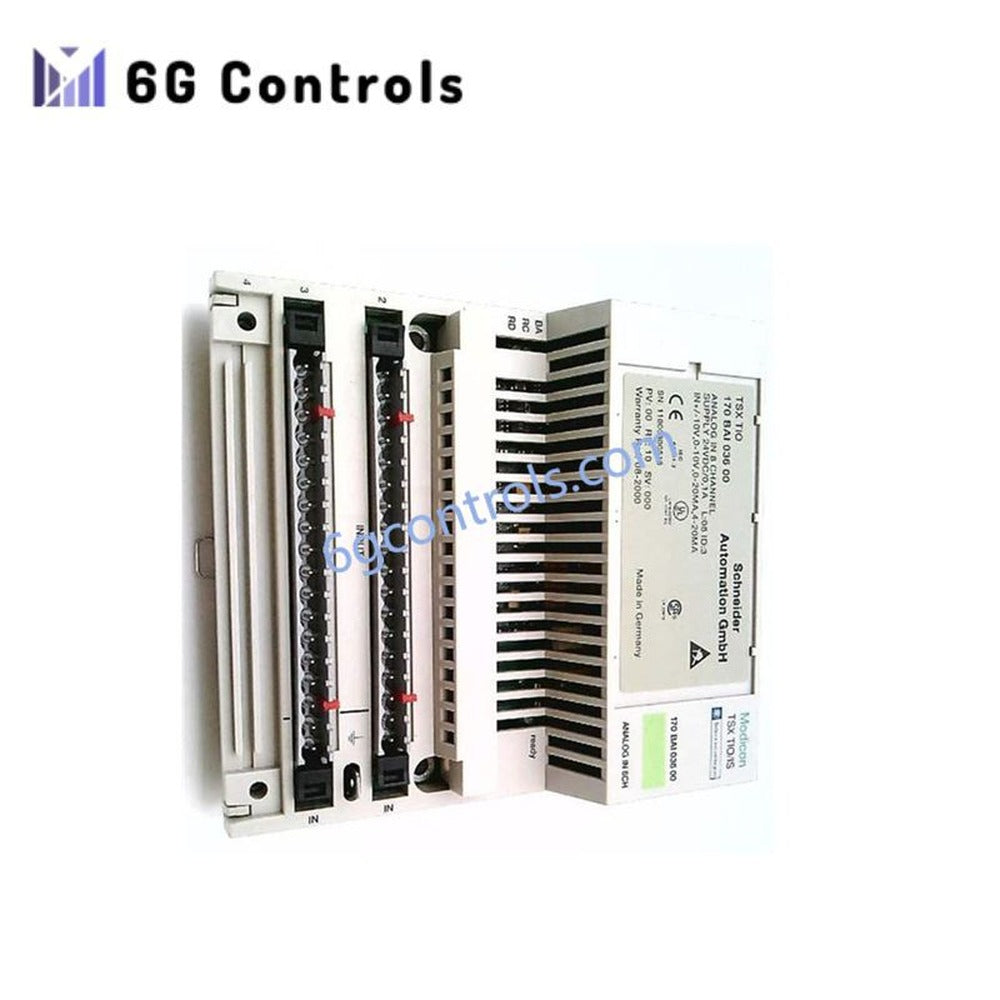

Schneider Electric 170BAI03600 Analog Input Module

Configured for precise analog signal acquisition in the Modicon Momentum network, the Schneider Electric 170BAI03600 (170BAI03600 Analog Input Module) provides direct physical and electrical execution for multi-channel analog input management.

Suffix Breakdown & Model Matrix

• 8 analog input channels
• Single-ended input type
• 24 V DC nominal voltage, 1 A current per module

Hardware Specifications

Industrial Control Specific Features

The 170BAI03600 module supports backplane bus communication velocity licenses for high-speed data transfer across Modicon Momentum CPU modules. It is compatible with Profinet/EtherNet/IP deterministic networks and ensures I/O density scaling for system expansion. Firmware flash compatibility allows straightforward updates without disruption to other I/O modules.

Frequently Asked Questions (FAQ)

Q: Can this module be hot-swapped while the system is powered? A: Hot-swap operations are supported if upstream supply and backplane conditions are maintained; ensure all channel inputs are in a safe state prior to insertion.

Q: What is the expected current draw per channel? A: Each module operates at 1 A total, distributed across 8 analog channels.

Q: How is the module isolated from other I/O groups? A: Channel-to-channel isolation is maintained through backplane design and internal bus segregation.

Field Installation Guidelines

• Install vertically on DIN-rail or compatible mounting with adequate clearance for airflow.
• Ground shielded analog cables at one end to prevent ground loops.
• Maintain separation between analog and discrete wiring to reduce crosstalk.
• Ensure ambient temperature remains within 0…60 deg C during operation.
• Verify backplane and supply voltage connections before powering the module.
