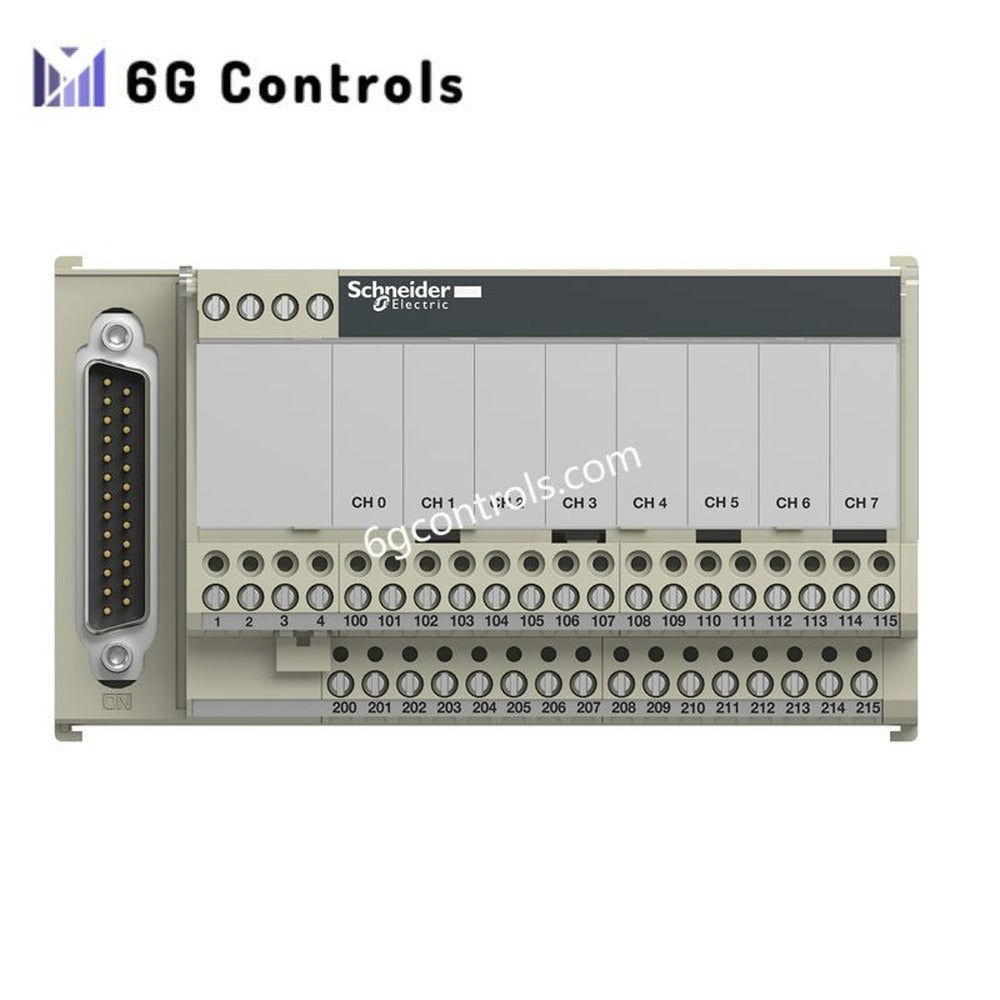

Schneider Electric ABE7CPA02 Connection Sub-base Module

Configured for passive distribution of 8 channel analog and counter signals in Modicon ABE7 Telefast pre-wired systems, the Schneider Electric ABE7CPA02 (ABE7CPA02 connection sub-base) provides direct physical/electrical execution of signal fan-out and isolation mapping between PLC HE10 interface cards and field-side terminal wiring across Modicon X80 compatible architectures.

Suffix Breakdown & Model Matrix

No explicit suffix segmentation is defined in the provided documentation. The identifier ABE7CPA02 is treated as a single fixed configuration within the Modicon ABE7 connection sub-base family.

Hardware Specifications

Schneider Electric ABE7 Passive Signal Distribution Architecture

The ABE7CPA02 implements passive channel routing across 8 isolated analog paths, maintaining electrical separation between distributed input/output lines while preserving signal integrity through discrete terminal mapping. Each channel is individually routed through screw terminal interfaces toward a DB-25 PLC connector interface.

Channel-to-channel electrical isolation is structurally implemented at the sub-base level, preventing cross-conduction between analog measurement paths. Signal continuity depends on external module electronics (such as BMXAMI or BME series I/O cards), while the sub-base remains electrically transparent except for routing and termination structure.

Frequently Asked Questions (FAQ)

Q: Does the ABE7CPA02 perform analog signal conditioning or conversion? A: No. The module is a passive sub-base and only provides channel routing between field terminals and PLC interface connectors.

Q: Can the module operate without a connected PLC I/O module? A: It does not generate or process signals. Electrical operation depends on connected Modicon X80 or compatible I/O modules.

Q: Are the 8 channels electrically isolated from each other? A: Yes. Channel separation is implemented at the sub-base routing level to prevent inter-channel electrical coupling.

Field Installation Guidelines

Mount the sub-base on a 35 mm symmetrical DIN rail or fixed plate using the specified clipping and screw fixation points. Ensure DB-25 connector alignment before tightening terminal screws to avoid mechanical stress on the interface pins.

Maintain separation between analog signal wiring and high-voltage conductors to reduce electromagnetic coupling. Use shielded twisted pair cable for analog channels, with shields grounded at a single reference point per system segment.

Tighten screw terminals to the specified torque range to ensure stable contact resistance without deformation of conductor strands. Verify continuity between field terminals and PLC connector before energization of associated I/O modules.
