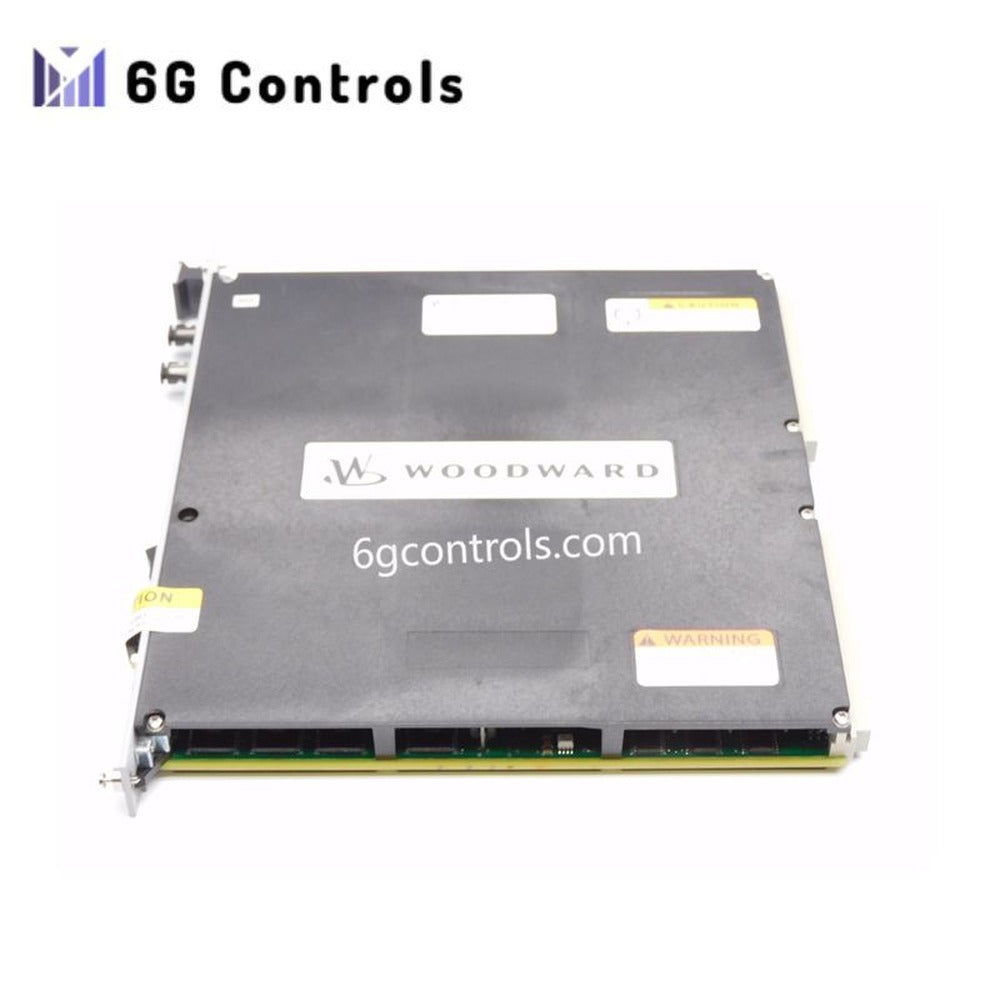

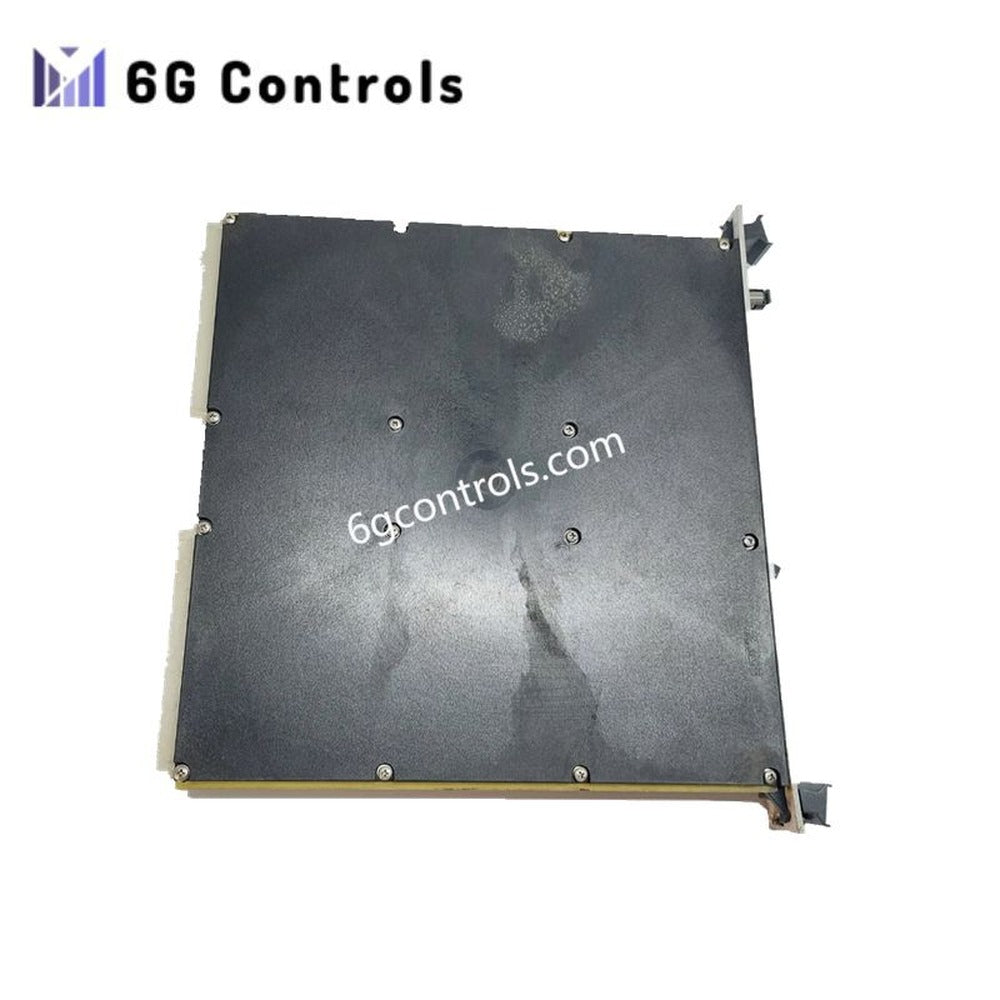

Woodward 5009-421 MicroNet Discrete I/O Field Termination Module

Overview

The Woodward 5009-421 is a MicroNet-series Field Termination Discrete I/O Module engineered to manage high-reliability discrete signal interfacing in critical control systems. It acts as the connection layer between field wiring and MicroNet controllers, delivering dependable relay output control, fault-tolerant operation, and extensive communication capabilities.

Designed for turbine, generator, and power-plant control architectures, this module supports demanding operational environments where system availability and fault detection are essential.

Key Functional Capabilities

The 5009-421 module provides discrete output control using onboard relay channels with integrated diagnostic monitoring. Latent relay fault detection enables early identification of relay degradation, supporting preventive maintenance strategies and reducing unplanned downtime.

Multiple Ethernet and serial communication interfaces allow seamless integration into complex MicroNet and TMR (Triple Modular Redundant) configurations, ensuring deterministic data exchange across control networks.

Technical Specifications

Electrical Characteristics

• Supply Voltage Range: 18–32 V DC
• Nominal Operating Voltage: 24 V DC
• Current Consumption: Approximately 650 mA at nominal voltage
• Discrete Outputs: 12 electromechanical relay outputs
• Relay Monitoring: Latent fault detection supported

Communication Interfaces

• Ethernet: 6 × 10/100Base-T ports
• Serial Ports: RS-232, RS-422
• Protocol Support: Independent Modbus communication links

Mechanical Characteristics

• Form Factor: Field Termination Module
• Dimensions: 305 mm (H) × 356 mm (W) × 152 mm (D)
• Weight: 1.82 kg
• Mounting: Panel-mounted within MicroNet system cabinets

Environmental Conditions

• Operating Temperature Range: 0 °C to 40 °C

System Integration Role

Within a MicroNet control architecture, the 5009-421 functions as a high-density discrete output interface, distributing relay-based control signals to external devices while maintaining system-level fault tolerance. It is commonly deployed in MicroNet legacy CPU platforms and TMR systems where relay power behavior and diagnostic visibility are critical.

Typical Applications

• Steam and gas turbine control systems
• Generator protection and synchronization systems
• Power generation and energy management platforms
• Safety-critical industrial control environments requiring relay diagnostics

FAQ

Q: Is the 5009-421 compatible with MicroNet TMR systems? A: Yes. The module is frequently used in TMR configurations and supports relay monitoring functions relevant to redundant system designs.

Q: Does this module handle inputs as well as outputs? A: This model is primarily focused on discrete relay outputs and field termination rather than high-density digital input acquisition.
