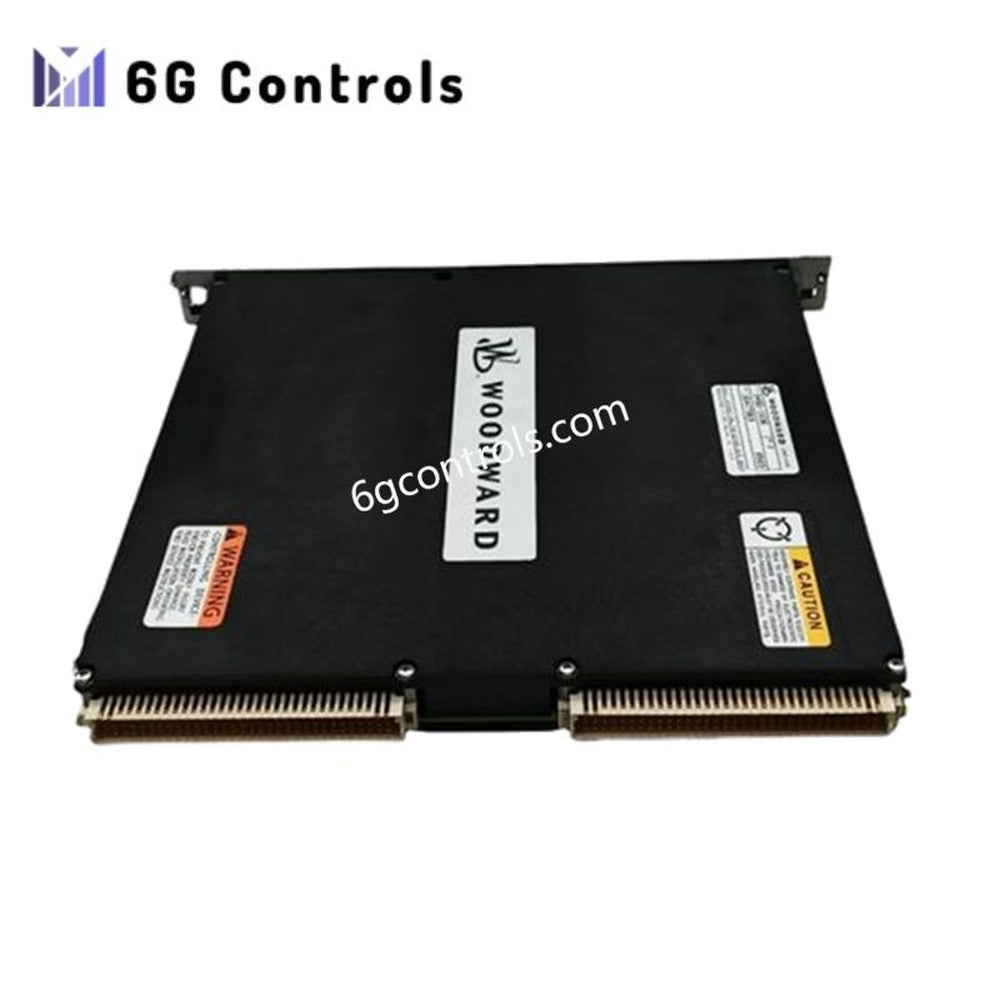

Woodward 5501-214 Digital Input & Control Module

Product Overview

The 5501-214 digital input and control module from Woodward is designed for high-availability turbine, generator, and safety-related control architectures. This module supports both discrete signal acquisition and control functions, depending on the configured system platform. It is frequently deployed in speed governor installations, turbine supervisory control, and high-integrity safety systems where deterministic response and continuous diagnostics are mandatory.

The hardware is engineered for harsh industrial environments and supports online replacement, ensuring uninterrupted operation in mission-critical applications.

Module Functionality

Depending on system integration, 5501-214 operates in one of the following roles:

• Digital input interface for field status and protection signals
• Digital and analog mixed I/O control module for turbine and generator regulation
• Trusted digital input module within ICS Triplex TMR safety architectures

The module design emphasizes signal integrity, fault detection, and predictable timing behavior under continuous load.

Electrical and I/O Characteristics

The 5501-214 supports multiple I/O configurations depending on the control platform variant.

Power Supply

• Nominal supply range: 24 to 30 VDC
• Reverse polarity and transient protection integrated

Digital Input Capability

• Input levels: 24 VDC or 48 VDC (system-dependent)
• Optical and galvanic isolation per channel
• Isolation withstand: up to 2500 V impulse
• Sequence of Events resolution: 1 ms
• Continuous self-diagnostics with fault reporting

Control I/O Configuration

• Analog inputs: up to 4 channels
• Analog outputs: up to 2 channels
• Digital inputs: up to 8 channels
• Digital outputs: up to 8 channels

All I/O channels are designed for deterministic response and stable long-term signal accuracy.

Mechanical and Environmental Specifications

• Form factor: rack-mounted control module
• Dimensions: 260 × 100 × 25 mm
• Weight: 1.5 kg
• Operating temperature range: –40 °C to +85 °C
• Designed for vibration-resistant industrial enclosures
• Hot-swappable during system operation

System Architecture and Diagnostics

• Compatible with TMR (Triple Modular Redundant) safety configurations
• Continuous channel monitoring and internal self-test routines
• Fault isolation and status reporting to supervisory systems
• Designed to meet high-availability control and safety standards

Typical Applications

• Steam and gas turbine control systems
• Generator speed and load governing
• Safety-related digital input acquisition
• ICS Triplex Trusted TMR safety platforms
• Industrial control systems requiring precise event timing

Frequently Asked Questions

Is the 5501-214 suitable for safety-critical systems? Yes. When used within Trusted TMR architectures, the module supports high-integrity digital input processing with redundancy and fault tolerance.

Can the module be replaced without shutting down the system? Yes. The hardware supports online replacement, allowing maintenance without interrupting operation.

Does the module support mixed I/O? Depending on the platform configuration, the 5501-214 can handle both analog and digital I/O within a single module.
