Product Description

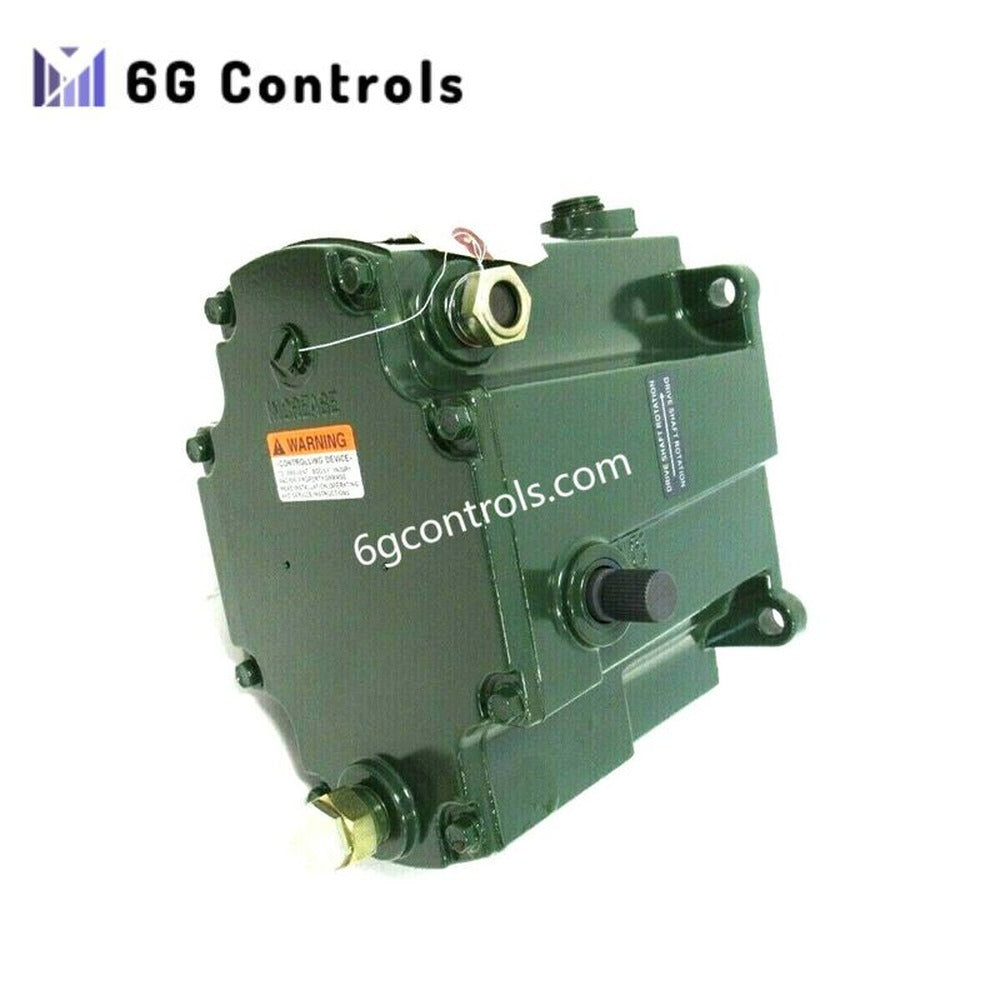

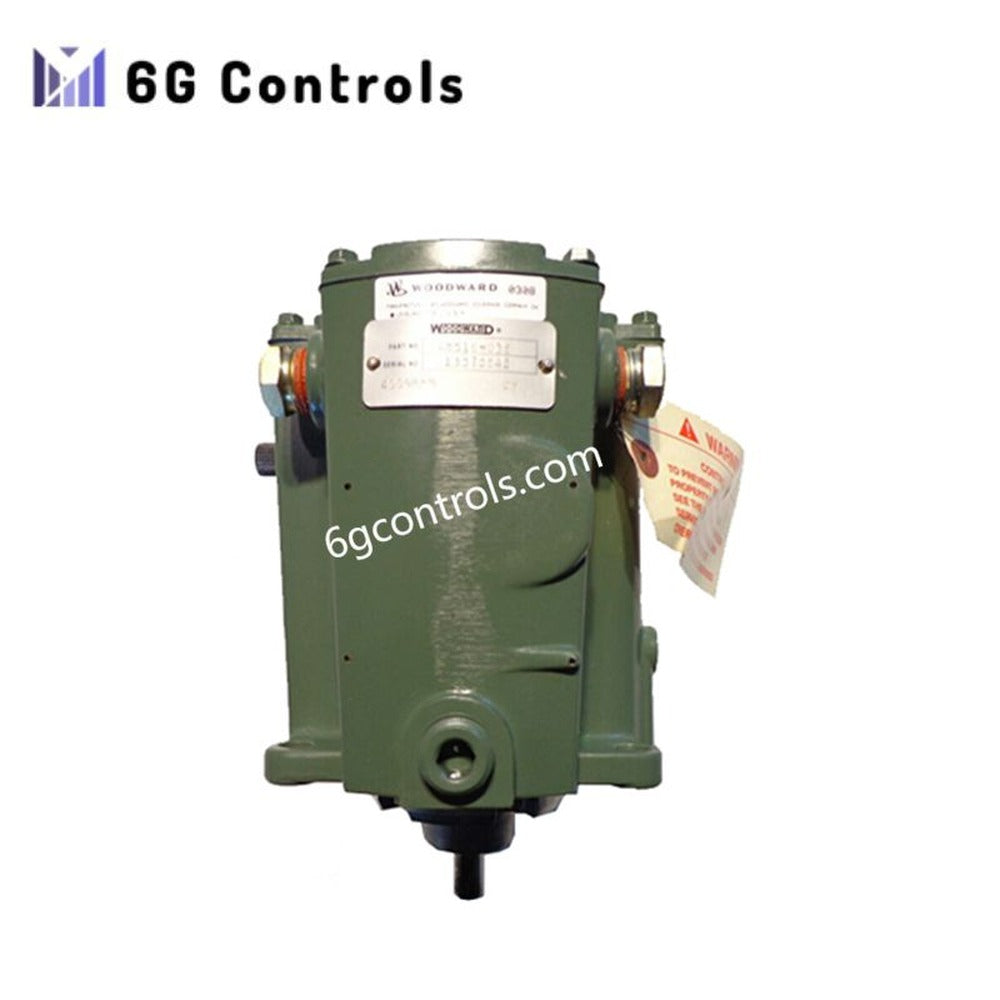

The Woodward 8561-882 PSG Governor is a precision mechanical-hydraulic speed control device engineered for Detroit Diesel engines operating in marine propulsion systems, industrial equipment, and standby or prime power generators. By using a pressure-sensitive hydraulic control mechanism, the governor continuously regulates fuel rack position to maintain stable engine speed despite load fluctuations.
Designed for durability and long operational life, the PSG series governors are widely applied in heavy-duty diesel environments where consistent speed regulation and reliable mechanical control are essential.
The 8561-882 model integrates a compact hydraulic control assembly with robust mechanical linkages, allowing accurate fuel control and dependable performance even under demanding operating conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8561-882 |
| Product Series | PSG Governor |
| Manufacturer | Woodward |
| Control Type | Mechanical-Hydraulic Speed Governor |
| Operating Principle | Pressure-Sensitive Hydraulic Regulation |
| Speed Control Function | Automatic fuel rack adjustment for constant engine speed |
| Compatible Engines | Detroit Diesel 6V-53, 6V-71, 6V-92, 8V-71, 8V-92 |
| Speed Stability | High precision mechanical regulation |
| Mounting Type | Direct engine mounting with mechanical linkage |
| Construction | Hardened steel and precision hydraulic components |
Key Operational Characteristics
The PSG governor architecture uses a hydraulic control chamber that reacts to engine speed variations. When load conditions change, the governor automatically adjusts the fuel rack position through a mechanical linkage system. This ensures that the engine maintains its preset operating speed.
Key engineering advantages include:
• Stable mechanical speed regulation without electronic components • High durability for continuous operation in marine and industrial environments • Compatibility with multiple Detroit Diesel V-series engines • Compact design suitable for direct installation on engine control assemblies • Reliable performance in environments with vibration and temperature variation
Typical Application Environments
The Woodward 8561-882 governor is commonly installed in diesel power systems that require dependable mechanical speed control.
Typical applications include:
• Marine propulsion and auxiliary engines • Industrial pump and compressor drive systems • Standby and continuous-duty diesel generators • Construction and heavy machinery power units
Installation and Maintenance Notes
Correct alignment between the governor output shaft and the engine fuel control rack is essential for proper operation. Installation should follow Woodward’s official PSG governor service manual.
Routine maintenance recommendations include:
• Inspection of mechanical linkages for wear or misalignment • Periodic checking of hydraulic components and seals • Verification of speed adjustment calibration during scheduled engine servicing
Proper installation and maintenance ensure long-term stability and accurate engine speed regulation.
FAQ
What engines are compatible with the 8561-882 PSG governor? The governor is designed for several Detroit Diesel V-series engines, including 6V-53, 6V-71, 6V-92, 8V-71, and 8V-92 configurations.
Does this governor require electronic control integration? No. The PSG series uses a purely mechanical-hydraulic system and does not require electronic control modules.
Can the governor maintain speed during sudden load changes? Yes. The pressure-sensitive hydraulic mechanism responds to load variation and adjusts fuel delivery to maintain the preset engine speed.
