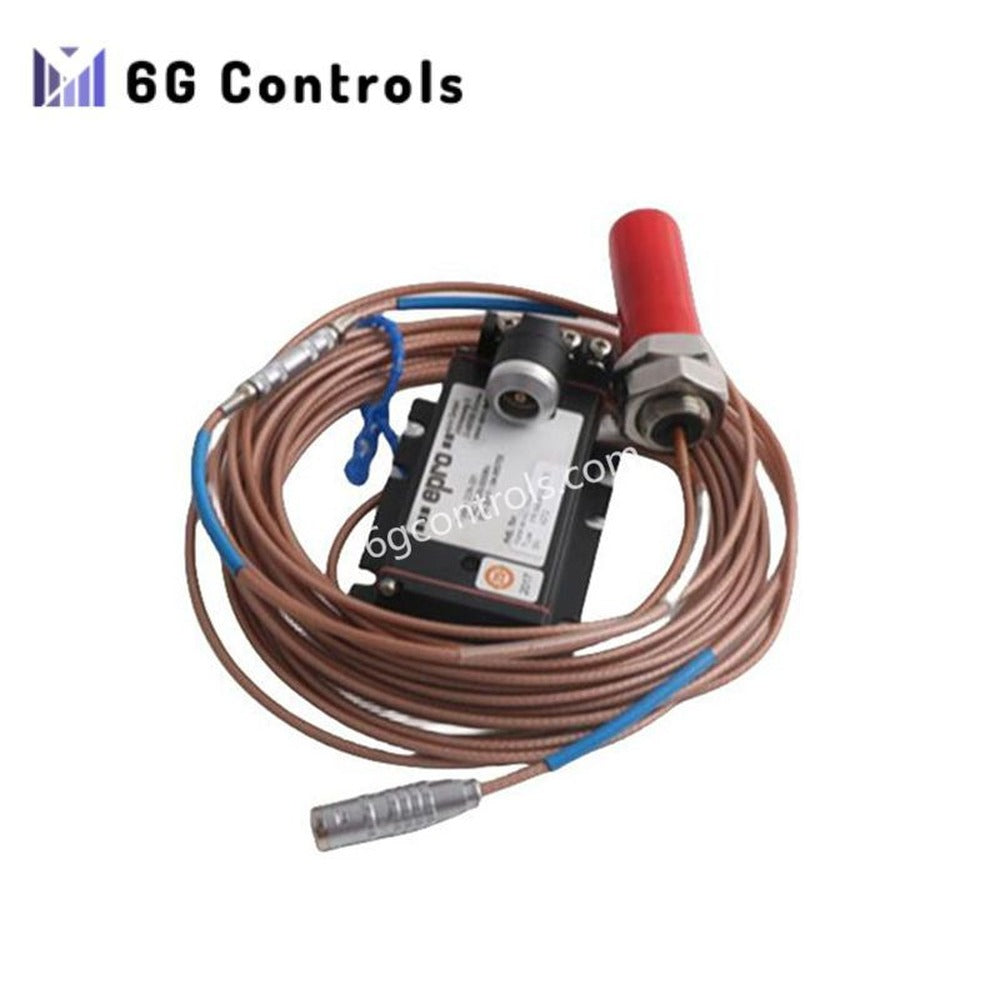

EPRO CON021+PR6423/003-030 Eddy Current Sensor System

Overview

The EPRO CON021 + PR6423/003-030 is a high-performance eddy current sensor system. It precisely measures displacement, vibration, and shaft position in critical machinery. Operators commonly use it with turbines, compressors, and pumps in industrial environments. Moreover, the system ensures reliable and accurate monitoring under demanding conditions.

Technical Specifications

CON021 Eddy Current Signal Converter

• Frequency Range: It covers 0 to 20,000 Hz efficiently.

• Rise Time: The converter achieves a rise time of less than 15 μs.

• Power Supply Voltage: It operates between -23V to -32V DC steadily.

• Output Voltage Range: It provides an output of -4V to -20V DC.

• Operating Temperature: It functions reliably from -30°C to +100°C.

• Protection Class: The converter meets IP20 protection standards.

• Certifications: It holds CE, ATEX, IECEx, and CSA approvals.

PR6423/003-030 Eddy Current Sensor

• Measurement Range: It measures from 0 mm to 10 mm precisely.

• Resolution: The sensor offers a resolution of 1 μm.

• Linearity Error: It maintains a linearity error of only ±0.5% FSO.

• Repeatability: The sensor achieves excellent repeatability at ±0.1 μm.

• Sensitivity Drift: It experiences a minimal drift of less than 0.05%/°C.

• Operating Temperature: It withstands environments from -40°C to +85°C.

• Output Signal: It delivers either analog voltage (0-10V) or current (4-20mA).

• Probe Diameter: The probe has a compact diameter of 8 mm.
