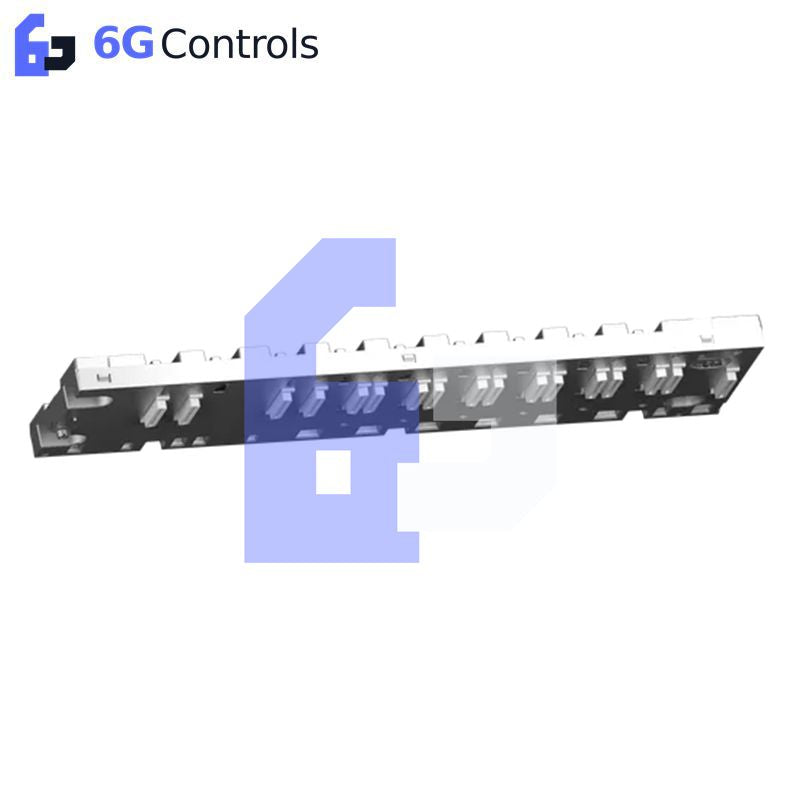

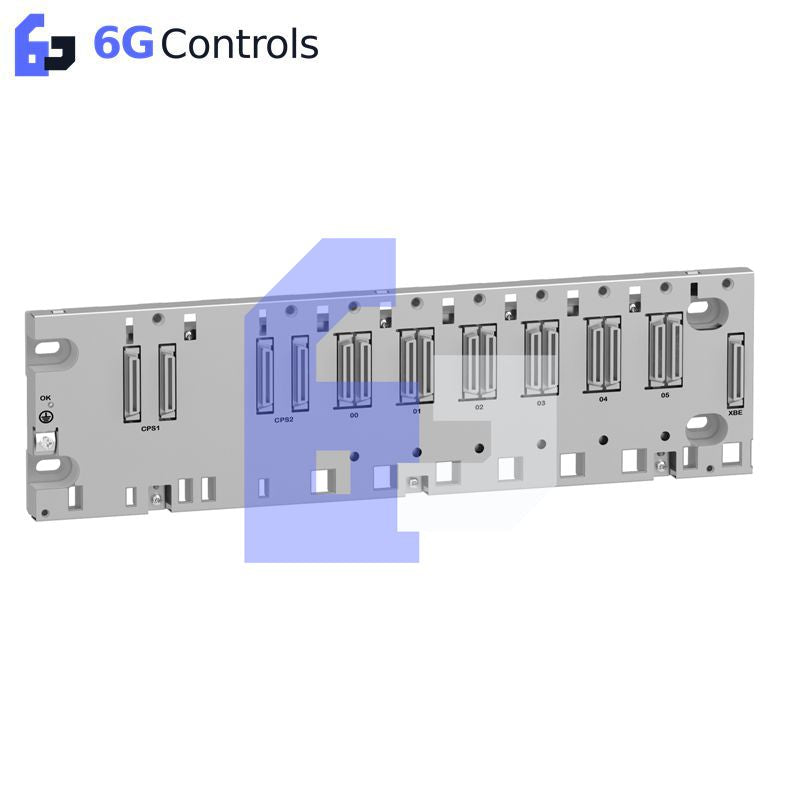

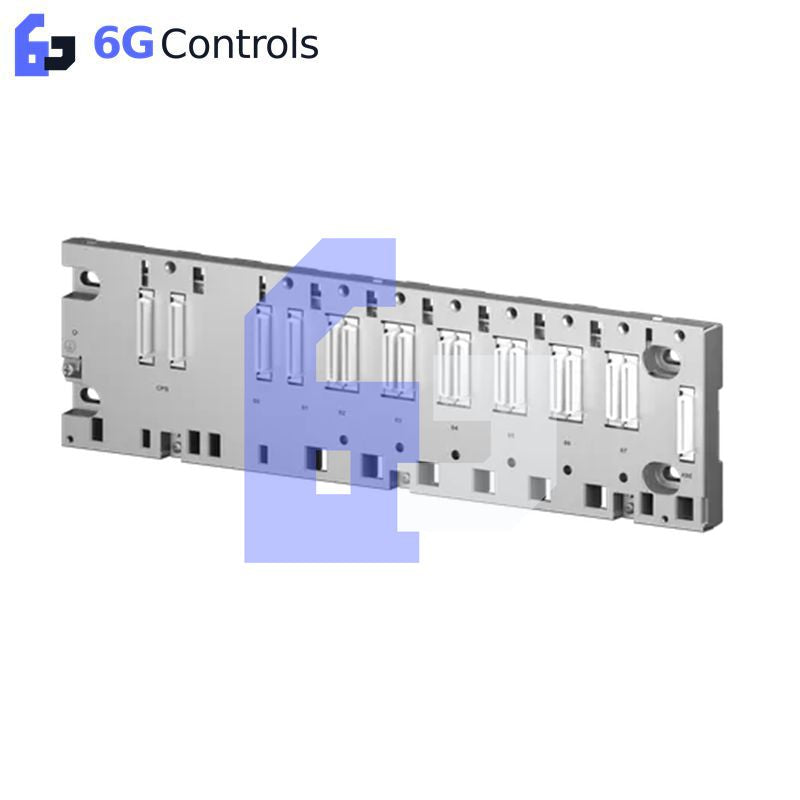

Schneider Electric BMEXBP0602 Modicon X80 Ethernet Backplane Rack

Configured for in-rack Ethernet and X-bus communication, the Schneider Electric BMEXBP0602 (BMEXBP0602 Modicon X80 Ethernet backplane rack) provides physical bus connections for mixed modules within Modicon M340 and Modicon M580 architectures. The rack provides 6 slots with Ethernet and X-bus connectors and supports an XBE expansion connection.

Hardware Specifications

Ethernet and X-Bus Backplane Characteristics

BMEXBP0602 provides six physical module positions with Ethernet and X-bus connectivity for mixed Modicon X80 modules. The backplane is shared across Modicon M340 and Modicon M580 architectures, allowing compatible BMX and BME processors and I/O modules to be installed on the same platform.

The backplane incorporates one XBE connector for electrical connection to an expansion module. Its electrical load is specified as 152 mA at 24 VDC and 58 mA at 3.3 VDC. The rack supports hot swapping for most compatible I/O modules, subject to the module and system configuration requirements.

The mounting structure supports panel installation, plate mounting, and 35 mm symmetrical DIN rail mounting. The IP20 enclosure rating requires installation inside an appropriate protective enclosure when higher environmental protection is required.

Frequently Asked Questions

Q: How many module positions are provided by BMEXBP0602?
A: The rack provides 6 module slots with Ethernet and X-bus connections.

Q: What is the backplane current consumption?
A: The specified current consumption is 152 mA at 24 VDC and 58 mA at 3.3 VDC.

Q: Does BMEXBP0602 support hot swapping?
A: The supplied product data specifies hot swap capability for most compatible I/O modules. Actual hot-swap operation depends on the installed module and PAC configuration.

Field Installation Guidelines

Install the rack on a mechanically stable panel, plate, or 35 mm symmetrical DIN rail using the specified mounting method. Maintain correct alignment of the backplane connectors before inserting modules.

Verify the 24 VDC and 3.3 VDC backplane load against the available system power budget. Keep Ethernet, control, and power wiring routed according to the installation requirements of the complete Modicon X80 system.

For shielded communication cables, terminate cable shielding according to the system grounding design and avoid unnecessary parallel routing with high-current or high-noise conductors. Do not install or remove modules while power is applied unless the specific module and system documentation permits hot swapping.

The IP20 rating does not provide protection against water, dust ingress beyond the applicable enclosure conditions, or direct environmental exposure. Install the rack inside the required control enclosure and maintain the specified 0 to 60 deg C operating range.
