Woodward 8200-1331 Micronet Control I/O Module

Product Description

The Woodward 8200-1331 is an industrial electronic control and I/O interface module developed for high-availability turbine, engine, and generator control systems. Designed within the Micronet / Netcon architecture, this module provides deterministic real-time signal acquisition, conditioning, and communication between field instrumentation and Micronet control processors.

Engineered for continuous operation in harsh environments, 8200-1331 integrates analog and discrete I/O handling, embedded diagnostics, and multi-protocol communications. Depending on system configuration, it may also be integrated with local display and keypad interfaces for commissioning, monitoring, and parameter adjustment.

While some distributors associate this unit with HMI-centric solutions, its primary function remains high-speed control I/O within distributed Woodward control platforms.

Core Control Architecture

The 8200-1331 is built around a real-time 32-bit control processor optimized for deterministic execution. Control tasks are processed in fixed execution cycles to ensure predictable response in critical speed, load, and protection loops.

Typical control scan times are on the order of milliseconds, enabling precise regulation of turbines, generators, and auxiliary systems where timing accuracy is essential.

Input / Output Capabilities

This module supports mixed-signal processing for both continuous and discrete field signals commonly found in rotating equipment control systems.

Analog input channels support industry-standard current loops with high-resolution conversion suitable for pressure, temperature, speed, and position feedback. Analog outputs provide stable current drive for actuators and control elements.

Discrete I/O points are configurable for monitoring contacts, alarms, and command signals, allowing flexible adaptation to different plant architectures.

Human-Machine Interface & Local Operation

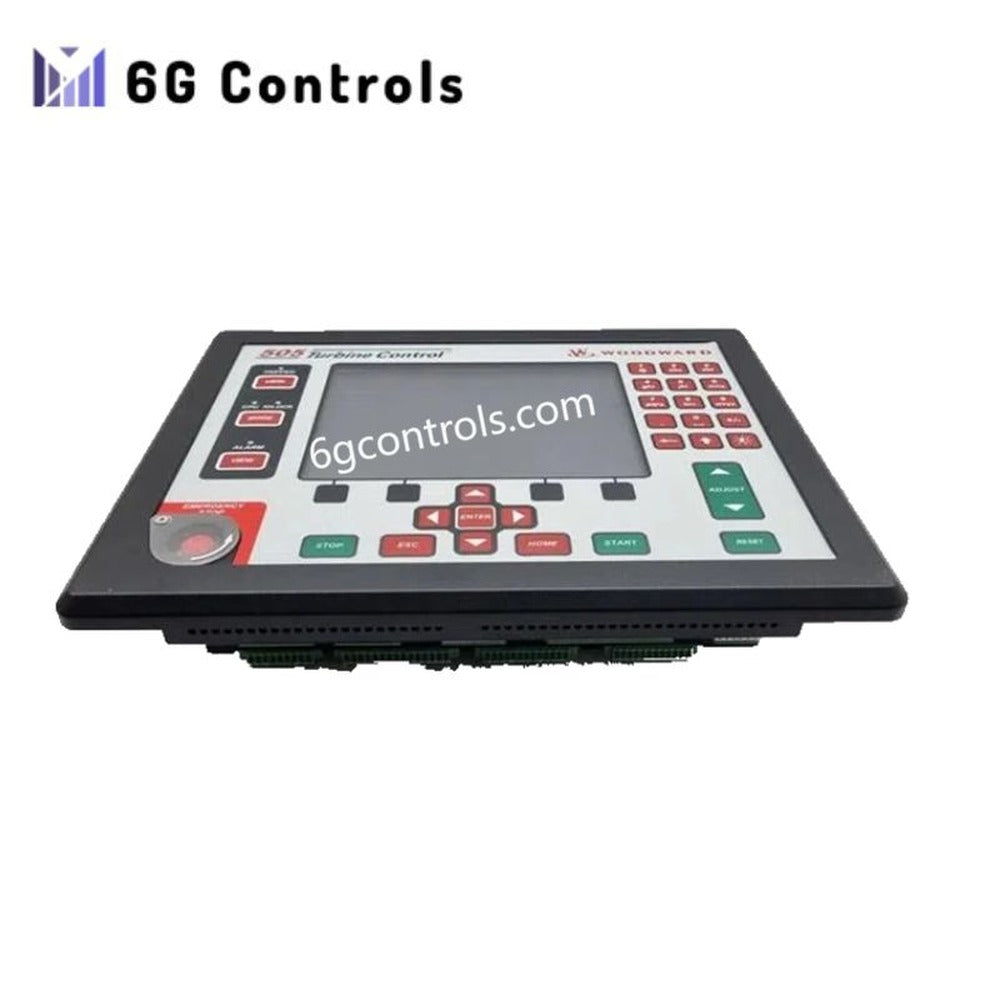

In certain Micronet configurations, 8200-1331 supports an integrated color display with keypad navigation. This interface allows operators and commissioning engineers to view system status, adjust parameters, and perform diagnostics without requiring external programming tools.

HMI functionality is configuration-dependent and typically implemented as part of a broader control panel or controller assembly.

Communication & Networking

The module supports multiple industrial communication standards to ensure seamless integration with supervisory systems, remote I/O, and plant networks. Ethernet connectivity enables high-speed data exchange using widely adopted industrial protocols, while serial and CAN-based interfaces support deterministic fieldbus communication in distributed control environments.

Power Supply & Environmental Ratings

Designed for low-voltage DC control cabinets, 8200-1331 operates from a wide 24 VDC input range and maintains stable performance under electrical and thermal stress. Its extended operating temperature range makes it suitable for both enclosed panels and demanding industrial locations.

Technical Specifications

Processing & Control

• Real-time 32-bit processor
• Deterministic control execution
• Typical control cycle: ~5 ms

Analog I/O

• Analog inputs: 8 channels, 4–20 mA
• Resolution: up to 16-bit
• Analog outputs: 4 channels, 4–20 mA

Discrete I/O

• Configurable discrete channels for status and control

Communication Interfaces

• Ethernet (Modbus TCP or equivalent)
• RS-485 serial communication
• CAN bus support

Power & Environment

• Supply voltage: 24 VDC nominal (wide-range tolerance)
• Power consumption: approximately 15 W
• Operating temperature: –40 °C to +70 °C

Software & Diagnostics

• IEC 61131-3 compliant logic support
• Continuous self-diagnostics for I/O, power, and communication
• Designed for modular and serviceable control systems

Typical Applications

The 8200-1331 is commonly deployed in:

• Steam and gas turbine control systems
• Generator excitation and load control
• Engine governing and protection systems
• Power generation balance-of-plant control
• Critical rotating equipment with real-time control requirements

Related & Comparable Modules

Within the Micronet / Netcon family from Woodward, the 8200-1331 is typically paired with Micronet CPU modules and may be compared functionally to other Micronet I/O interface units that differ in channel density, communication options, or environmental ratings.

FAQ

Is the 8200-1331 a standalone controller? No. It functions as an I/O and interface module within a Micronet or Netcon control system and requires a compatible CPU for control logic execution.

Does it always include an HMI display? HMI capability depends on system configuration. Some installations integrate local display and keypad functionality, while others use external operator stations.

Is the module suitable for safety-critical applications? Yes. It is designed for mission-critical control environments where deterministic timing, diagnostics, and reliability are required.
